About this item SFTO700XC-7026ACT2, High Brightness 1000 nits
7-Inch IPS TFT LCD Display
Upgrade your projects with our High Brightness 1000 nits 7-Inch IPS
TFT LCD Display. Offering a vibrant resolution of 1024 x 600 dots,
this display is designed to deliver crystal-clear images and vivid
colors, making it ideal for various applications such as industrial
machines, handheld devices, outdoor displays, and more.
Key Features:
- Exceptional Brightness: With a remarkable brightness of 1000 nits, this display ensures
visibility even under direct sunlight, making it perfect for
outdoor usage.
- High-Quality IPS Technology: The In-Plane Switching (IPS) technology provides wide viewing
angles and accurate color reproduction, enhancing the user
experience.
- RGB Interface: Features a reliable RGB interface that allows for easy integration
into your existing systems.
- Capacitive Touch Panel (CTP) Compatibility: The display is compatible with capacitive touch panel technology,
providing a responsive and intuitive user interaction.
- Versatile Applications: Ideal for use in a variety of sectors including automotive,
healthcare, industrial control, and consumer electronics.
Why Choose Our 7-Inch IPS TFT LCD Display?
This display is engineered for durability and performance, ensuring
long-lasting use in demanding environments. Whether you're
developing a prototype or a commercial product, the superior
brightness and quality make our display the ideal choice.
Specifications:
- Size: 7-Inch
- Resolution: 1024 x 600 pixels
- Brightness: 1000 nits
- Interface: RGB 50 pins
- Touchscreen interface: I2C
- Technology: IPS TFT
- Operating temperature: -30 degee to +75 degree
Enhance your product's functionality and aesthetics with our High
Brightness 7-Inch IPS TFT LCD Display. Order now and take the first
step toward delivering exceptional visual performance in your next
project!
Product Specification
| Feature | Specifications |
| LCD type | 7.0 inch |
| Resolution (H*V) | 1024(RGB) ×600 |
| Technology Type | a-Si TFT |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| Surface Treatment | Glare |
| Viewing Direction | All |
| Gray Scale Inversion Direction | No |
| OutlineDimensions (W x H x T) (mm) | 218.42* 146.9*9.55 |
| Active Area(mm) | 154.21*85.92 |
| With /Without Touch screen | With CTP |
| Match Connector Type | 50PIN 0.5PITCH |
| Backlight Type | LED |
| Interface | RGB |
| Number of color | 16.7M |
| Driver IC | HX8282A11 HX8696A01 |
| CTP IC | GT911 |
| CTP structure | G+G |
| CTP interface | I2C |
LCD External Dimensions

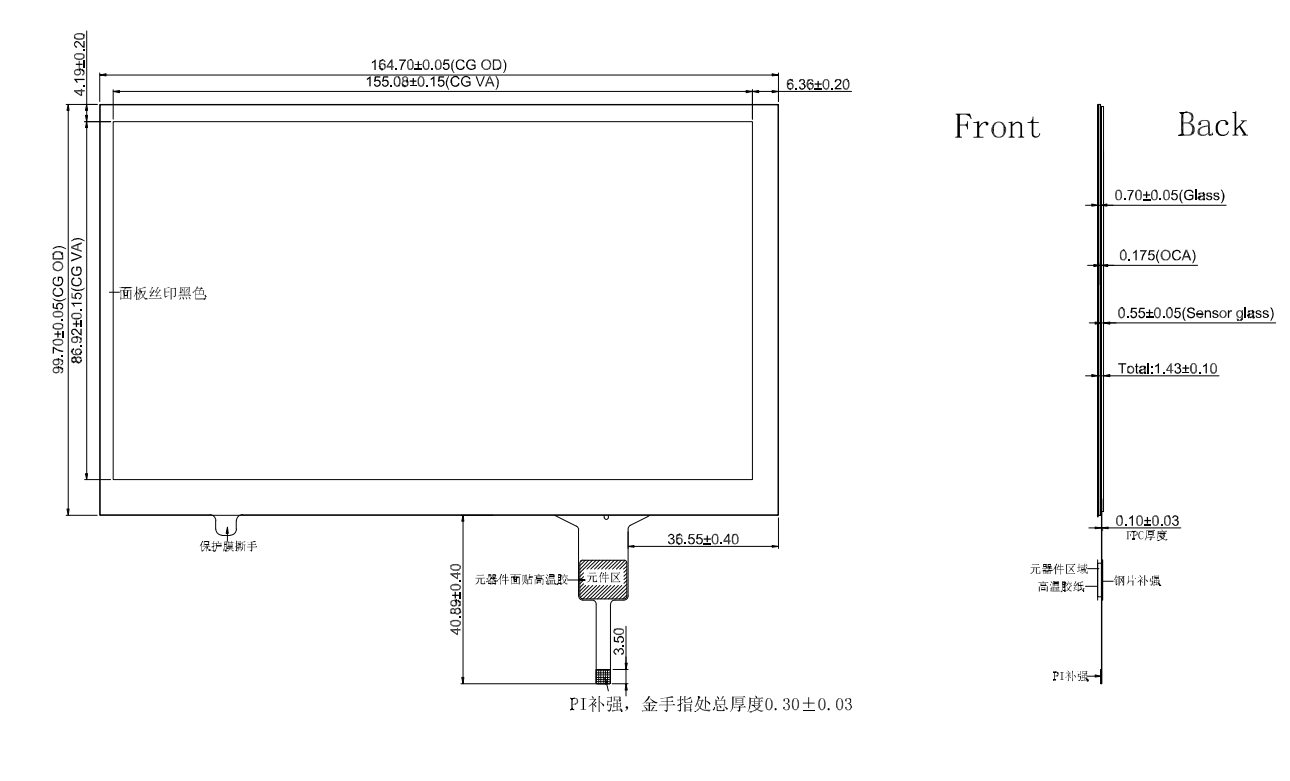

CTP External Dimensions
Interface Pin Definition
| NO. | PIN NAME | Description |
| 1 | LED-A1 | Power voltage for LED backlight Anode |
| 2 | LED-A2 | Power voltage for LED backlight Anode |
| 3 | LED-K1 | Power voltage for LED backlight Cathode |
| 4 | LED-K1 | Power voltage for LED backlight Cathode |
| 5 | GND | Power ground |
| 6 | VCOM | VCOM voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE or HV mode control.H:DE mode.L:HSD/VSD |
| 9 | DE | Data enable |
| 10 | VS | Vsync signal input |
| 11 | HS | Hsync signal input |
| 12 | B7 | BLUE Data Signal(MSB) |
| 13 | B6 | BLUE Data Signal |
| 14 | B5 | BLUE Data Signal |
| 15 | B4 | BLUE Data Signal |
| 16 | B3 | BLUE Data Signal |
| 17 | B2 | BLUE Data Signal |
| 18 | B1 | BLUE Data Signal |
| 19 | B0 | BLUE Data Signal(LSB) |
| 20 | G7 | GREEN Data Signal(MSB) |
| 21 | G6 | GREEN Data Signal |
| 22 | G5 | GREEN Data Signal |
| 23 | G4 | GREEN Data Signal |
| 24 | G3 | GREEN Data Signal |
| 25 | G2 | GREEN Data Signal |
| 26 | G1 | GREEN Data Signal |
| 27 | G0 | GREEN Data Signal(LSB) |
| 28 | R7 | RED Data Signal(MSB) |
| 29 | R6 | RED Data Signal |
| 30 | R5 | RED Data Signal |
| 31 | R4 | RED Data Signal |
| 32 | R3 | RED Data Signal |
| 33 | R2 | RED Data Signal |
| 34 | R1 | RED Data Signal |
| 35 | R0 | RED Data Signal(LSB) |
| 36 | GND | Power ground |
| 37 | DCLK | DOT CLOCK |
| 38 | GND | Power ground |
| 39 | L/R | Select left or right scanning direction. |
| 40 | U/D | Select up or down scanning direction. |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power voltage for Analog circuit. |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | VCOM | VCOM voltage |
47 | DITHB | Dithering function.H:6bit resolution(last 2bit of input data Truncated) L:8bit resolution (default setting) |
| 48 | GND | Power ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Electrical Characteristics
| Item | Symbol | Min | Type | Max | Unit | Test condition |
Power voltage | DVDD | 3.0 | 3.3 | 3.6 | V | - |
| AVDD | 9.4 | 9.6 | 9.8 | V | |
| VGH | 17 | 18 | 18.5 | V | |
| VGL | -7 | -6 | -5.5 | V | |
| Input signal voltage | VCOM | 3.1 | 3.3 | 3.5 | V | |
| Input logic high voltage | VIH | 0.7DVD D | - | DVDD | V | |
| Input logic low voltage | VIL | 0 | | 0.3DVDD | V | |
Current for Driver | IGH | - | 0.2 | 1 | mA | VGH= 16.0V |
| IGL | - | 0.2 | 1 | mA | VGL=7.0V |
| IDVDD | - | 4.0 | 1 | mA | DVDD=3.3V |
| IAVDD | - | 20 | 50 | mA | AVDD=10.4V |
Backlight Specification
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Current | IF | -- | 320 | - | mA |
| Forward Voltage | VF | 16.8 | 19.2 | 21 | V |
| Life time | | 40000 | 50000 | | H |
Optical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
View Angles | θT | CR≥10 | - | 80 | - | Degree |
| θ B | - | 80 | - |
| θ L | - | 80 | - |
| θ R | - | 80 | - |
| Contrast Ratio | CR | θ=0° | 700 | 800 | - | - |
| Response Time | TON | 25℃ | - | 30 | 40 | ms |
| TOFF |
| Uniformity | U | - | 70 | 80 | - | % |
| NTSC | - | - | - | 70 | - | % |
| Luminance | L | | - | 1000 | - | cd/m2 |
Product Image
