    High Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS Interface

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SFTO1210SH-7259AN
    Certification : ISO9001 / ISO14000
    Price : the lowest market price guaranteed
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    High Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS Interface


    High Brightness 1000nits 12.1 Inch IPS TFT LCD Display


    Elevate your visual experience with our 12.1 Inch High Brightness IPS TFT LCD Display. Designed for both clarity and performance, this display offers a remarkable brightness of 1000 nits, ensuring vibrant images even in bright environments. With a resolution of 1024x768 pixels, each detail comes to life, making it ideal for various applications including industrial control, medical devices, and outdoor signage.


    Key Features:

    • Exceptional Brightness: With a peak brightness of 1000 nits, enjoy stunning visuals in any lighting condition.
    • IPS Technology: Our In-Plane Switching (IPS) technology guarantees wide viewing angles and consistent color reproduction, enhancing your viewing experience from any perspective.
    • Resolution: A clear and crisp resolution of 1024x768 dots allows for fine detail and excellent picture quality.
    • LVDS Interface: The LVDS (Low-Voltage Differential Signaling) interface ensures high-speed data transfer, making it compatible with a wide range of systems and devices.
    • Versatile Applications: Perfect for industrial, medical, automotive, and commercial uses, this display is built for durability and reliability.

    Specifications:

    • Screen Size: 12.1 inches
    • Brightness: 1000 nits
    • Resolution: 1024x768 dots
    • Interface: LVDS
    • Touchscreen: Capacitive touch screen optional

    Upgrade your equipment with our High Brightness 12.1 Inch IPS TFT LCD Display—the ideal choice for superior visibility and performance. Whether you're developing advanced diagnostic tools or looking to enhance your product displays, this LCD screen meets your needs for reliability and quality.


    Order Now! Bring your projects to life with crystal-clear visuals and vibrant colors today!


    Features


    ITEMCONTENTSUNIT
    LCD TypeTFT / Transmissive / Normally Black
    Size12.1Inch
    Viewing Angle85/85/85/85
    Display ModeNomally Black
    LCD (W × H)260.48 × 204 × 7.2mm
    Active Area (W × H)245.76 × 184.32mm
    Dot Pitch (W × H)0.08 × 0.08mm
    Number of Dots (Pixels)1024 (RGB) × 768
    White Point (x,y) (Under C Light)X: 0.305, y: 0.347 (Typ.)
    Response Time≤35ms
    LCD Luminance1000 (typical)cd/m2
    Contrast Ratio1000:1 (Typ.)
    Interface TypeLVDS
    Colour Depth256K / 16.7M
    Pixel ArrangementRGB Stripe
    Surface TreatmentAG
    Operating Temp-20~70℃
    Storage Temp-30~80℃

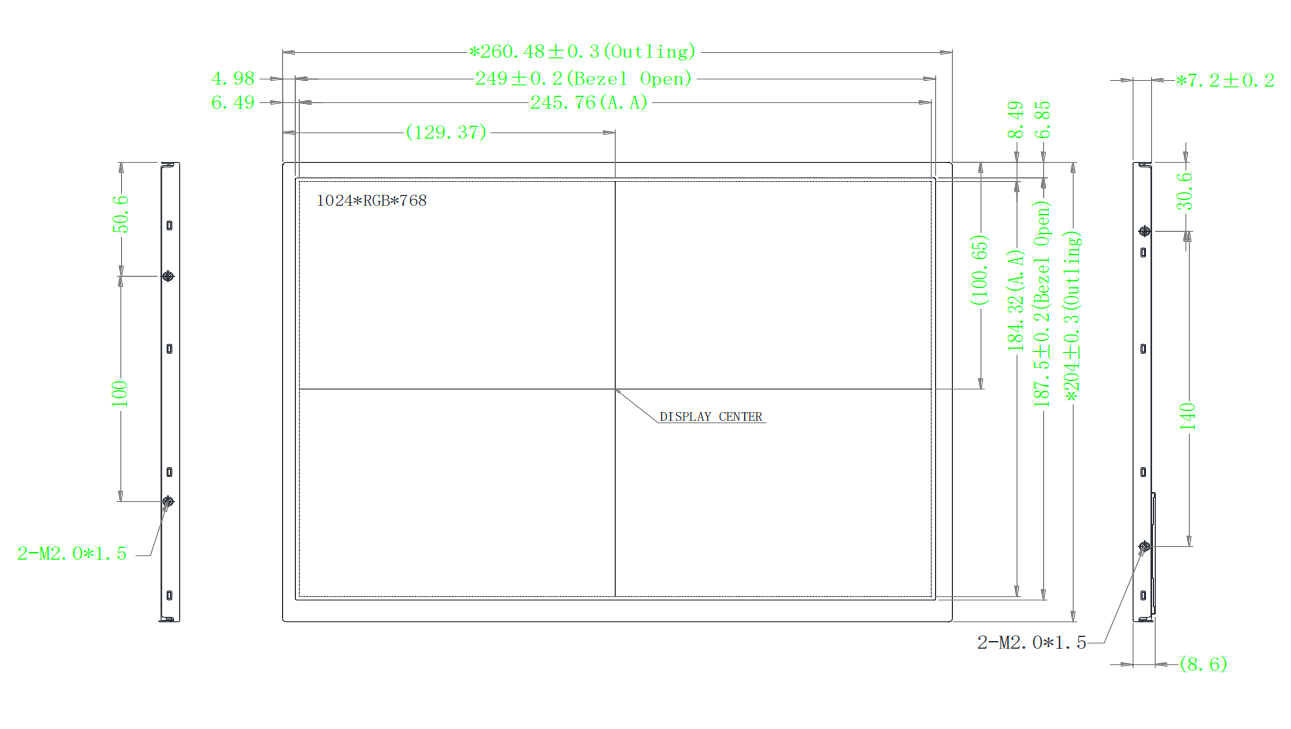

    External Dimensions



    Absolute Maximum Ratings


    PARAMETERSYMBOLMINMAXUNIT
    Power Supply VoltageVDD-0.33.8V
    LED_VCCS-0.325V
    Operating TemperatureTOP-2070°C
    Storage TemperatureTST-3080°C

    Backlight Specifications


    ITEMSYMBOLVALUESUNITREMARK
    MIN.TYP.MAX.
    Output PowerLED+232425VLED+ =24V @8S4P
    353637VLED+ =36V @11S4P
    Output Power CurrentILED1-~LED4-44.554545.45mA

    Total 180mA (Typ.) (45mA x

    4channel)


    Optical Characteristics


    ITEMSYMCONDITIONMINTYPMAXUNIT

    Viewing Angle Range

    θ

    		∅ = 90°8589-deg
    ∅ = 270°8589-deg
    ∅ = 0°8589-deg
    ∅ = 180°8589-deg

    Color

    Chromaticity

    (CIE1931)


    White

    		x

    X=0, Y=0 R=G=B=255 Grayscale

    -0.02

    		0.305

    +0.02

    -

    y0.347
    Center TransmittanceT%5.065.62-%
    Response TimeTr+Tf-2535ms
    Contrast RatioCr7001000--
    Response TimeTr+Tfx=0 , Y =0-2535ms

    Interface Pin Definition


    NO.SYMBOLDESCRIPTION
    1RX3+Differential Data Input, CH3 (Positive)
    2RX3-Differential Data Input, CH3 (Negative)

    3

    BIST

    Normal operation/BIST pattern select

    BIST=0: Normal operation

    BIST=1: BIST mode

    4

    SEL68

    		LVDS 6/8 bit select function control, SEL68=1: LVDS input data is 6 bit SEL68=0: LVDS input data is 8 bit
    5GNDGround
    6RXC+Differential Clock Input (Positive)
    7RXC-Differential Clock Input (Negative)
    8GNDGround
    9RX2+Differential Data Input, CH2 (Positive)
    10RX2-Differential Data Input, CH2 (Negative)
    11GNDGround
    12RX1+Differential Data Input, CH1 (Positive)
    13RX1-Differential Data Input, CH1 (Negative)
    14GNDGround
    15RX0+Differential Data Input, CH0 (Positive)
    16RX0-Differential Data Input, CH0 (Negative)

    17

    reLR

    Left or right display control LR=1: Left-->Right

    LR=0: Right--> Left

    18

    reUD

    Up or Down display control LR=1: Up-->Down

    LR=0: Down--> Up

    19VDDPower supply 3.3V
    20VDDPower supply 3.3V

    Product Image

    High Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS InterfaceHigh Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS Interface
