About this item SFTO085JY-7245AN
The Mini Square LCD 0.85 Inch 128x128 IPS TFT Display Module is a
compact and versatile display suitable for various applications,
particularly in small electronic devices. Here's a brief overview
of its features and specifications:
Features:
- Size: 0.85 inches diagonal.
- Resolution: 128x128 pixels, providing decent clarity for various
graphics and text.
- IPS Technology: In-Plane Switching (IPS) offers wider viewing
angles and better color reproduction compared to standard TFT
displays.
- Interface: Utilizes SPI (Serial Peripheral Interface) for
communication, which simplifies connection with microcontrollers
and other devices.
- Driver IC: Typically uses the GC9107 driver, which is specially
designed for driving small TFT displays.
- Pin Count: 12-pin configuration allows for compact integration into
designs.
- Power Requirements: Generally operates at low voltage, making it
suitable for battery-powered applications.
- Color Depth: Supports RGB color, enabling vibrant displays.
Applications:
- Wearable Technology: Due to its small size, it's ideal for
smartwatches and fitness trackers.
- IoT Devices: Displays status or alerts for Internet of Things
devices.
- Industrial Applications: Can be used in control panels or
measurement devices.
- Embedded Projects: Perfect for DIY electronics projects involving
microcontrollers (like Arduino or ESP32).
Usage:
To use this display module, you'll typically connect it to a
microcontroller or development board via SPI. Libraries are often
available for popular platforms (like Arduino) to help simplify the
coding process required to interface with the display.
Considerations:
- Contrast and Brightness: Ensure that the module is suitable for
your application's lighting conditions.
- Viewing Angles: While IPS technology enhances this aspect, check
for specific angles to ensure it meets your needs.
- Driver Support: Familiarize yourself with the library and functions
available for interacting with the GC9107 chip.
Conclusion:
The Mini Square LCD 0.85 Inch 128x128 IPS TFT Display Module is a
great choice for compact applications requiring a colorful, sharp
display. Remember to check for compatibility with your specific
microcontroller platform and consider power management in your
design.
General Specifications
| NO. | Item | Contents | Unit |
| 1 | LCD Size | 0.85inch(Diagonal) | - |
| 2 | Display Mode | Normally black | - |
| 3 | Resolution | 128(H)RGB x 128(V) | - |
| 4 | Dot pitch | 0.1188 (H) x 0.1188(V) mm | - |
| 5 | Active area | 15.2064(H) x 15.2064 (V) mm | - |
| 6 | Module size | 17.58(H) x 20.82(V) x1.5(D) mm | - |
| 7 | Color arrangement | RGB Vtertical stripe | - |
| 8 | Interface | SPI4 LINE | - |
| 9 | Drive IC | GC9107 | - |
| 10 | Luminance(cd/m2) | 260 (TYP) | |
| 11 | Viewing Direction | All View | |
| 12 | Backlight | 1 White LED | |
| 13 | Operating Temp. | -20℃~ + 70℃ | ℃ |
| 14 | Storage Temp. | -30℃~+ 80℃ | ℃ |
| 15 | Weight | TBD | g |
External Dimensions
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | LEDK | Cathode of Backlight |
| 3 | LEDA | Anode of Backlight |
| 4 | VDD | Power supply for Analog(2.8V-3.3V) |
| 5 | GND | Ground |
| 6 | GND | Ground |
7 | D/C | Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 8 | CS | Chip select pin(“Low” enable) |
| 9 | SCL | Serial clock pin. |
| 10 | SDA | Serial data input |
| 11 | RESET | LCM Reset pin |
| 12 | GND | Ground |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Logic Supply Voltage | IOVCC | -0.3 | 4.6 | V |
| Analog Supply Voltage | VCC | -0.3 | 4.6 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH | -- | 90%(Max60C) | RH |
Electrical Specification
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 | -- |
| Input Current | Idd | -- | 20 | -- | mA |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V |
| Forward Current | If | -- | 20 | -- | mA |
| Operating Life Time | -- | 30000 | 40000 | -- | Hrs |
Optical Specifications
| Item | Symbol | Measuring Conditions | Min. | Typ. | Max. | Unit |
| Response Time | Tr+Tf | θ = 0o φ = 0o | 25 oC |
- | 30 | 35 |
ms |
Viewing Angle |
θ | φ = 0o | 25 oC | - | 80 | - | Deg |
| | φ = 180o | 25 oC | - | 80 | - | |
|
θ | φ = 90o | 25 oC | - | 80 | - | |
| | φ =270o | 25 oC | - | 80 | - | |
| Contrast Ratio | CR | - | 25 oC | 800 | 1200 | - | - |
Color of CIE Coordinate | White | X | 25 oC | 0.300 | 0.302 | 0.304 | - |
| | Y | 25 oC | 0.323 | 0.325 | 0.327 | |
| Red | X | 25 oC | 0.622 | 0.624 | 0.626 | |
| | Y | 25 oC | 0.327 | 0.329 | 0.331 | |
| Green | X | 25 oC | 0.286 | 0.288 | 0.290 | |
| | Y | 25 oC | 0.520 | 0.522 | 0.524 | |
| Blue | X | 25 oC | 0.134 | 0.136 | 0.138 | |
| | Y | 25 oC | 0.135 | 0.137 | 0.139 | |
| Transmittance (with polarizer) | -- | -- | - | 3.5 | 4.5 | - | % |
Environmental / Reliability Test
| No. | Item | Conditions |
| 1 | High Temperature Operation | 70 C±2 C, 120 hrs |
| 2 | Low Temperature Operation | -20 C±2 C, 120 hrs |
| 3 | High Temperature Storage | 80 C±2 C, 120 hrs |
| 4 | Low Temperature Storage | -30 C±2 C, 120 hrs |
| 5 | High Temperature /Humidity Operation | 60 C±2 C, 90% RH, 120 hrs |
| 6 | Temperature Cycling | -10°C→25°C→60°C→25°C→-10°C 30min 5min 30min 5min 30min 10 cycle. |
7 |
Vibration Test | Total fixed amplitude:1.5mm. Vibration Frequerncy:10~55Hz One cycle 60 seconds to 3 direction of X,Y,Z each 15 minutes. |
| 8 | ESD Test | Air Discharge:Apple ±4KV with 5 times. |
| Contact Discharge:Apple ±2KV with 5 times. |
9 | Drop Test | |

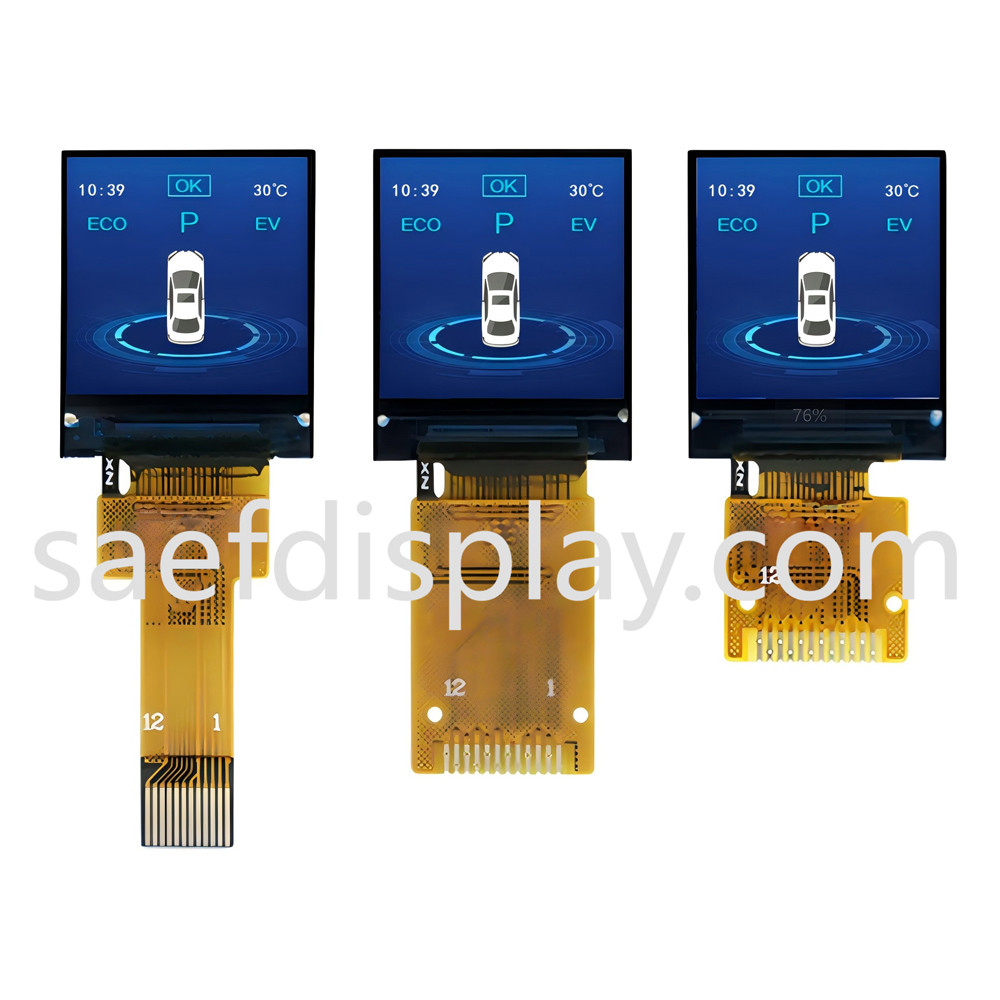

Product Image
