Datasheet Download
SFTO248XC-7204AN
Specification.pdf
About this item SFTO248XC-7204AN
Overview
The 2.48 Inch TFT LCD IPS Circular Display combines cutting-edge
technology with an attractive design, making it ideal for a wide
range of applications including wearables, smart home devices, and
other innovative electronic gadgets. With a round resolution of
480x480 pixels, this display delivers vibrant colors and sharp
images, providing users with an immersive visual experience.
Key Features
High-Resolution Display:
- The 480x480 round resolution ensures clarity and detail in every
image, making it perfect for displaying intricate graphics or
reading text.
IPS Technology:
- With In-Plane Switching (IPS) technology, this display offers wide
viewing angles and consistent color reproduction. Users can view
content from various angles without experiencing color distortion
or brightness loss.
Compact Size:
- The 2.48-inch size is optimal for compact devices. Its circular
form factor adds a modern touch, suitable for innovative designs.
Multiple Interface Support:
- Features a versatile 3SPI + 18RGB interface, making it compatible
with a range of microcontrollers and simplifying integration into
existing projects.
High Brightness and Contrast:
- With excellent brightness levels, the display maintains visibility
under various lighting conditions. This ensures that your content
remains vibrant, whether indoors or outdoors.
Rich Color Depth:
- The display supports a wide color gamut, providing users with
stunning visuals that enhance the overall experience.
Low Power Consumption:
- Designed for energy efficiency, this display minimizes power usage,
making it suitable for battery-operated devices.
User-Friendly Driver Support:
- Comes with driver libraries and examples, facilitating easy
integration and reducing development time for engineers and
hobbyists alike.
Applications
- Smartwatches and Fitness Trackers
- Automotive Dashboard Displays
- Home Automation Controllers
- Industrial Equipment
- Interactive Kiosks and Point of Sale (POS) Systems
Conclusion
The 2.48 Inch TFT LCD IPS Circular Display is a versatile and
powerful choice for designers and engineers looking to enhance
their products with a high-quality visual interface. Its compact
size, along with advanced features, makes it ideal for a variety of
cutting-edge applications. Embrace the future of display technology
with this remarkable circular TFT LCD.
Features
| Feature | Specifications |
Display Spec. | LCD type | 2.48 inch |
| Resolution (H*V) | 480(RGB)×480 |
| Technology Type | a-Si TFT |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Direction | ALL |
| Gray Scale Inversion Direction | - |
Mechanical Characteristics | Outline Dimensions (W x H x T) (mm) | 65.87*69.04* 1.85 |
| Active Area(mm) | 62.93*62.93 |
| CTP View Area(mm) | / |
| With /Without Touch screen | Without |
| Connector Type | 0.5 pitch 40pin |
| Backlight Type | LED |
| Weight (g) | TBD |
Electrical Characteristics | Display Interface | 3SPI+18RGB |
| Number of color | 262K |
| Display Driver IC | ST7701S |
| |
Mechanical Drawing
Pin Assignment
| 1 | LED A | LED ANODE |
| 2 | LED K | LED CATHODE |
| 3 | LED K | LED CATHODE |
| 4 | GND | Ground |
| 5 | VCI | Power supply |
| 6 | RESET | Reset Signal ,Active Low |
| 7 | NC | NC |
| 8 | NC | NC |
| 9 | SDA | SPI Data signal |
| 10 | SCK | SPI Clock signal |
| 11 | CS | SPI Chip select signal |
| 12 | PCLK | RGB dot clock signal |
| 13 | DE | RGB data enable signal |
| 14 | VSYNC | RGB frame synchronizing signal |
| 15 | HSYNC | RGB line synchronizing signal |
| 16~33 | DB0~DB17 | RGB data signal(DB0:BlUE LSB;DB5:BIUE MSB;DB6:GREEN
LSB;DB11:GREEN,MSB;DB12:RED LSB;DB17:RED MSB) |
| 34 | GND | Ground |
| 35 | TP_INT | Touch Interrupt |
| 36 | TP_SDA | Touch IIC Data signal |
| 37 | TP_SCL | Touch IIC Clock signal |
| 38 | TP_RESET | Touch Reset Signal |
| 39 | TP_VCI | Touch Power supply |
| 40 | GND | Ground |
ABSOLUTE MAXIMUM RATINGS
DC ELECTRICAL CHARACTERISTICS
BACKLIGHT UNIT CHARACTERISTICS

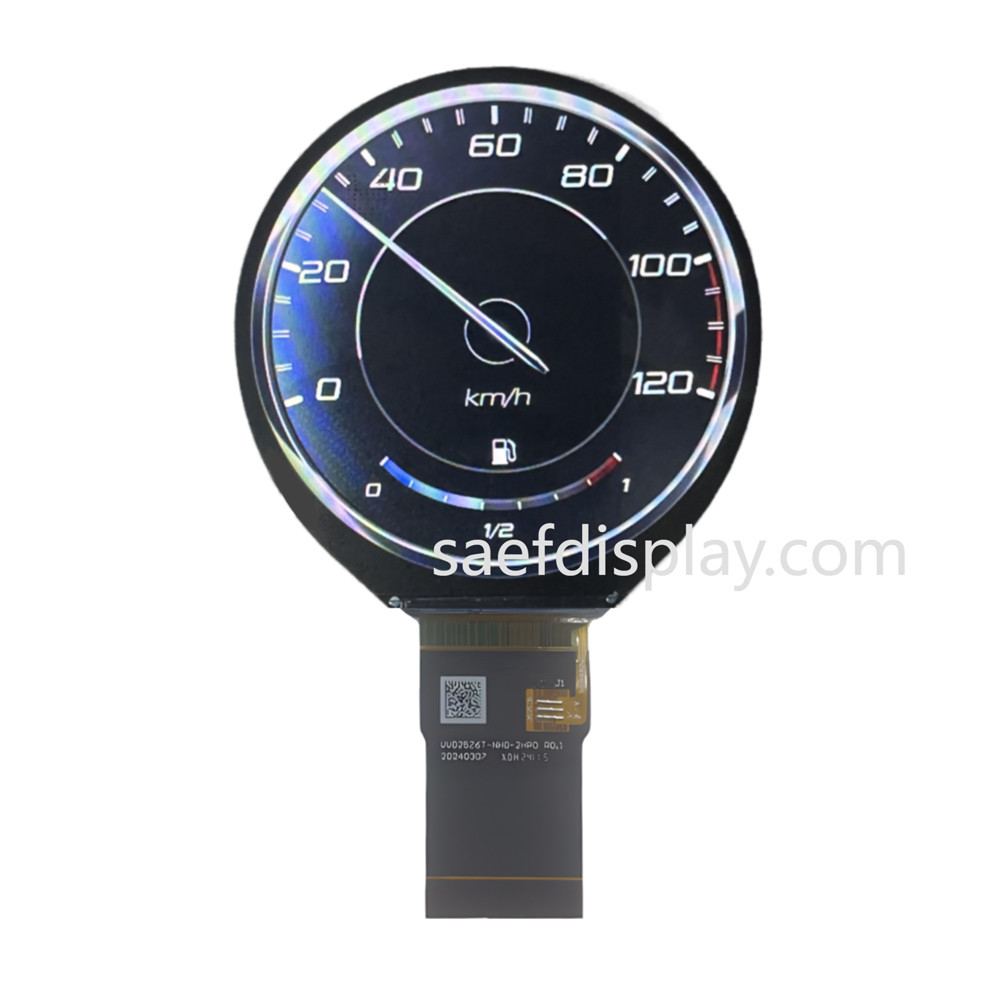

Automotive Grade 3.6-inch Circular TFT LCD Display Module Product Image
