About this item SFTO800BD-7218AN
Overview
Our 8-inch High Brightness TFT LCD display is designed to deliver
superior visual performance in challenging lighting conditions.
With an impressive brightness of 1200 nits and a full HD resolution
of 1920 x 1200 dots, this display is perfect for applications
requiring clarity and vibrancy. Its LVDS (Low-Voltage Differential
Signaling) interface ensures high-speed data transfer and optimal
image quality, making it suitable for various industrial,
commercial, and consumer applications.
Key Features
High Brightness: At 1200 nits, this display is exceptionally
bright, making it ideal for use in outdoor environments or well-lit
indoor spaces. It ensures excellent visibility even in direct
sunlight.
Full HD Resolution: With a resolution of 1920 x 1200 pixels, this
display provides sharp images and detailed visuals, enhancing the
overall user experience.
LVDS Interface: The LVDS interface allows for high-speed data
transmission with low power consumption. It supports a variety of
devices, ensuring versatile compatibility.
Wide Viewing Angles: The display offers wide viewing angles
(typically 160° horizontal and vertical), allowing for clear
visibility from various positions without color distortion.
Color Performance: With a high color gamut and excellent color
reproduction, the display is capable of displaying vibrant,
true-to-life images, making it suitable for multimedia
applications.
Durability: Designed for robustness, the TFT LCD is built to
withstand various environmental conditions. It is resistant to
impact and can operate effectively in challenging settings.
Easy Integration: The compact form factor and standard interfaces
make it easy to integrate the display into existing systems,
ensuring a seamless installation process.
Applications
Outdoor Displays: Ideal for kiosks, digital signage, and
information boards in outdoor settings, where visibility is
critical.
Industrial Control Panels: Suitable for monitoring systems,
equipment control, and automation interfaces that require clear and
reliable display performance.
Portable Devices: Perfect for handheld devices, tablets, and
portable multimedia players that benefit from high brightness and
excellent responsiveness.
Medical Equipment: Can be used in medical imaging devices and
diagnostic equipment, providing clear visuals necessary for
critical applications.
Conclusion
The 8-inch High Brightness TFT LCD display combines cutting-edge
technology, high performance, and versatility, making it an
excellent choice for a wide range of applications. Whether used in
outdoor environments or industrial settings, this display
guarantees visibility and reliability, enhancing user experience
and satisfaction.
Features
| Parameter | Specification | Unit | Remark |
| Outline Size | 181.7(H) ×119.8(V) ×5.5(T) | mm | FOG |
| Active Area | 172.224(H) ×107.640(V) | mm | Note 1.1 |
| Brightness | 1000-1200 | cd/m² | - |
| Number of Pixels | 1920(H)xRGB×1200 (V) | pixels | - |
| Pixel Pitch | 29.9(H) ×3×89.7(V) | μm | - |
| Pixel Arrangement | RGB Vertical Stripe | - | - |
| Display Colors | 16.7M | - | - |
| Color Gamut | 70%(Min.), 75% (Typ.) | | CF @C Light |
| Display Mode | Normally Black | - | - |
| Viewing Direction | 85/85/85/85 (Typ.) 80/80/80/80 (Min.) | Deg. | CR>=10 |
| Weight | TBD | gram | - |
| interface | 2-port LVDS( 8bit) | - | - |
| IC | FL5893DA | | Note 1.2 |
Note 1.1: H: horizontal length, V: vertical length.
Note 1.2: Compatible ICs for this product include FL5893DA, Please
contact IC manufacturer and vetify it when you choose any one of
them. The information we suppose about IC just for reference.
Mechanical Drawing
Pin Description
| No. | Symbol | Function | No. | Symbol | Function |
| 1 | VLED- | Power for LED backlighr (Cathode) | 24 | GND | ground |
| 2 | VLED- | Power for LED backlighr (Cathode) | 25 | OLV2P | LVDS differential data input Positive |
| 3 | VLED+ | Power for LED backlighr (Anode) | 26 | OLV2N | LVDS differential data input Negative |
| 4 | VLED+ | Power for LED backlighr (Anode) | 27 | GND | ground |
| 5 | NC | No connection | 28 | OLVCLKP | LVDS differential data input Positive |
| 6 | GND | ground | 29 | OLVCLKN | LVDS differential data input Negative |
| 7 | ELV3P | LVDS differential data input Positive | 30 | GND | ground |
| 8 | ELV3N | LVDS differential data input Negative | 31 | OLV1P | LVDS differential data input Positive |
| 9 | GND | ground | 32 | OLV1N | LVDS differential data input Negative |
| 10 | ELV2P | LVDS differential data input Positive | 33 | GND | ground |
| 11 | ELV2N | LVDS differential data input Negative | 34 | OLV0P | LVDS differential data input Positive |
| 12 | GND | ground | 35 | OLV0N | LVDS differential data input Negative |
| 13 | ELVCLKP | LVDS differential data input Positive | 36 | GND | ground |
| 14 | ELVCLK N | LVDS differential data input Negative | 37 | I2C _SDA | data input/output for I2C(please let these pins open.) |
| 15 | GND | ground | 38 | I2C _SCL | Clock signal for I2C(please let these pins open.) |
| 16 | ELV1P | LVDS differential data input Positive | 39 | VDD_OTP | Power supply for OTP circuit(please let these pins open.) |
| 17 | ELV1N | LVDS differential data input Negative | 40 | EEPEN | Only test Pin( please let these pins open.) |
| 18 | GND | ground | 41 | VDDIN | Power supply |
| 19 | ELV0P | LVDS differential data input Positive | 42 | VDDIN | Power supply |
| 20 | ELV0N | LVDS differential data input Negative | 43 | VDDIN | Power supply |
| 21 | GND | ground | 44 | VDDIN | Power supply |
| 22 | OLV3P | LVDS differential data input Positive | 45 | VDDIN | Power supply |
| 23 | OLV3N | LVDS differential data input Negative | | | |
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark |
Viewing Angle Range | Horizontal | Θ3 | CR > 10 | 80 | 85 | - | Deg. | Note 6.1 |
| Θ9 | 80 | 85 | - | Deg. |
Vertical | Θ12 | 80 | 85 | - | Deg. |
| Θ6 | 80 | 85 | - | Deg. |
| Contrast Ratio | CR |
Θ = 0 | 1000 | 1200 | - | | HC+APF Note 6.2/6.3 |
| Cell Transmittance | Tr | 3.8 | 4.5 | - | % |
Chroma@CIE1931 | Rx | Θ = 0 | 0.654 | 0.674 | 0.694 | | @C Light Note 6.4 |
| Ry | 0.302 | 0.322 | 0.342 | |
| Gx | 0.249 | 0.269 | 0.289 | |
| Gy | 0.582 | 0.602 | 0.622 | |
| Bx | 0.113 | 0.133 | 0.153 | |
| By | 0.095 | 0.115 | 0.135 | |
| Wx | 0.276 | 0.296 | 0.316 | |
| Wy | 0.318 | 0.338 | 0.358 | |
| Color Gamut | Θ = 0 | 70 | 75 | - | % |
| Response Time | Tr+Tf | Ta= 25 C Θ = 0 |
- | 30 | 35 | ms | Note 6.5 |
Reliability Test Parameters
| No | Items | Conditions |
| 1 | High Temperature Storage test(HTS) | 85℃ , 240hrs, Non-operational |
| 2 | Low Temperature Storage test(LTS) | -30℃ , 240hrs, Non-operational |
| 3 | High Temperature Operating test(HTO) | 85℃ , 240hrs, operational |
| 4 | Low Temperature Operating test(LTO) | -30℃ , 240hrs, operational |
| 5 | Thermal Humidity Operating test(THO) | 60℃/90%RH, 240hrs, operational |
| 6 | Thermal Cycle Storage test(TST) | -30~80℃ , 100cycles, 1hr/cycle, Non-operational |
7 |
Image Sticking | 5*5 Pattern, 1hr 25℃±2℃ check pattern Gray 127, after 3 min, the mura must be d isap peared completely |

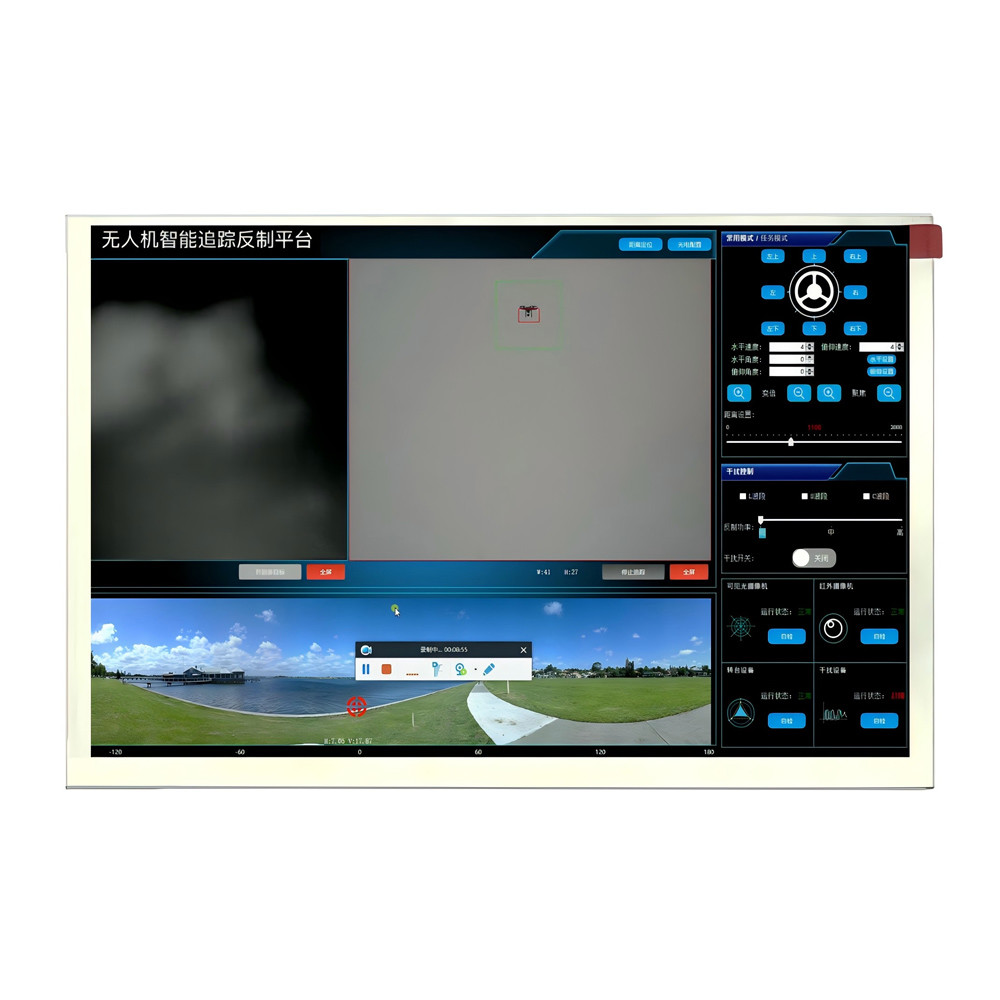

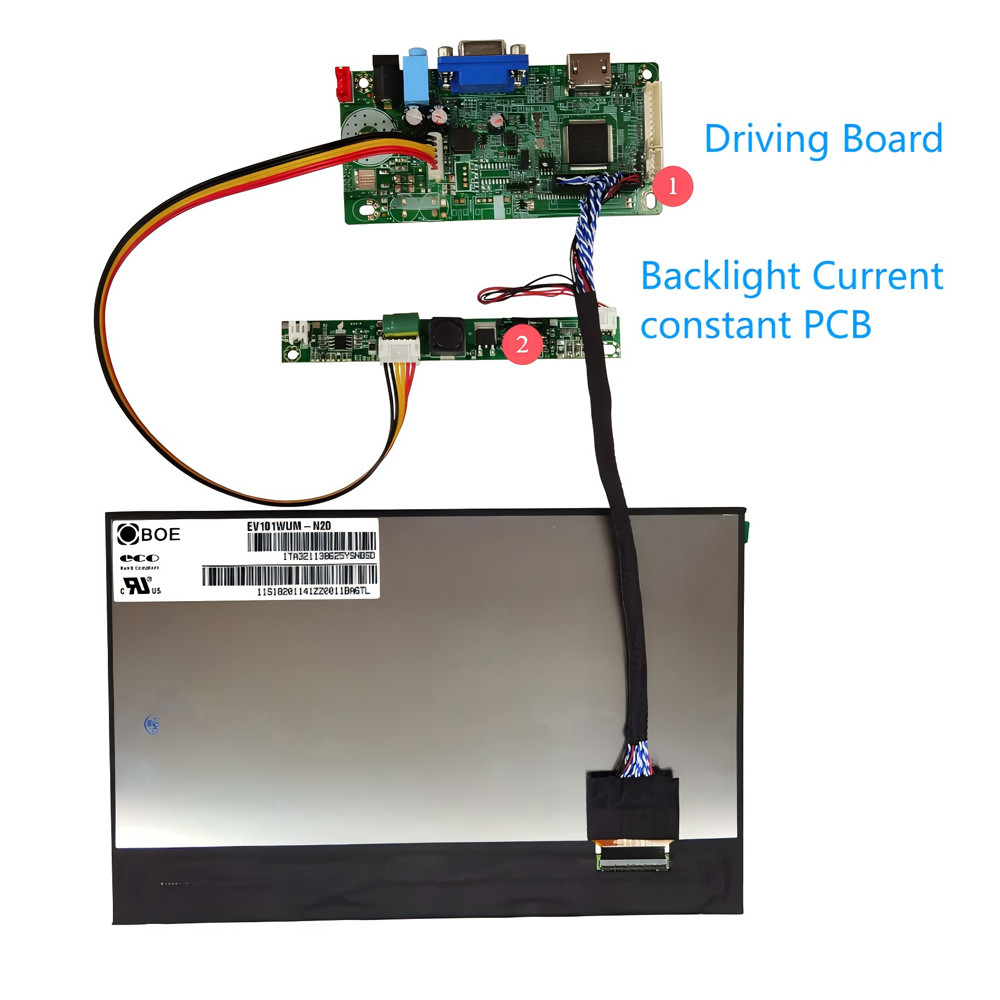

Product Image
