    11.9 Inch Bar TFT LCD Display MIPI Interface 1480 * 320 Resolution 800 Nits Brightness

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SFTO1190GX-7161AN
    Certification : ISO9001:2015 / ISO14000:2015
    Price : Negotiable based on order lot quantity
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    11.9 Inch Bar TFT LCD Display MIPI Interface 1480 * 320 Resolution 800 Nits Brightness

    Datasheet Download

    SFTO1190GX-7161AN Specification.pdf


    About this item SFTO1190GX-7161AN


    The 11.9-inch TFT LCD display features the following key specifications:

    • Screen Size: 11.9 inches
    • Resolution: 1480 x 320 pixels
    • Brightness: 800 nits
    • Interface: MIPI (Mobile Industry Processor Interface)
    • Color Depth: 16.7M

    Features and Benefits:

    1. Screen Size: The diagonal measurement of 11.9 inches makes it suitable for various applications, including industrial displays, handheld devices, and portable equipment.

    2. Resolution: With a resolution of 1480 x 320, the display is optimized for wide-screen applications, providing good clarity and detail, although it may not be as high as modern displays in terms of pixel density. The unique resolution ratio can be beneficial for specific UI layouts and graphics.

    3. Brightness: A brightness level of 800 nits ensures that the display is bright enough for use in various lighting conditions, including outdoor environments. This level of brightness is advantageous for readability and visibility.

    4. MIPI Interface: The use of the MIPI interface is common in modern displays as it allows for high-speed data transfer between the display and the controller, which is beneficial for reducing latency and improving overall performance.

    Potential Applications:

    • Industrial Monitors: Used in manufacturing and automation for machine controls or monitoring systems.
    • Mobile Devices: Can be employed in tablets, handheld devices, or portable gadgets where size and weight are critical.
    • Automotive Displays: Useful in car dashboards for displaying information in a compact form factor.

    Design Considerations:

    • Ensure compatibility with the device’s graphics output capabilities.
    • Evaluate the power requirements to ensure efficient operation, especially for battery-operated devices.
    • Consider the bezel design to maximize screen area while maintaining structural integrity.

    Conclusion:

    This type of display could serve a wide variety of applications thanks to its balanced specifications of size, resolution, brightness, and interface. When selecting a display for a specific project, it's essential to consider how these parameters align with the intended application and user requirements.


    Features


    No.ItemSpecificationUnit
    1Panel Size11.88 ”inch
    2Number of Pixels320(H) × 1480(V)pixels
    3Active Area57.984(H) × 268.176(V)mm
    4Pixel Pitch0.1812(H)×0.1812(V) x RGBmm
    5Outline Dimension65.00(W)×282.00(H)×4.50 (D)mm
    6Number of Colors16.7M-
    7Display ModeTransmission mode, normally black-
    8Viewing DirectionFull viewing-
    9Display FormatRGB vertical stripe-
    10Surface TreatmentGlare-
    11InterfaceMIPI-
    12BacklightWhite LED-
    13Operation Temperature-20~70
    14Storage Temperature-30~80
    15Weight120g

    Mechanical Drawing


    Pin Description


    No.SymbolFunction
    1GNDGround
    2D0PPositive MIPI differential data input
    3D0NNegative MIPI differential data input
    4GNDGround
    5D1PPositive MIPI differential data input
    6D1NNegative MIPI differential data input
    7GNDGround
    8CLKPPositive MIPI differential clock input
    9CLKNNegative MIPI differential clock input
    10GNDGround
    11D2PPositive MIPI differential data input
    12D2NNegative MIPI differential data input
    13GNDGround
    14D3PPositive MIPI differential data input
    15D3NNegative MIPI differential data input
    16GNDGround
    17IOVCGCN1D.8V-3.3V
    18IOVCC1.8V-3.3VA power supply for the analog power.
    19
    20NCNo connection
    21NCNo connection
    22NCNo connection
    23NCNo connection
    24RSTBReset pin.
    25STBYBStandby mode control.
    26NCNo connection
    27GNDGround
    28KLED Cathode
    29K
    30GNDGround
    31NCNo connection
    32GNDGround
    33GNDGround
    34NCNo connection
    35ALED Anode
    36A
    37GNDGround
    38VDD(3.3V)A power supply for the analog power.
    39VDD(3.3V)
    40NCNo connection

    Absolute Maximum Ratings


    ItemSymbolValuesUnit
    Min.Max.
    Digital Supply VoltageVCI-0.34.0V
    Digital Supply VoltageIOVCC-0.34.0V

    Operating Conditions


    ItemSymbolValuesUnit
    Min.Typ.Max.
    Digital Supply VoltageVDD3.03.33.6V
    Digital Supply VoltageIOVCC1.6-3.6V
    Logic Input VoltageVI H0.7VDD-VDDV
    VILGND-0.3VDDV

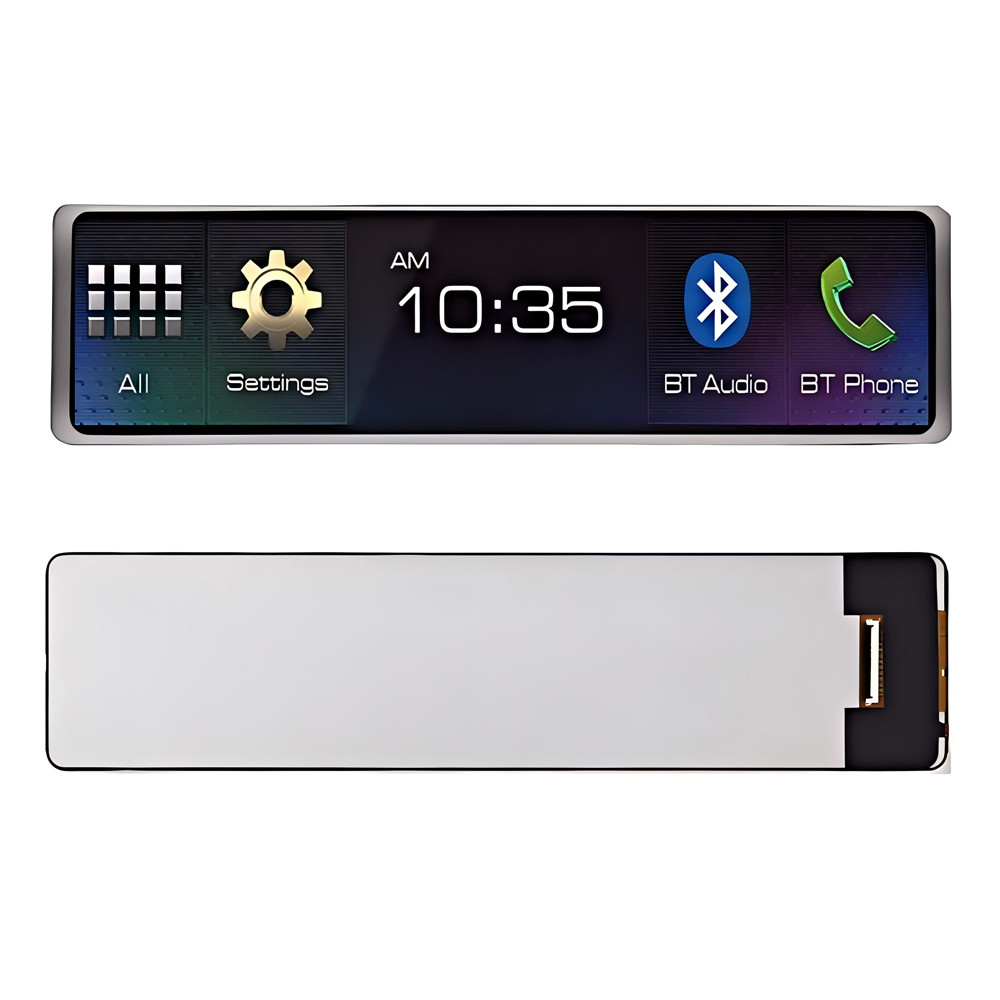

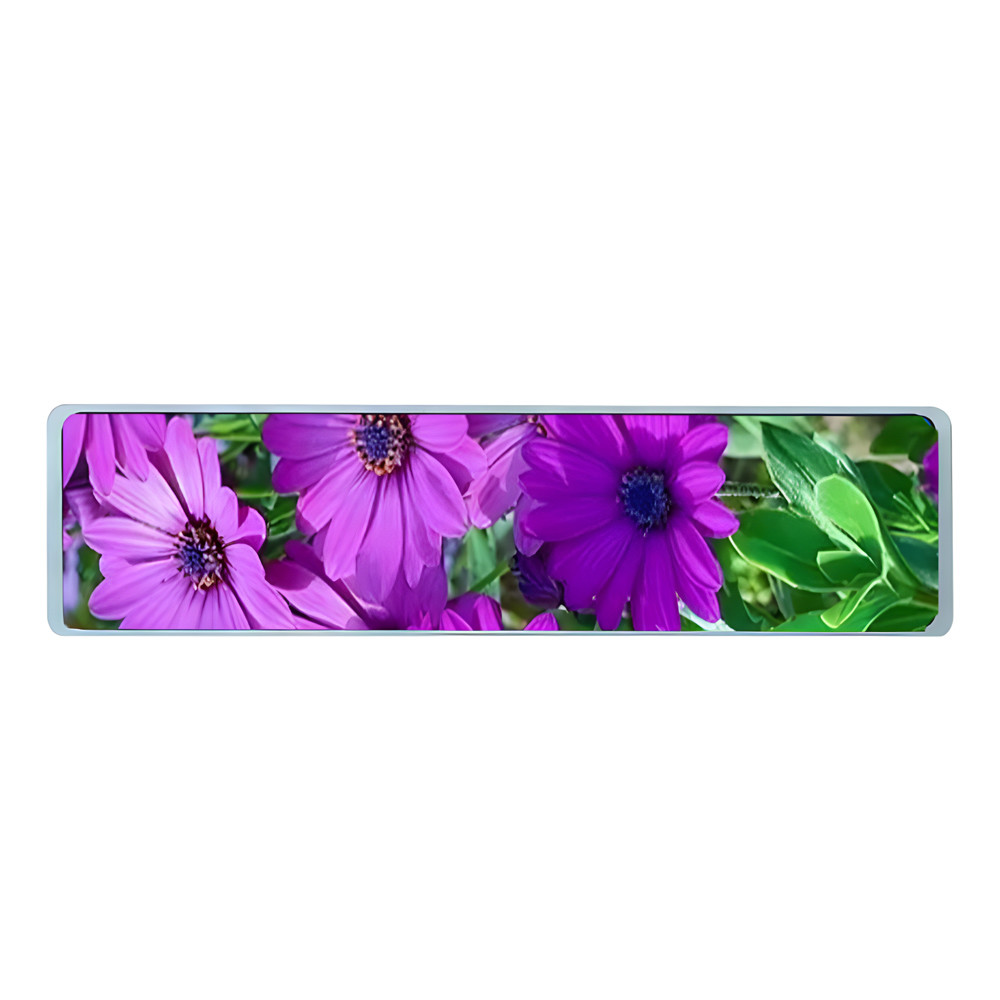

    Product Image

    11.9 Inch Bar TFT LCD Display MIPI Interface 1480 * 320 Resolution 800 Nits Brightness

    11.9 Inch Bar TFT LCD Display MIPI Interface 1480 * 320 Resolution 800 Nits Brightness11.9 Inch Bar TFT LCD Display MIPI Interface 1480 * 320 Resolution 800 Nits Brightness
