SFTO1130GX-7220AN Specification.pdf

About this item SFTO1130GX-7220AN

11.3-inch IPS TFT LCD display with a resolution of 440x1920 pixels, equipped with MIPI 4-channel interface, is a display module designed specifically for applications that require high-resolution and wide-angle display. The following is a detailed introduction of the product:

1. Using IPS (In Plane Switching) technology, it provides wide viewing angles and accurate color reproduction, ensuring that images remain clear and realistic when viewed from different angles. IPS technology typically provides higher contrast, making black darker, white brighter, and colors more vibrant.
2. The resolution is 440x1920 pixels, providing clear image and text display, especially suitable for applications that require high-resolution display.
3. MIPI (Mobile Industry Processor Interface) 4-channel interface, supporting high-speed data transmission, suitable for mobile devices and high-performance display applications.
4. The surface brightness of 520 nits ensures clear display under various lighting conditions.
5. The logic power supply voltage range is 2.8V-3.3V, typical voltage is 3V, ensuring stable power supply. Low power design, with power consumption less than 5 μ A in sleep mode, suitable for battery powered devices.
6. Suitable for various occasions such as retail, catering, hotel, medical, industrial control, etc., used as information display, advertising playback, or control panel.
7. Designed to meet industrial standards and capable of stable operation over a wide temperature range.

This 11.3-inch bar IPS TFT LCD display is an ideal choice for applications that require high-definition display and user interaction due to its high resolution, high brightness, and wide viewing angle characteristics.

Features

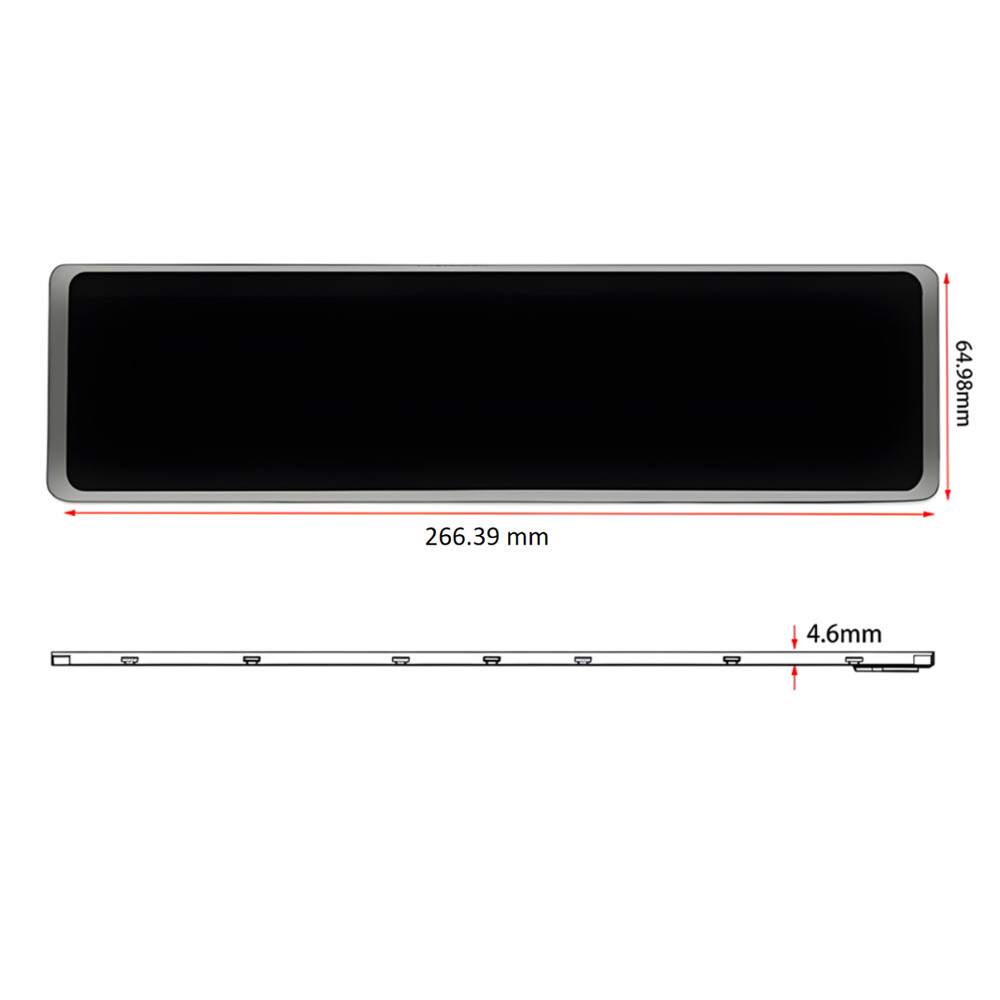

Mechanical Drawing

Pin Description

PIN No.	SYMBOL	Function
1	GND	Ground
2	DSI-D0P	DSI Data differential signal input pins. (Data lane0)
3	DSI-D0N	DSI Data differential signal input pins. (Data lane 0)
4	GND	Ground
5	DSI-D1P	DSI Data differential signal input pins. (Data lane 1)
6	DSI-D1N	DSI Data differential signal input pins. (Data lane 1)
7	GND	Ground
8	DSI-CLK P	DSI CLOCK differential signal input pins
9	DSI-CLK N	DSI CLOCK differential signal input pins
10	GND	Ground
11	DSI-D2P	DSI Data differential signal input pins. (Data lane 2)
12	DSI-D2N	DSI Data differential signal input pins. (Data lane 2)
13	GND	Ground
14	DSI-D3P	DSI Data differential signal input pins. (Data lane 3)
15	DSI-D3N	DSI Data differential signal input pins. (Data lane 3)
16-17	GND	Ground
18-19	IOVCC (NC)	I/O Power supply (NC)
20-23	NC	NC
24	RESET	Reset Signal pin (“Low” is enable)
25-26	NC	NC
27	GND	Ground
28-29	LEDK	Backlight LED Cathode
30	GND	Ground
31	NC	NC
32-33	GND	Ground
34	NC	NC

Backlight Characteristics

White LED × 16 in Parallel/ Series (Ta = 25°C)

Product Image
