SFOS312YZ-7091AN
Specification.pdf

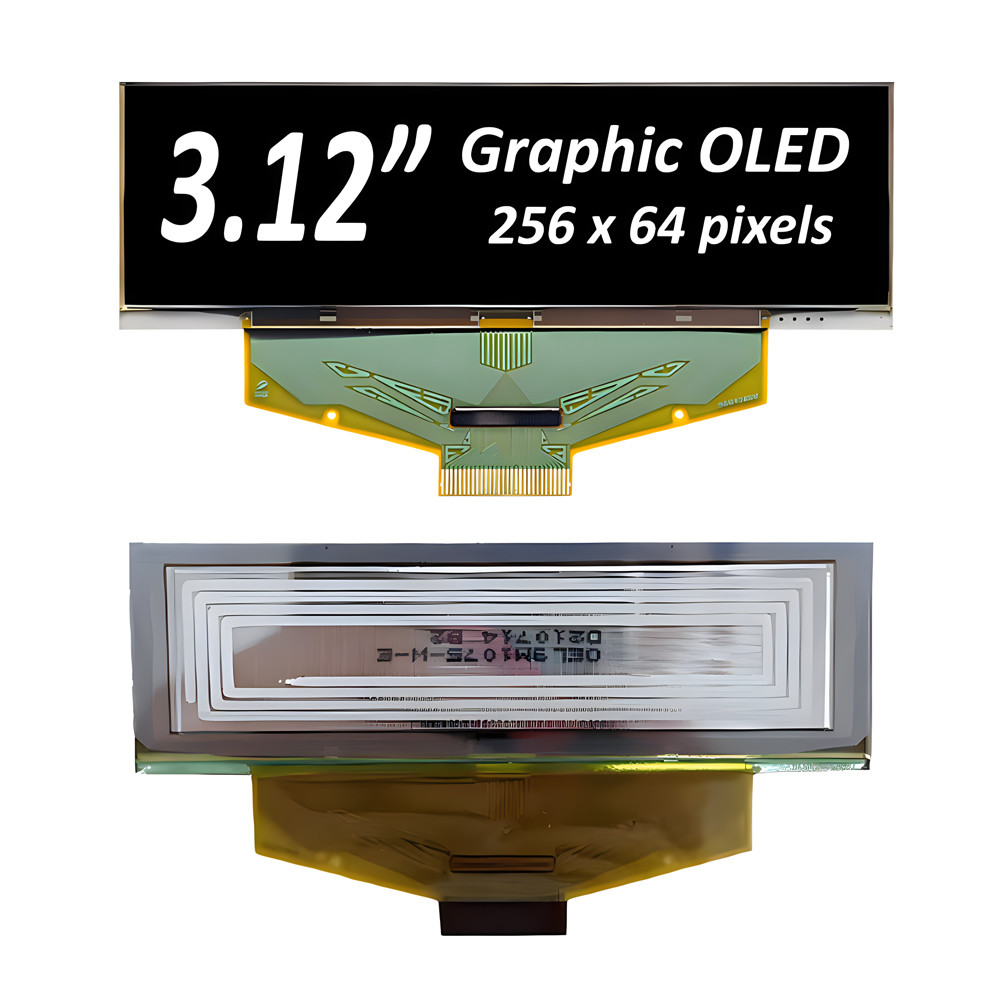

About this item SFOS312YZ-7091AN, SAEF's Industrial Grade 3.12 Inch OLED Display
Overview:
Introducing the SAEF Industrial Grade 3.12 Inch OLED Display, a
high-performance visual solution designed for industrial
applications, offering superior image quality, low power
consumption, and versatile interfacing options. With a resolution
of 256x64 pixels, this display is engineered to deliver crisp and
clear visuals in a compact form factor, making it ideal for various
industrial use cases.
Key Features:
High Resolution: The display boasts a resolution of 256x64 pixels, ensuring sharp
text and images for enhanced readability and visual appeal.
OLED Technology: Utilizing advanced OLED technology, this display provides
excellent contrast ratios, wide viewing angles, and vibrant colors
while consuming less power than traditional LCD displays.
Flexible Interfacing: The SAEF OLED display supports multiple interfaces including SPI,
Parallel, and I2C (30-pin COF connection). This versatility allows
easy integration into different systems and applications depending
on user needs.
Robust Design: Designed to meet industrial standards, the display is built for
durability and reliability, capable of withstanding harsh operating
conditions commonly found in industrial settings.
Compact Size: At 3.12 inches, it offers a small footprint, making it suitable
for tight spaces without compromising on performance.
Low Power Consumption: The energy-efficient design of the OLED display helps reduce
operational costs and prolongs the life of battery-powered devices.
Applications:
The SAEF's Industrial Grade OLED Display is ideal for a wide range
of applications including, but not limited to:
- Industrial control systems
- Medical equipment
- Point-of-sale systems
- Consumer electronics
- Automotive displays
- Robotics and automation
Conclusion:
The SAEF's Industrial Grade 3.12 Inch OLED Display combines
cutting-edge technology with robust engineering to provide a
reliable and high-quality display solution for various industrial
applications. With its high resolution, various interfacing
options, and durability, this display is the perfect choice for
developers and manufacturers looking to enhance their products with
modern display technology. Embrace the future of visual
communication with SAEF's innovative OLED display.
Features
| Product: | 3.12" Inch Passive OLED |
| Resolution: | 256x64 Pixels Resolution |
| Interface: | Parallel, SPI Optional |
| Display Mode: | Passive Matrix |
| Display Color: | White, Yellow |
| Optics: | All Viewing Angles |
| Active Area: | 76.78 (W) X 19.18 (H) |
| Outline Dim.: | 88.00 (W) X27.80 (H) |
| Pixel Pitch: | 0.30 (W) X 0.30 (H) |
| Operating Temp: | -40°C To +80°C |
| Storage Temp.: | -40°C To +85°C |
| Supply Voltage: | 2.4 - 3.5V |
| Module Connecting Type: | Plug-in Connection |
| Driver IC: | SSD1322 |
| Pin Number: | 30 Pins |
| IC Package Type: | COF |
| Duty: | 1/64 |
| Compliance: | REACH & RoHS Compliant |
Mechanical Drawing
Absolute Maximum Ratings
| Items | Min. | Max. | Unit | Remark |
| Supply Voltage(VDD) | -0.3 | +2.75 | V | IC maximum rating |
| Supply Voltage(VCI) | -0.3 | +4.0 | V | IC maximum rating |
| Supply Voltage(VCC) | -0.5 | +16.0 | V | IC maximum rating |
| Supply Voltage(VDDIO) | -0.5 | VCI | V | IC maximum rating |
| Operating Temperature(TOP) | -40 | 80 | ℃ |
|
| Storage Temperature(TST) | -40 | 85 | ℃ | Note 2 |

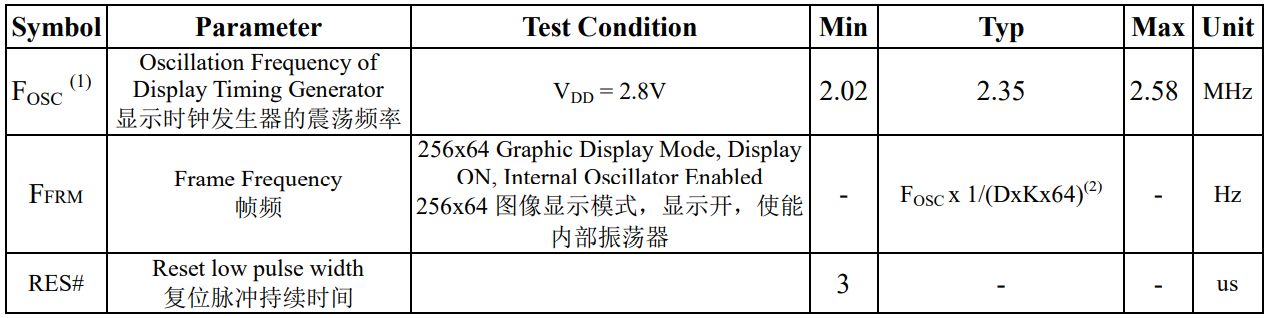

AC Characteristics
Electro-Optical Characteristics
| Items | Symbol | Min. | Typ. | Max. | Unit | Remark |
| Operating Luminance | L | 110 | 140 | - | cd /m2 | All pixels ON |
| Power Consumption | P | - | 260 | 325 | mW | 30% pixels ON |
| Frame Frequency | Fr | - | 100 | - | Hz | - |
Color Coordinate | Yellow | CIE x | 0.45 | 0.49 | 0.53 | CIE1931 | Darkroom |
| CIE y | 0.46 | 0.50 | 0.54 |
Response Time
| Rise | Tr | - | 10 | - | us | - |
| Decay | Td | - | 10 | - | us | - |
| Contrast Ratio | Cr | 10000:1 | - | - | - | Darkroom |
| Viewing Angle | △θ | 160 | - | - | Degree | - |
| Operating Life Time | Top | 33000 | - | - | Hours | L= 140 cd/m2 |
