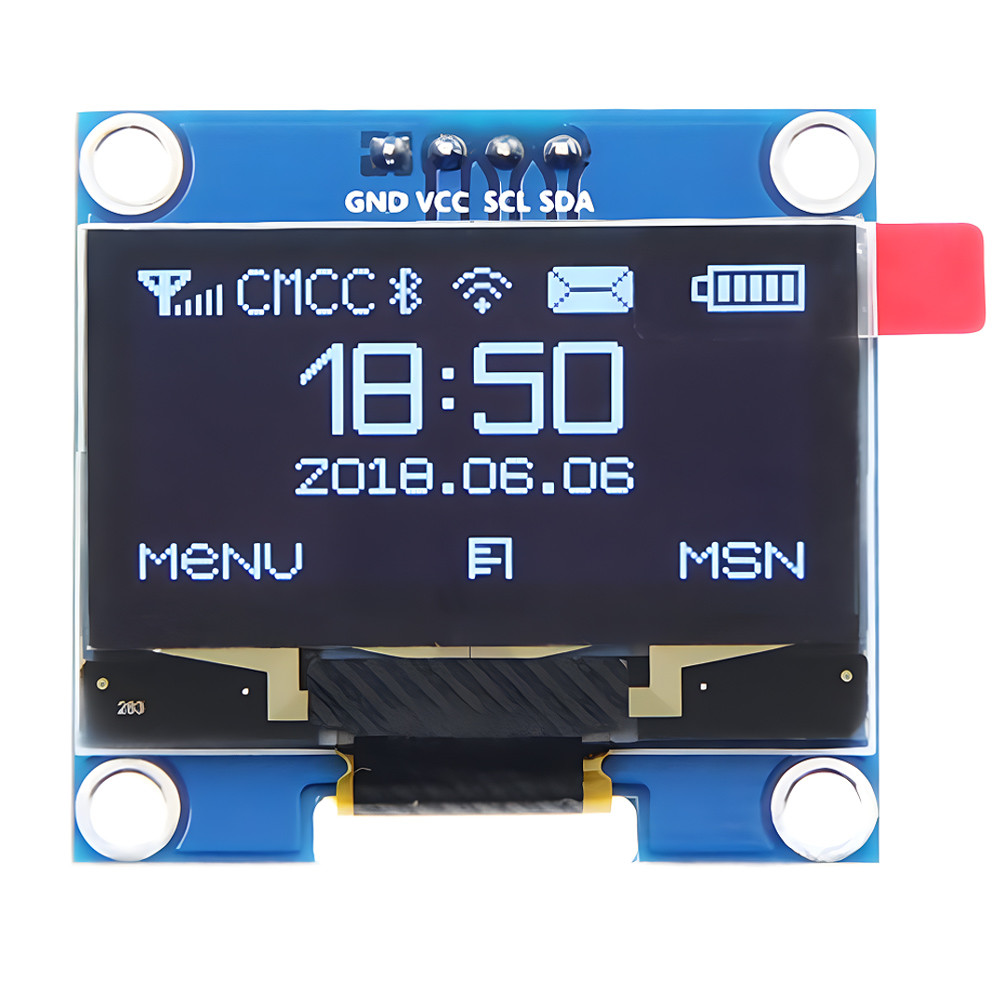

About this item SFOM130YZ4-12864WB-02 4 header pin 1.3 inch OLED Module

The product SFOM130YZ4-12864WB-02 features of the white/blue font options for the 1.3-inch 128x64 dot matrix OLED 4-pin IIC I2C interface SH1106 driver IC are as follows:

1. Adopting OLED (Organic Light Emitting Diode) technology, it has the characteristics of being lightweight, energy-saving, high contrast, and wide viewing angle, suitable for providing clear display effects in various environments.
2. The resolution is 128x64 pixels, providing clear graphics and text display.
3. The SH1106 driver IC supports up to 132x64 dot matrix panels, built-in 132x64 bit SRAM, supports 8-bit 6800 series parallel interfaces, and 400KHz fast I2C bus interfaces. The maximum data transfer rate supported by the I2C interface of the SH1106 driver IC is 400KHz. This means that under ideal conditions, it can transmit data at a speed of up to 400000 bits per second. This transmission rate is sufficient for most small display applications, ensuring timely data transfer from the microcontroller to the display module, thereby providing smooth display effects
4. Provides 4-pin IIC I2C interface, supports 3-wire and 4-wire serial peripheral interfaces, and is easy to connect with microcontrollers or other processors.
5. Supports displaying white and blue fonts, and users can choose the most suitable color according to the application scenario.
6. OLED screens emit light and have high brightness characteristics, making them suitable for use in bright environments.
7. The logic power supply voltage range of SH1106 is 1.65V-3.5V, the DC-DC power supply voltage is 3.0V-4.2V, and the OLED operating power supply voltage is 6.4V-14.0V.
8. Low power design, with power consumption less than 5 μ A in sleep mode.
9. Suitable for various applications such as portable devices, smart homes, wearable devices, medical equipment, industrial control panels, etc.
10. Designed to meet industrial standards and capable of stable operation over a wide temperature range.
11. Supports row and column remapping (ADC), vertical scrolling, on-chip oscillator, programmable internal charge pump circuit output, 256 step contrast control on monochrome passive OLED panels.

This 1.3-inch OLED display module from Saef Technology is an ideal choice for applications that require miniaturized display solutions due to its high resolution, high brightness, and low power consumption characteristics.
