About this item SFOM150YZ7-128128WB-01 1.5 Inch OLED Display SPI Interface

The 1.5-inch SPI interface OLED display screen adopts a 128x128 dot matrix and is equipped with SSD1327/SH1107G driver IC, providing white/blue light options. It is a 7-pin module product. OLED (Organic Light Emitting Diode) technology provides high contrast and wide viewing angle display effects, while also having fast response time and low power consumption characteristics. The following is a detailed introduction of the product:

• 128x128 pixels, providing clear image and text display.
• SD1327/SH1107G, these driver ICs support multiple display functions and interface options.
• SPI (Serial Peripheral Interface) interface, supporting high-speed data transmission, suitable for applications that require quick updates of display content.
• Provides white and blue light options, allowing users to choose the most suitable color according to their application scenario.
• OLED screens emit light and have high brightness characteristics, making them suitable for use in bright environments.
• The logic power supply voltage range is 1.65V-3.5V, the DC-DC power supply voltage is 2.4V-3.5V, and the OLED operating power supply voltage is 7.0V-16.5V. Low power design, with power consumption less than 5 μ A in sleep mode.
• Suitable for various applications such as portable devices, smart homes, wearable devices, medical equipment, industrial control panels, etc. this 1.5 inch OLED Module is designed to meet industrial standards and capable of stable operation over a wide temperature range.
• Supports row and column remapping, vertical scrolling, on-chip oscillator, programmable internal charge pump circuit output, 256 step contrast control on monochrome passive OLED panels.

This 1.5-inch OLED display module from SAEF Technology is an ideal choice for applications that require miniaturized display solutions due to its high resolution, high brightness, and low power consumption characteristics.

Physical Data

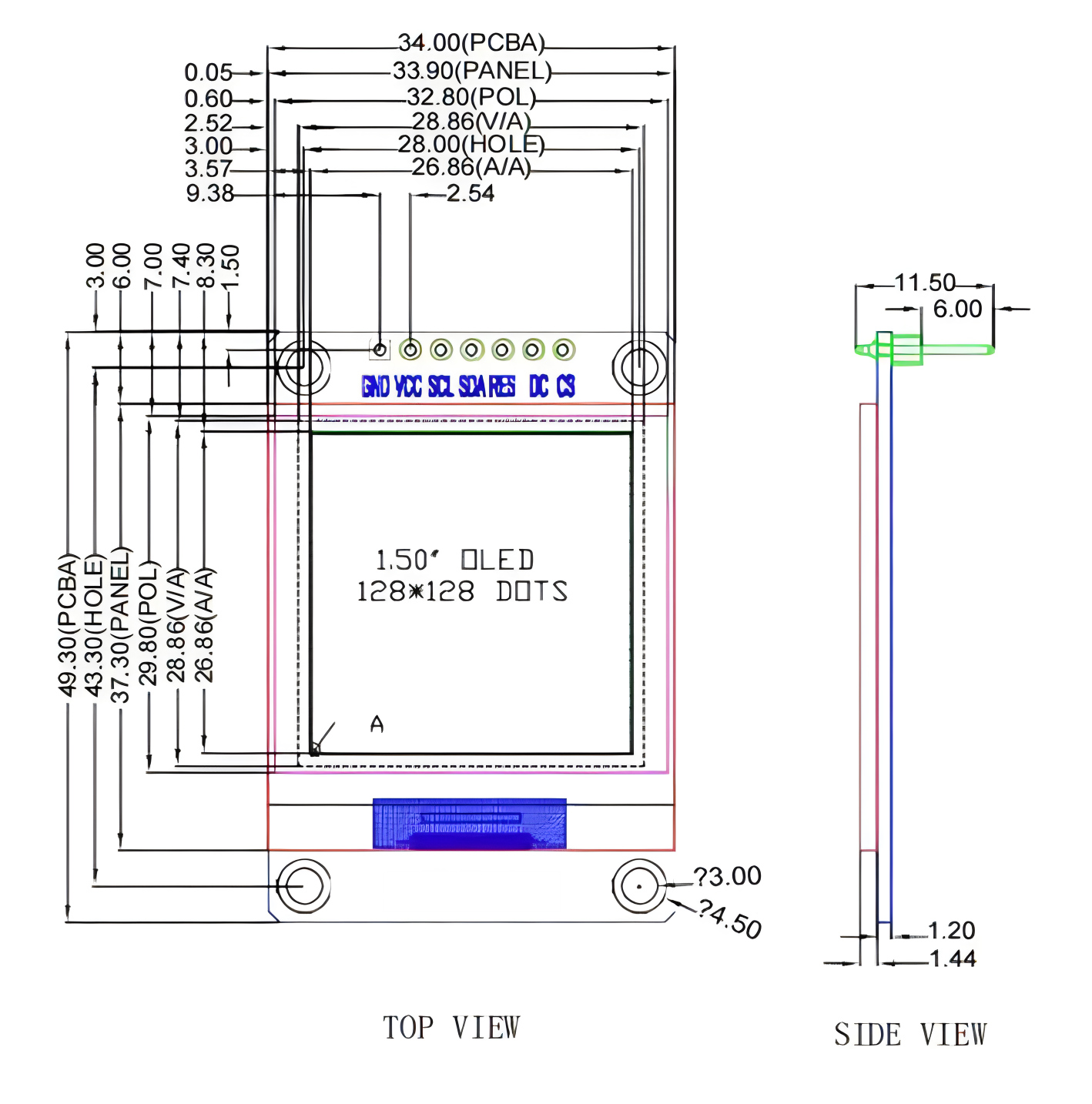

Mechanical Outline Drawing

Pin Definition

Electro-Optical Characteristics

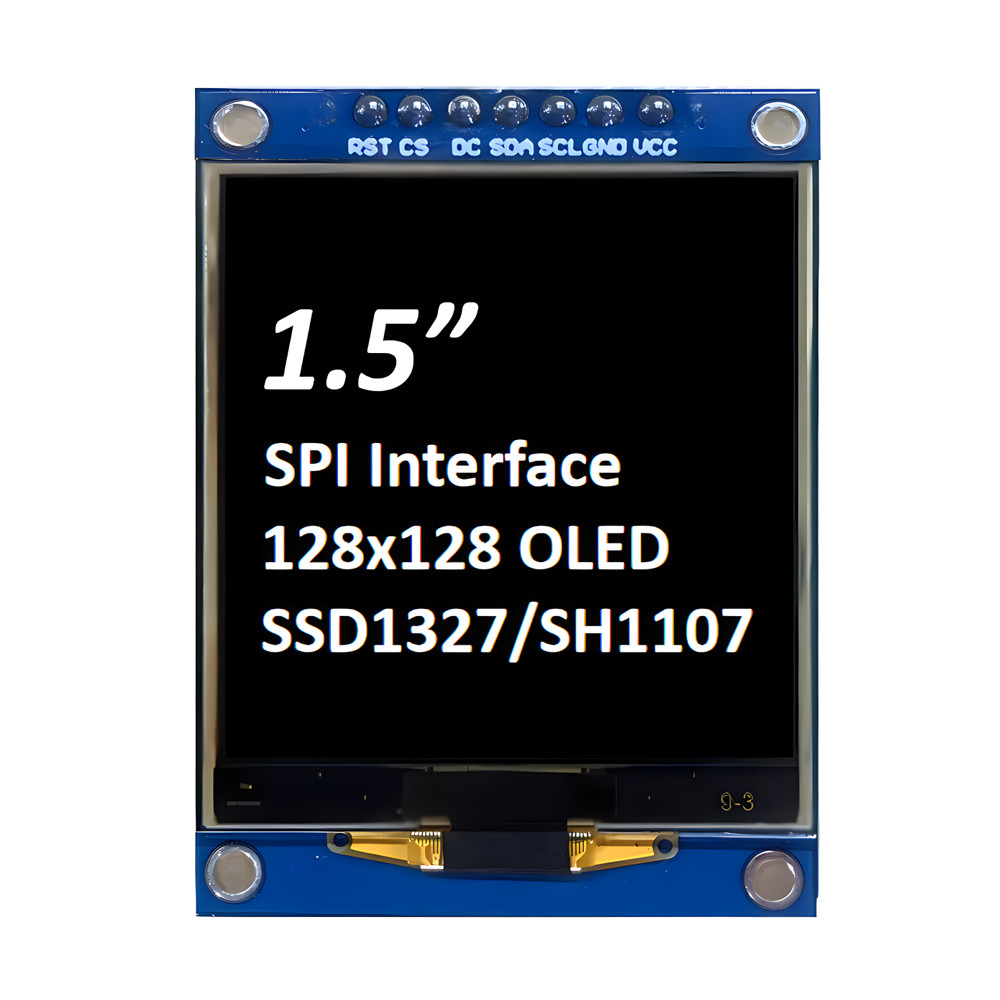

Product Image
