SFTO280TZ-7214AT
Specification.pdf
About this item SFTO280TZ-7214AT high brightness 1000nits
High brightness daylight readable 2.8-inch IPS TFT LCD display,
equipped with 240 x 320 pixel resolution and resistive touch
screen, is a display device designed specifically for outdoor or
bright environments. The following is a detailed introduction of
SFTO280TZ-7214AT from Saef Technology:
1. Display screen specifications:
-Size: 2.8 inches, suitable for portable devices and applications
with limited space.
-Resolution : 240 x 320 pixels, providing clear image and text
display.
-Resistive touch screen : Supports single touch, allowing users to
operate through the touch screen, suitable for basic interaction
needs.
-High brightness: The backlight brightness can reach 1000 cd/m ²,
ensuring clear readability in direct sunlight or bright
environments.
-IPS technology: In Plane Switching (IPS) technology provides a
wide viewing angle, ensuring a good visual experience from
different angles.
-SPI/MCU/SPI+RGB interface: This product is compatible with
multiple interfaces, providing customers with design convenience;
The product adopts a plug-in FPC, which maximizes the stability of
product installation on the client side.
2. Reliable display specifications:
-Wide temperature operation: able to adapt to a temperature range
from -20 °C to 70 °C, suitable for various environmental
conditions.
-Industrial grade design: Durable construction and materials ensure
stable operation even in harsh environments.
-Anti glare treatment: reduces reflection and glare under direct
sunlight, and improves the readability of the screen.
-Compliant with RoHS and REACH: meets environmental standards for
hazardous substance restrictions.
3. Customized Services :
-Customization Options: Customization services may be provided,
including specific interfaces, sizes, brightness, etc., to meet the
needs of specific customers.
4. Application Scenarios :
-Suitable for applications such as outdoor information handheld
devices, industrial control panels, medical equipment, automotive
displays, digital signage, etc. that require clear display under
strong light.
This 2.8-inch IPS TFT LCD display is an ideal choice for industrial
and commercial applications that require clear display in various
lighting conditions due to its high brightness, wide viewing angle,
and daylight readability.
Features
| General Information Items | Specification | Unit |
| Main Panel |
| Display area(AA) | 43.2(H) *57.6(V) (2.8inch ) | mm |
| Driver element | a-Si TFT active matrix | - |
| Display colors | 262K | colors |
| Number of pixels | 240(RGB) *320 | dots |
| Pixel pitch | 0.180(H) *0.180(V) | mm |
| Viewing angle | ALL | o'clock |
| Drive IC | ILI9341V | - |
| Color Pixel Arrangement | RGB vertical stripe | |
| Display mode | Transmissive/ Normally Black | - |
| Operating temperature | -20～+70 | ℃ |
| Storage temperature | -30～+80 | ℃ |
Mechanical Information
| Item | Min. | Typ. | Max. | Unit | Note |
| Module size | Horizontal(H) | - | 50.00 | - | mm | ±0.2 |
| Vertical(V) | - | 69.20 | - | mm | ±0.2 |
| Depth(D) | - | 3.99 | - | mm | ±0.2 |
| Weight | - | TBD | - | g | - |
Outline Drawing
PIN DESCRIPTION
| Pin NO. | Symbol | Level | Function |
| 1 | LEDK | L | BacklightK |
| 2~5 | LEDA | H | BacklightA |
| 6 | IM0 | H/L | Select the MCU interface mode NOTE( 1) |
| 7 | IM1 | H/L |
| 8 | IM2 | H/L |
| 9 | IM3 | H/L |
| 10 | RESED | H/L | Hardware reset pin |
| 11 | VSYNC | H/L | Vertical (Frame) synchronizing input signal for RGB |
| 12 | HSYNC | H/L | Horizontal (Line) synchronizing input signal for RGB |
| 13 | DOTCLK | H/L | Dot clock signal for RGB interface operation. |
| 14 | ENABLE | H/L | Data enable signal for RGB interface operation. |
| 15~32 | D17-DB0 | H/L | Data bus |
| 33 | SD0 | H/L | SPI interface output pin. |
| 34 | SDA | H/L | SPI interface input pin. |
| 35 | RD | H/L | Read enable clock pin |
| 36 | WR-RS | H/L | A register select signal |
| 37 | RS-SCL | H/L | Write enable clock input pin |
| 38 | CS | H/L | Chip select input pin |
| 39 | TE | H/L | Tearing effect output |
| 40 | IOVCC | H | Power supply( 1.8V) |
| 41 | IOVCC | H | Power supply(2.8-3.3V) |
| 42 | VCI | H | Power supply(2.8-3.3V) |
| 43 | GND | L | Ground |
| 44 | XR | / | / |
| 45 | YD | / | / |
| 46 | XL | / | / |
| 47 | YU | / | / |
| 48 | GND | L | Ground |
| 49 | GND | L | Ground |
| 50 | GND | L | Ground |
ABSOLUTE MAXIMUM RATINGS
Item | Symbol | Values | Unit |
| Min | Max. |
| Supply Voltage for Logic circuit | IOVCC | -0.3 | 4.6 | V |
| Supply Voltage for analog circuit | VCI | -0.3 | 4.6 | V |
OPERATING CONDITIONS
Item | Symbol | Values | Unit | Remark |
| Min | Typ | Max. |
| Power Supply | VCC | 2.7 | 2.8 | 3.3 | V | |
| Power Supply | IOVCC | 1.7 | 1.8 | 3.3 | V | |
| Normal mode Current consumption | Icc | - | 12 | - | mA | VCC=2.8V |
| TFT Gate ON Voltage | VGH | | 15 | | V | |
| TFT Gate OFF Voltage | VGL | | -7.5 | - | V | |
BACKLIGHT UNIT (GND=0V)
Item | Symbol | Values | Unit | Remark |
| Min | Typ | Max. |
| Forward supply Voltage | Vf | 2.8 | - | 3.4 | V | |
| Forward supply Current | If | - | 120 | - | mA | |
| LCM Luminance | LV | 900 | 1000 | - | cd/m2 | IB= 120mA |
| Uniformity | / | 80 | | | % | - |

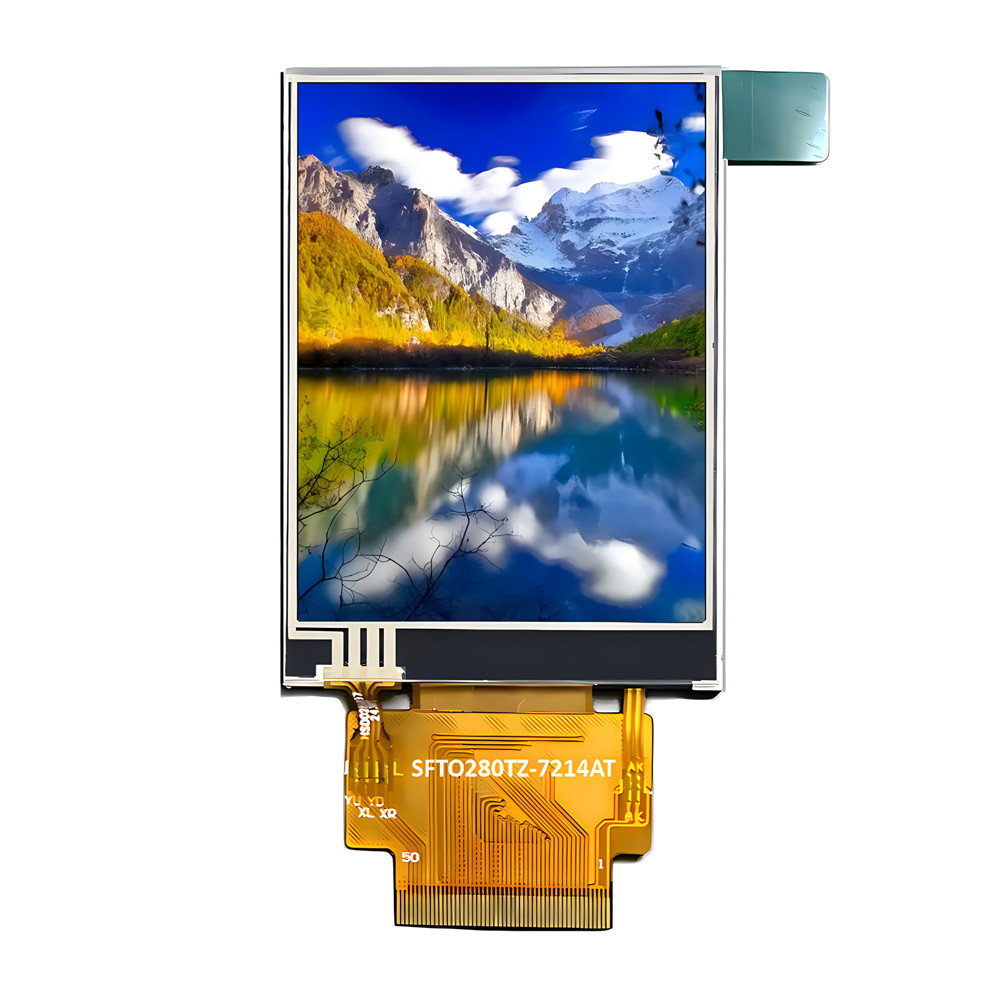

Product Image
