13.3-inch EDP TFT LCD Display Product Introduction

The 13.3-inch EDP TFT LCD display is a device that utilizes high-end display technology and is widely popular in portable devices, commercial displays, and industrial applications for its excellent image quality and versatility. The following is a detailed introduction to a 13.3-inch EDP TFT LCD display with a resolution of 1920 * 1080 pixels, 30 pin interface, and 72% NTSC color gamut coverage and a brightness of 350cd/m ².

Product Features
Brand and Model: SFTO1330SM-7191AN
Panel type: a-Si TFT-LCD
Size: 13.3 inches
Resolution: 1920 (RGB) × 1080 (FHD)
Pixel arrangement: RGB vertical stripes
Aspect ratio: 16:9
Point spacing: 0.051 × 0.153mm
Pixel spacing: 0.153 × 0.153mm (166PPI)
Brightness: 350cd/m ² (typical value)
Contrast ratio: 800:1 (typical value)
Viewing angle: 85/85/85/85 (typical value)
Color gamut coverage: 72% (NTSC)
Response time: 30 (typical value) (Tr+Td) ms
Display mode: VA/IPS, normally black display, transmissive
Backlight type: WLED
Working temperature: -10~60 ° C
Storage temperature: -20~60 ° C

Optical Performance
This 13.3 inch TFT offers high brightness of 350cd/m ² and high contrast ratio of 800:1, ensuring clear images and vivid colors. 72% of the NTSC color gamut coverage ensures the true reproduction of colors, making the display effect closer to natural colors.

Interface Characteristics
Signal category: EDP
Panel voltage: 3.3V (typical value)
Panel current: 279/468mA (typical/maximum)
Interface type: Terminal
Interface pin count: 30 pins

Application Area
This 13.3-inch EDP TFT LCD display is suitable for various application scenarios, including but not limited to:

Portable devices: such as high-end laptops, tablets, etc.
Commercial display: used for advertising machines, information dissemination systems, etc.
Industrial application: As a display interface for industrial control systems.

Summary
This 13.3-inch EDP TFT LCD display provides users with an excellent visual experience with its high resolution, high brightness, high contrast, and wide color gamut coverage. Whether in strong outdoor light or low indoor light environments, clear display effects can be guaranteed. Its versatility and reliability make it an ideal choice for various application scenarios.

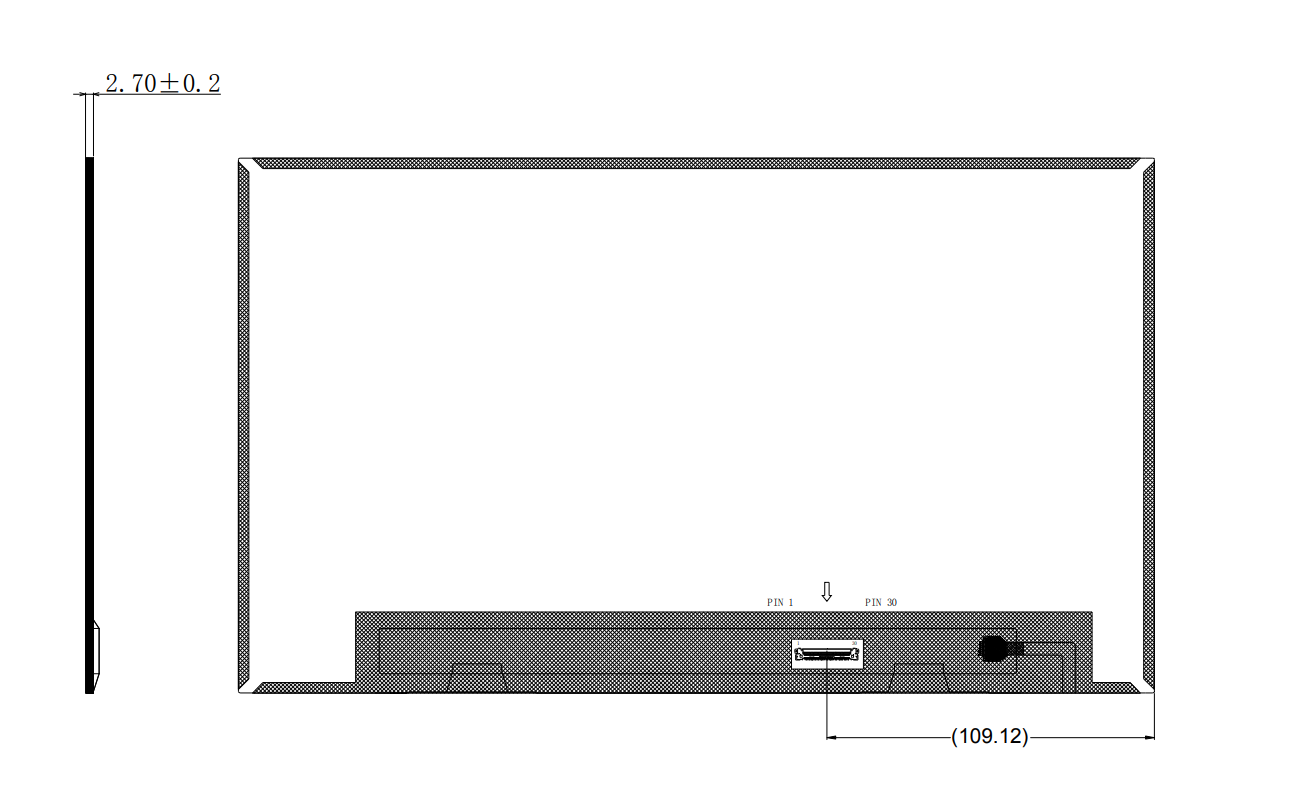

Outline Drawing

Interface Pin Definition

Backlight Electronical Specifications

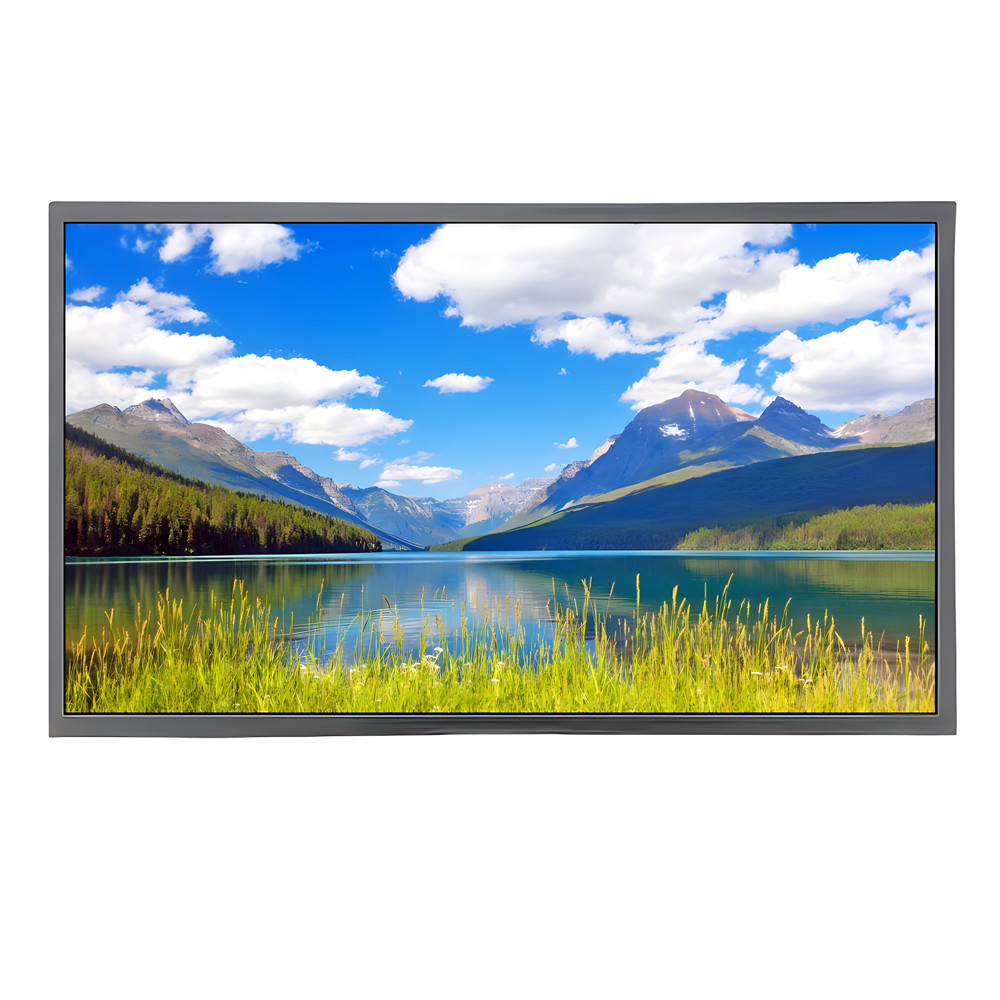

Product Image
