SFOM242YZ7-12864WBYG-01
Specification.pdf
Product Introduction
The 2.42-inch 7-pin SPI interface OLED control board is a control
board that integrates high-performance OLED display technology,
suitable for application scenarios that require high contrast,
ultra-thin design, and low-power display solutions. The control
board is equipped with SSD1309 /SPD0301 driver chip, supporting
SPI/I2C dual interface communication, providing users with flexible
connection options.
Technical parameter
Display screen size: 2.42 inches
Resolution: 128 × 64 pixels
Display color: white, yellow, Green and Blue optional
Control chip: SSD1309/SPD0301
Communication interface: SPI/I2C
Physical interface: GH1.25 7Pin
Working voltage: 3.3V/5V
Display size: 55.01 × 27.49mm
Product size: 61.50 × 39.50mm
Product features
High contrast: 2.42-inch 7-pin SPI interface OLED's self luminous
characteristics provide extremely high contrast and excellent
display effects.
Ultra thin and lightweight: Due to the self luminous principle of
OLED, there is no need for backlight, making the control board
thinner and lighter.
Low power operation: 2.42-inch OLED does not consume energy when
displaying black, which helps to reduce overall power consumption.
Wide viewing angle display: 2.42-inch OLED Provides a wide viewing
angle of over 170 °, ensuring clear viewing from different angles.
Fast response: 2.42-inch 7-pin SPI interface OLED's fast response
time is suitable for applications with dynamic images and fast
refresh.
Support SPI/I2C communication: compatible with two communication
protocols, convenient for connecting with various microcontrollers.
Software support
Provide comprehensive software development support, including:
Routine data: Provide sample code for platforms such as Raspberry
Pi, Arduino, STM32, ESP32, etc.
Communication Protocol: Provide implementation details for SPI and
I2C communication protocols.
Graphic library: supports basic graphic drawing and text display
functions.
Font support: Built in multiple fonts to meet the display needs of
different languages and characters.

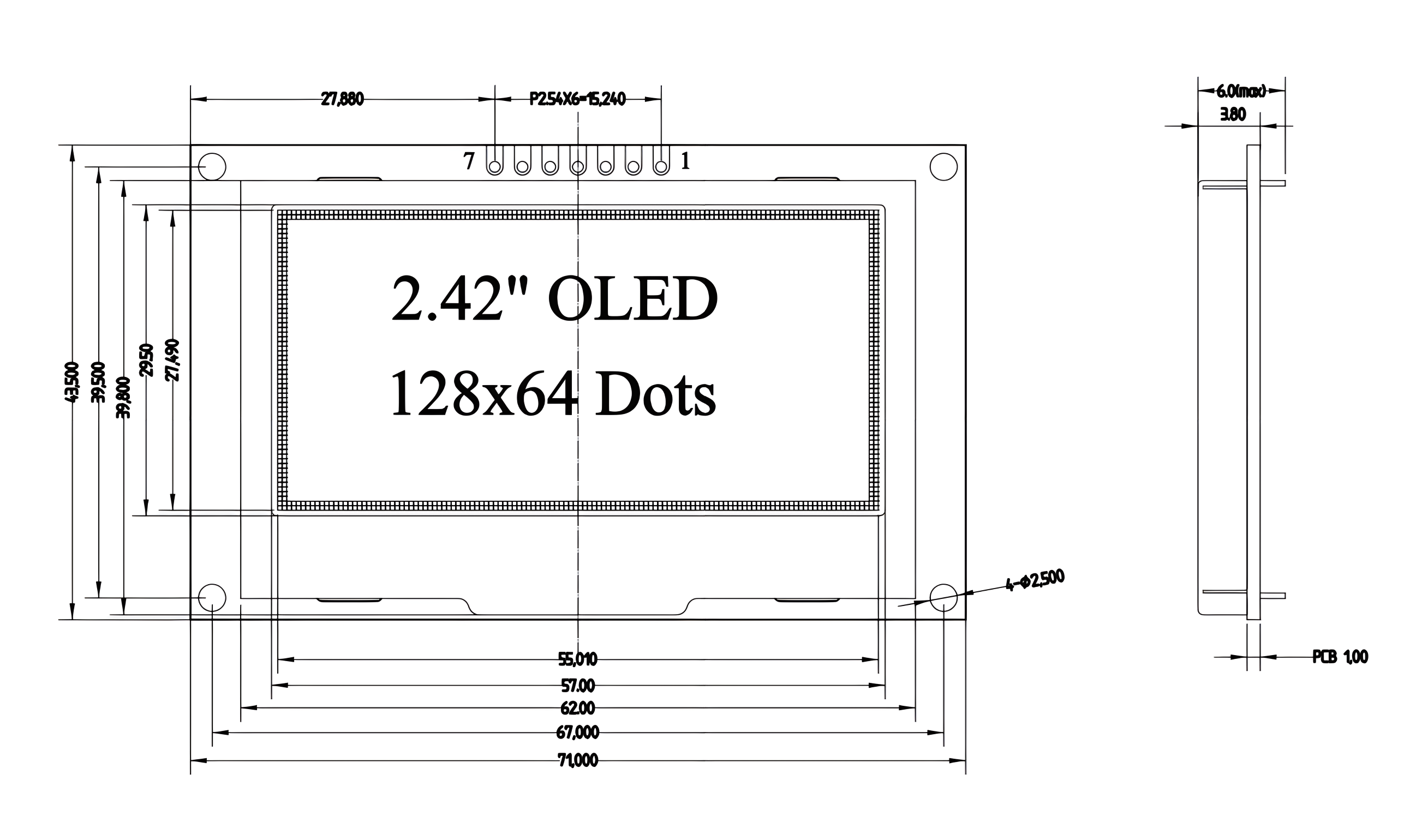

Outline Drawing
Interface Pin Definition (Hardware connection)
| Pin | Symbol | Descriptions |
| 1 | GND | Ground of Logic Circuit |
| 2 | VDD | Power Supply for Logic |
| 3 | SCK | Serial clock input. |
| 4 | SDA | Serial data input. |
| 5 | RST | This pin is reset signal input. When the pin is low, initialization
of the chip is executed. Keep this pin pull high during normal
operation. |
6 | DC | This pin is Data/Command control pin. When the pin is pulled high
and serial interface mode is selected, the data at SDIN will be interpreted as data. When it is pulled low, the data at
SDIN will be transferred to the command register. |
| 7 | CS | Chip Select. Chip is selected when CS0 = “L” . |
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit |
| Supply Voltage for Logic | VDD | -0.3 | 4 | V |
| Supply Voltage for Display | VCC | 8 | 17 | V |
| Operating Temperature | TOP | -40 | 70 | .C |
| Storage Temperature | TSTG | -40 | 85 | .C |
| Life Time (220 cd/m2) | | 13,000 | - | hour |
| Life Time (200 cd/m2) | | 15,000 | - | hour |
Life Time (180 cd/m2) | | 16,000 | - | hour |
Electrical Specifications
Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
| Normal mode current consumption | | All pixels on | - | 17 | 25 | mA |
| Standby mode current consumption | | Standby mode 10% pixels on | - | 0.5 | 1.5 | mA |
| Normal mode power consumption | | All pixels on | - | 71.5 | 97.5 | mW |
| Standby mode power consumption | | Standby mode 10% pixels on | - | 6.5 | 19.5 | mW |
| Brightness | Lbr | - | 90 | 110 | - | cd/m2 |
| C.I.E. (White) | (x) (y) | C.I.E. 1931 | 0.24 0.28 | 0.28 0.32 | 0.32 0.36 | |
| Dark Room Contrast | CR | - | 2000:1 | - | - | |
Viewing Angle
| | - | 160 | - | - | degree |
Product Image
Reliability Testing Condition
Item | Conditions | Criteria |
| High Temperature Operation | 70.C, 240 hrs | The operational functions work. |
| Low Temperature Operation | -40.C,120 hrs |
| High Temperature Storage | 85.C, 120 hrs |
| Low Temperature Storage | -40.C, 120 hrs |
| High Temperature/Humidity Operation | 65.C, 90% RH, 120 hrs |
Thermal Shock | -40°C ~85°C (-40°C /30min; transit /3min; 85°C /30min;
transit/3min) 1cycle: 66min, 100 cycles |
