0.49 Inch OLED Display 64*32 Dots Product Introduction
0.49-inch OLED products are small display screens widely used in
various smart devices and instruments due to their ultra-thin,
low-power, high contrast, and wide viewing angle characteristics. A
0.49-inch OLED display typically has a 64x32 pixel dot matrix,
capable of displaying white fonts, driven by an SSD1315 controller,
supports I2C serial interface, and operates at 2.8V voltage. This
type of display screen, due to the self luminous characteristics of
OLED, does not require backlighting, thus having the advantages of
ultra-thin body design and low power consumption. Their working
temperature range is wide, from -40 ℃ to 85 ℃, and they are
suitable for various environmental conditions. In addition, the
0.49-inch OLED display screen adopts FPC connection method, which
facilitates direct soldering to the PCB without the need for
connectors.
0.49-inch OLED products are highly suitable for devices with strict
space requirements due to their compact size and high resolution.
They are widely used in smart watches, health monitoring devices,
small display screens for industrial control systems, portable game
consoles, and other occasions that require small and efficient
display screens. 0.49-inch OLED products have become one of the
preferred solutions for modern small displays due to their unique
technological advantages and wide application potential. With the
maturity of technology and the expansion of the market, we can
expect such products to play a more important role in future smart
and electronic devices.
Features
- Model number: SFOS049XZ-7111AN
- Display Mode: Passive Matrix
- Display Color: Monochrome (White)
- Drive Duty: 1/32 Duty
- Driver IC: SSD1315 or Equivalent
- Number of Pixels: 64 × 32
- Pin number: 14
- Panel Size: 14.5 × 11.6 × 1.227 (mm)
- Active Area: 11.18 ×5.58 (mm)
- Pixel Pitch: 0.175 × 0.175 (mm)
- Pixel Size: 0.155 × 0.155 (mm)
Product Drawing
Interface Pin Definition
| Pin No. | Symbol | I/O | Function |
| PowerSupply |
| 8 | VDD | P | Power Supply for Logic
This is a voltage supply pin. It must be connected to external
source. |
| 7 | VSS | P | Ground of Logic Circuit
This is a ground pin. It acts as a reference for the logic pins. It
must be connected to external ground. |
| 14 | VCC | P | Power Supply for OEL Panel
This is the most positive voltage supply pin of the chip. A
stabilization capacitor should be connected between this pin and
VSS when the converter is used. It must be connected to external
source when the converter is not used. |
| Driver |
| 12 | IREF | I | Current Reference for Brightness Adjustment
This pin is segment current reference pin. A resistor should
between this pin and VSS. Set the current at 12.5μA maximum. |
| 13 | VCOMH | O | Voltage Output High Level for COM Signal. This pin is the input pin
for the voltage output high level for COM signals. A
capacitor should be connected between this pin and VSS. |
| DC/DC Converter |
5
|
VBAT
|
P
| Power Supply for DC/DC Converter Circuit
This is the power supply pin for the internal buffer of the DC/DC
voltage converter. It must be connected to external source when the
converter is used. It should be connected to VDD when the converter
is not used. |
3/4
1/2 | C1P/C1N
C2P/C2N | I | Positive Terminal of the Flying Inverting Capacitor Negative
Terminal of the Flying Boost Capacitor The charge-pump capacitors
are required between the terminals. They must be floated when the
converter is not used. |
| Interface |
9
|
RES#
|
I
| Power Reset for Controller and Driver
This pin is reset signal input. When the pin is low, initialization
of the chip is executed. Keep this pin pull high during normal
operation. |
| 10 | SCL | I | I2C Bus Data Signal
The transmission if information in the I2C bus is following a clock
sigmal. Each transmission of data bit is taken place during a
single clock period of this pin. |
| 11 | SDA | I/O | I2C Bus Data Signal
This pin acts as a communication channel between the transmitter
and the receiver. |
Optics Characteristics
| Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
Brightness (VCC Supplied Externally) | Lbr | Note 5 | 160 | - | - | cd/m2 |
Brightness (VCC Generatedby Internal DC/DC) | Lbr | Note 6 | 160 | 180 | - | cd/m2 |
| C.I.E. (White) | (x) (y) | C.I.E. 1931 | 0.25 0.27 | 0.29 0.31 | 0.33 0.35 | |
| Dark Room Contrast | CR | | - | 2000:1 | - | |
| Viewing Angle | | | - | Free | - | degree |
DC Characteristics
| Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
| Supply Voltage for Logic | VDD | | 1.65 | 2.8 | 3.3 | V |
Supply Voltage for Display (Supplied Externally) | VCC | Note 5 (Internal DC/DC Disable) | 7.0 | 7.25 | 7.5 | V |
| Supply Voltage for DC/DC | VBAT | Internal DC/DC Enable | 3.3 | - | 4.2 | V |
| Supply Voltage for Display (Generatedby Internal DC/DC) | VCC | Note 6 (Internal DC/DC Enable) | 7.0 | - | 7.25 | V |
| High Level Input | VIH | IOUT = 100μA, 3.3MHz | 0.8×VDD | - | VDD | V |
| Low Level Input | VIL | IOUT = 100μA, 3.3MHz | 0 | - | 0.2×VDD | V |
| High Level Output | VOH | IOUT = 100μA, 3.3MHz | 0.9×VDD | - | VDD | V |
| Low Level Output | VOL | IOUT = 100μA, 3.3MHz | 0 | - | 0.1×VDD | V |
| Operating Current for VDD | IDD | | - | 180 | 300 | μA |
| Operating Current for VCC (VCC Supplied Externally) |
ICC | Note 7 |
- |
5 |
10 |
mA |
| Operating Currentfor VBAT (VCC Generatedby Internal DC/DC) | IBAT | Note 8 |
- |
10 |
15 |
mA |
| Sleep Mode Current for VDD | IDD, SLEEP | | - | 1 | 5 | μA |
| Sleep Mode Current for VCC | ICC, SLEEP | | - | 2 | 10 | μA |

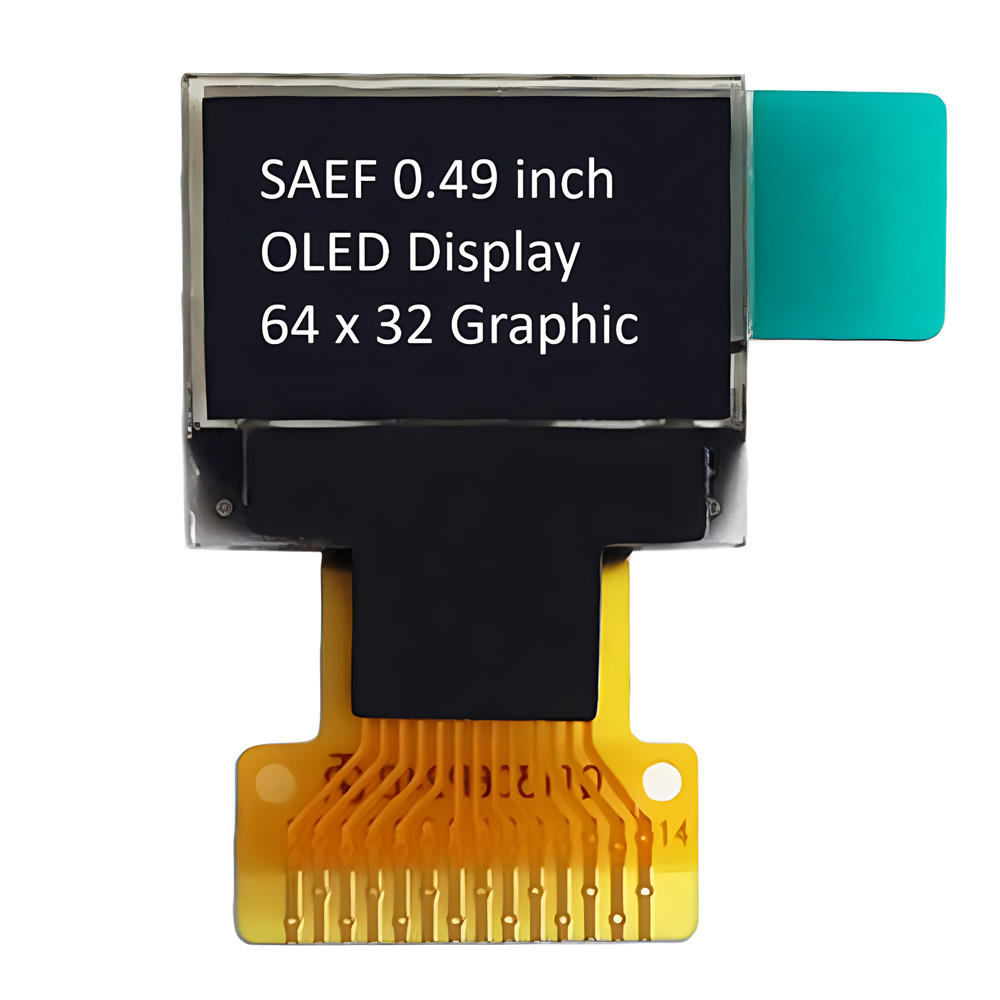

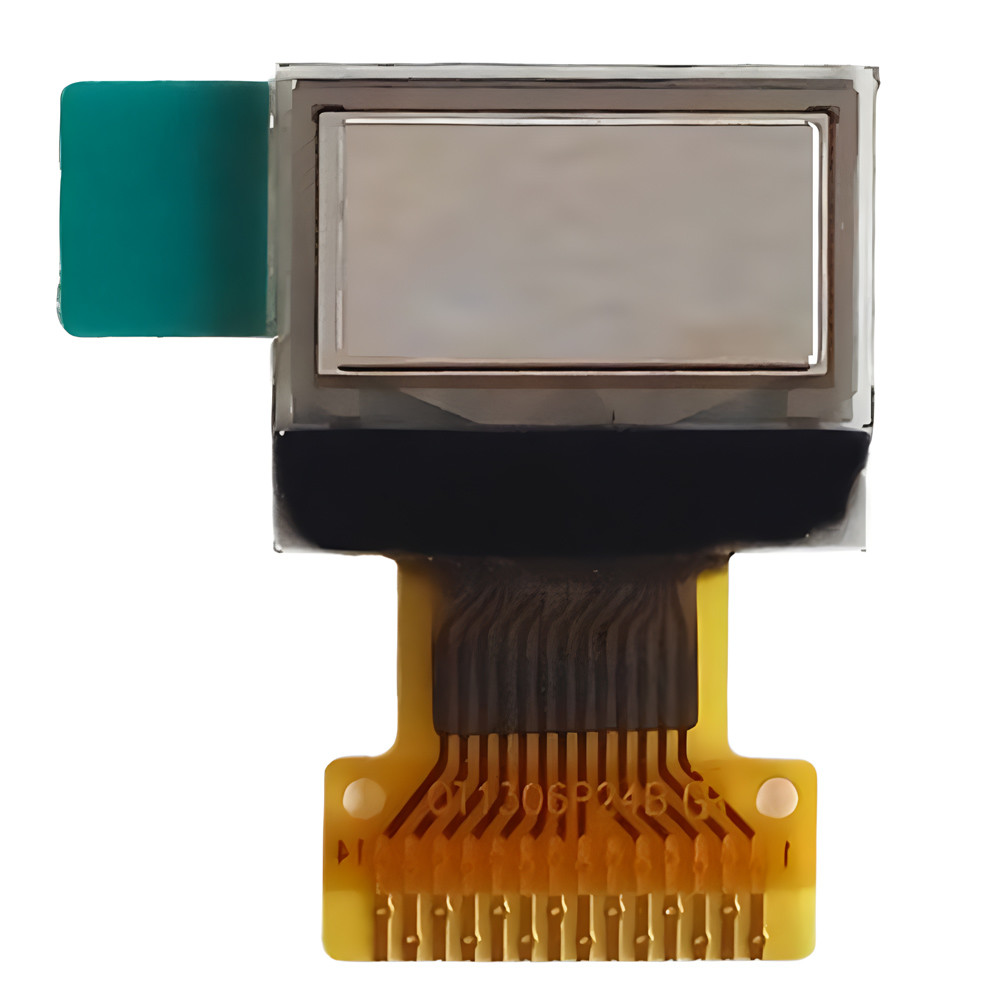

Product Image
Contents of Reliability Tests
| Item | Conditions | Criteria |
| High Temperature Operation | 70℃, 240 hrs | The operational functions work. |
| Low Temperature Operation | -40℃, 240 hrs |
| High Temperature Storage | 85℃, 240 hrs |
| Low Temperature Storage | -40℃, 240 hrs |
| High Temperature/Humidity Operation | 60℃, 90% RH, 120 hrs |
| Thermal Shock | -40℃ <==> 85℃, 24 cycles 60 mins dwell |
Facilities and Certificates
Contact Us
