0.96 inch IPS TFT LCD 8 Pins Product Introduction
Despite their small size, small TFT LCD screens are widely used in
industries such as smart wearable devices, instruments, digital
cameras, electronic tags, communication devices, and smart homes.
This 0.96-inch small-sized TFT display SFTO096JY-7183AN adopts SPI
interface (serial peripheral interface), which is a high-speed,
full duplex, synchronous communication bus that only occupies four
lines on the chip pins, saving space for chip pins and PCB layout.
SFTO096JY-7183AN is a full-color TFT LCD display with a diagonal
size of 0.96 inches and a resolution of 80x160. This module
supports SPI interface, making it very convenient for users to
program and use. The module size of SFTO096JY-7183AN model is
13.5x27.9x1.5 mm, and the active area size is 10.8x21.7mm.
The IPS technology used in the product ensures that users can
experience the panoramic view of the screen and an excellent user
experience from any direction. The ST7735 controller is integrated
into the module, with a logic power supply voltage range of 3.0V to
3.4V. It can operate within a temperature range of -20 ℃ to+70 ℃,
and its storage temperature range is -30 ℃ to+80 ℃. The FPC of
SFTO096JY-7183AN can be customized according to user requirements
and can be equipped with newly designed resistive touch screen
(RTP) or capacitive touch screen.
Feature
| No. | Item | Contents |
| 1 | LCD Size | 0.96inch(Diagonal) |
| 2 | Display Mode | Normally black |
| 3 | Resolution | 80(H)RGB x 160(V) |
| 4 | Dot pitch | 0.135 (H) x 0.1356(V) mm |
| 5 | Active area | 10.8(H) x 21.7 (V) mm |
| 6 | Module size | 13.5(H) x 27.9(V) x1.5(D) mm |
| 7 | Color arrangement | RGB Vtertical stripe |
| 8 | Interface | SPI 4 LINE |
| 9 | Drive IC | ST7735S |
| 10 | Luminance(cd/m2) | 260 (TYP) |
| 11 | Viewing Direction | All View |
| 12 | Backlight | 1 White LED |
| 13 | Operating Temp. | -20℃~ + 70℃ |
| 14 | Storage Temp. | -30℃~+ 80℃ |
0.96 inch IPS TFT LCD 8 Pins Product Drawing
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Logic Supply Voltage | IOVCC | -0.3 | 4.6 | V |
| Analog Supply Voltage | VCC | -0.3 | 4.6 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH | -- | 90%(Max60C) | RH |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 | -- |
| Input Current | Idd | -- | 20 | -- | mA |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit | Condition |
| Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V | -- |
| Forward Current | If | -- | 20 | -- | mA | -- |
| Operating Life Time | -- | -- | 40000 | -- | Hrs | |
Pin Definitions
Pin | Symbol | Description |
| 1 | LEDA | Anode of Backlight |
| 2 | GND | Ground |
| 3 | RESET | LCM Reset pin |
4 |
D/C | Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 5 | SDA | Serial data input |
| 6 | SCL | Serial clock pin |
| 7 | VDD | Power supply for Analog(2.8V-3.3V) |
| 8 | CS | Chip select pin(“Low” enable) |
Optical Characteristics
| Item | Symbol | Measuring Conditions | Min. | Typ. | Max. | Unit |
| Response Time | Tr+Tf | θ = 0o φ = 0o | 25 oC |
- | 30 | 40 |
ms |
Viewing Angle | θ | φ = 0o | 25 oC | - | 80 | - | Deg |
| | φ = 180o | 25 oC | - | 80 | - | |
| θ | φ = 90o | 25 oC | - | 80 | - | |
| | φ =270o | 25 oC | - | 80 | - | |
| Contrast Ratio | CR | - | 25 oC | | 800 | - | - |
Color of CIE Coordinate | White | X | 25 oC | 0.304 | 0.306 | 0.308 | - |
| | Y | 25 oC | 0.325 | 0.327 | 0.329 | |
| Red | X | 25 oC | 0.608 | 0.610 | 0.612 | |
| | Y | 25 oC | 0.331 | 0.333 | 0.335 | |
| Green | X | 25 oC | 0.279 | 0.281 | 0.283 | |
| | Y | 25 oC | 0.531 | 0.533 | 0.535 | |
| Blue | X | 25 oC | 0.144 | 0.146 | 0.148 | |
| | Y | 25 oC | 0.136 | 0.138 | 0.140 | |
| Transmittance (with polarizer) | | | | | 5.09 | | % |

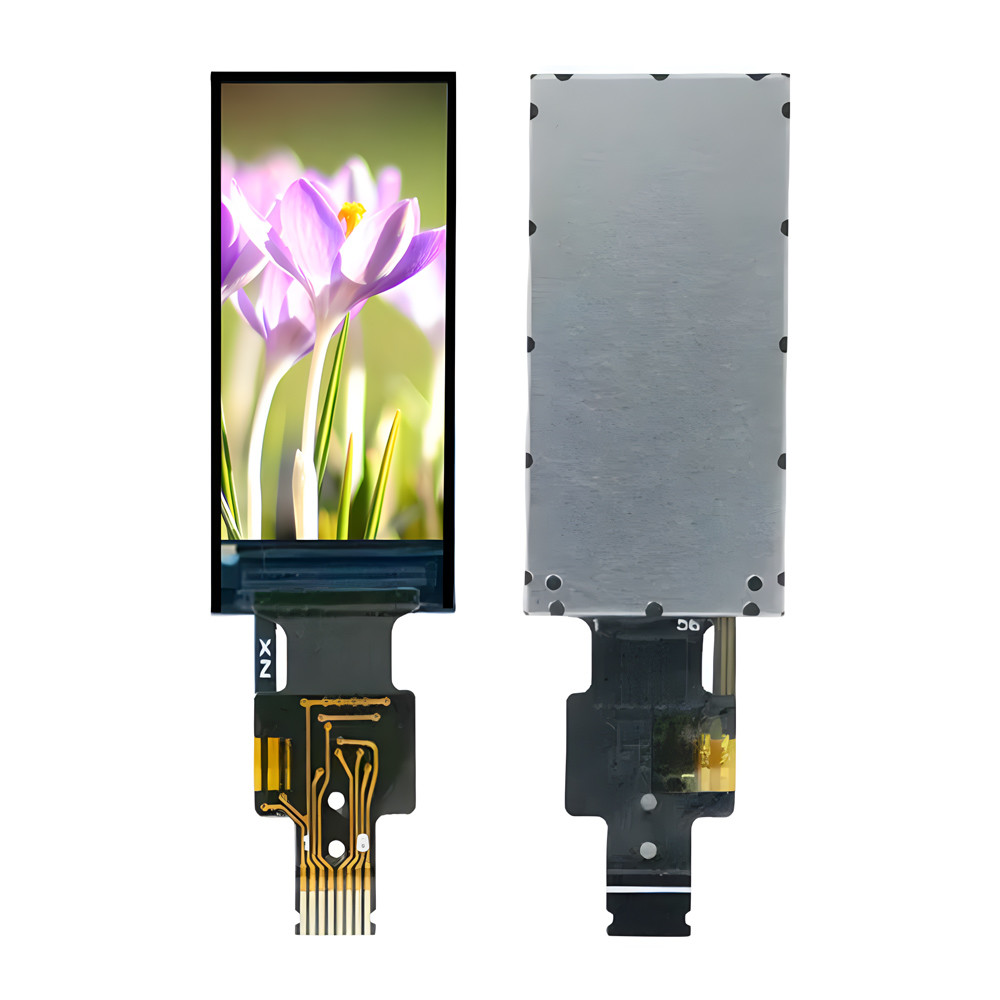

0.96 inch IPS TFT LCD 8 Pins Product Image
