0.96 inch OLED I2C interface Product Introduction
The 0.96-inch I2C module is a small OLED display module widely used
in various electronic devices. The 0.96-inch OLED I2C module has
become an ideal display solution in electronic products due to its
excellent display performance and low power consumption
characteristics.
Product Code: SFOM096YZ4-12864WB-02
Display size: 0.96 inches
Resolution: 128x64 pixels
Viewing angle: greater than 160 °
Color options: yellow blue, white, blue
Power requirement: 3V/5V
Signal type: digital signal, supports I2C communication
Pin definitions: GND, VDD, SCK, SDA
Working temperature range: -40 ℃ to 85 ℃ (industrial grade)
Power consumption: about 0.08W when fully lit, about 0.06W
The 0.96 inch OLED itself has self luminous technology, which does
not require backlighting. Each pixel emits light independently,
providing a clearer display effect. Moreover, the 0.96 inch OLED
has extremely low power consumption, making it particularly
suitable for battery powered portable devices. It has the
characteristic of high contrast, providing users with excellent
visual experience. Compatible with 3.3V and 5V logic levels, no
additional level conversion required. Supports I2C interface, only
two data interface cables are needed to complete data transmission
and control. So, 0.96 inch OLED is widely used in smart homes as a
status display screen for smart devices, as well as smart wearable
devices for displaying information such as time and health data;
And display key parameters and so on in industrial instruments and
industrial automation.
Features
| Product | 0.96 inch OLED I2C interface |
| Model number | SFOM096YZ4-12864WB-02 |
| Driving Scheme | 1/64 Duty |
| Viewing direction | All Viewing Angles |
| Driver IC | SSD1315 |
| Power Supply Voltage | 3.0V |
| VCC | 12.0V |
| Interface | IIC |
| Module Size | 24.70 (L) x27.0 (W) mm (PCB SIZE) |
| Viewing Area | 22.74(L) x 11.86 (W) mm |
| Active Area | 21.74 (L) x 10.86 (W) mm |
| Dot Pitch | 0.154 (W) x 0.154 (H) mm |
| Dot Size | 0.17(W) x 0.17(H) mm |

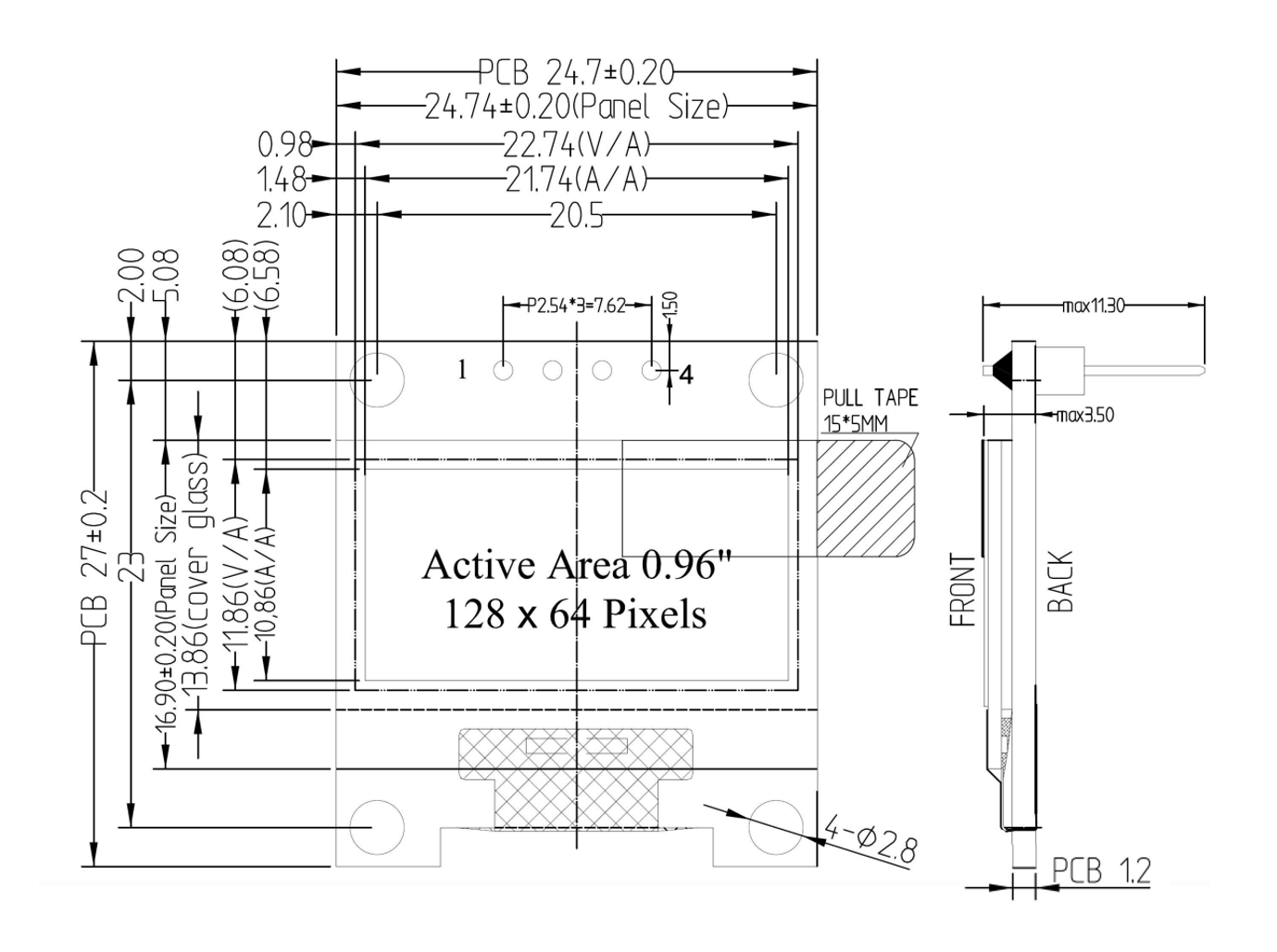

Outline Drawing
Interface Pin Definition
| Pin no. | Symbol | Descriptions |
| 1 | GND | Ground of Logic Circuit |
| 2 | VDD | Power Supply for Logic |
| 3 | SCK | Serial clock input. |
| 4 | SDA | Serial data input. |
Optics Characteristics
| Characteristics | Symbol | Conditions | Min | Typ | Max | Unit |
Brightness (VCC Supplied Externally) | Lbr | Note 5 | 90 | - | - | cd/m2 |
Brightness (VCC Generatedby Internal DC/DC) | Lbr | Note 6 | 80 | 100 | - | cd/m2 |
| C.I.E. (White) | (x) (y) | C.I.E. 1931 | 0.25 0.27 | 0.29 0.31 | 0.33 0.35 | |
| Dark Room Contrast | CR | | - | 2000:1 | - | |
| Viewing Angle | | | - | Free | - | degree |

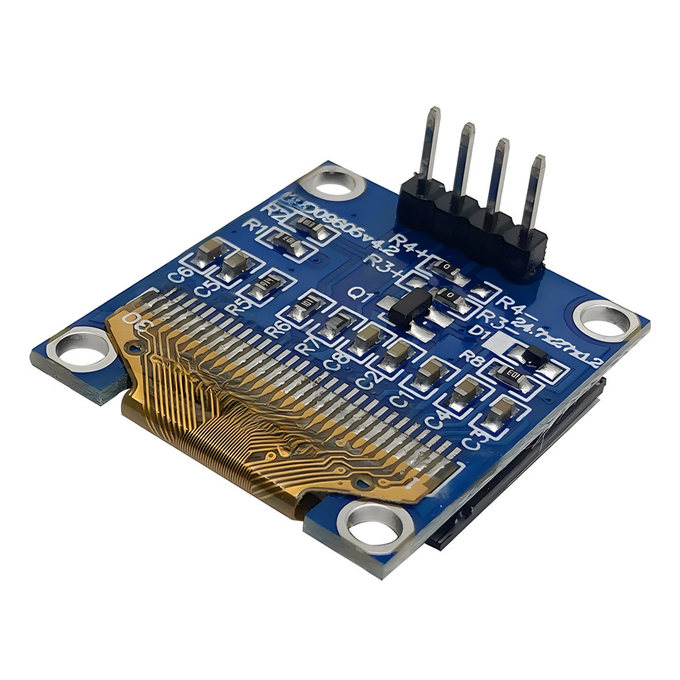

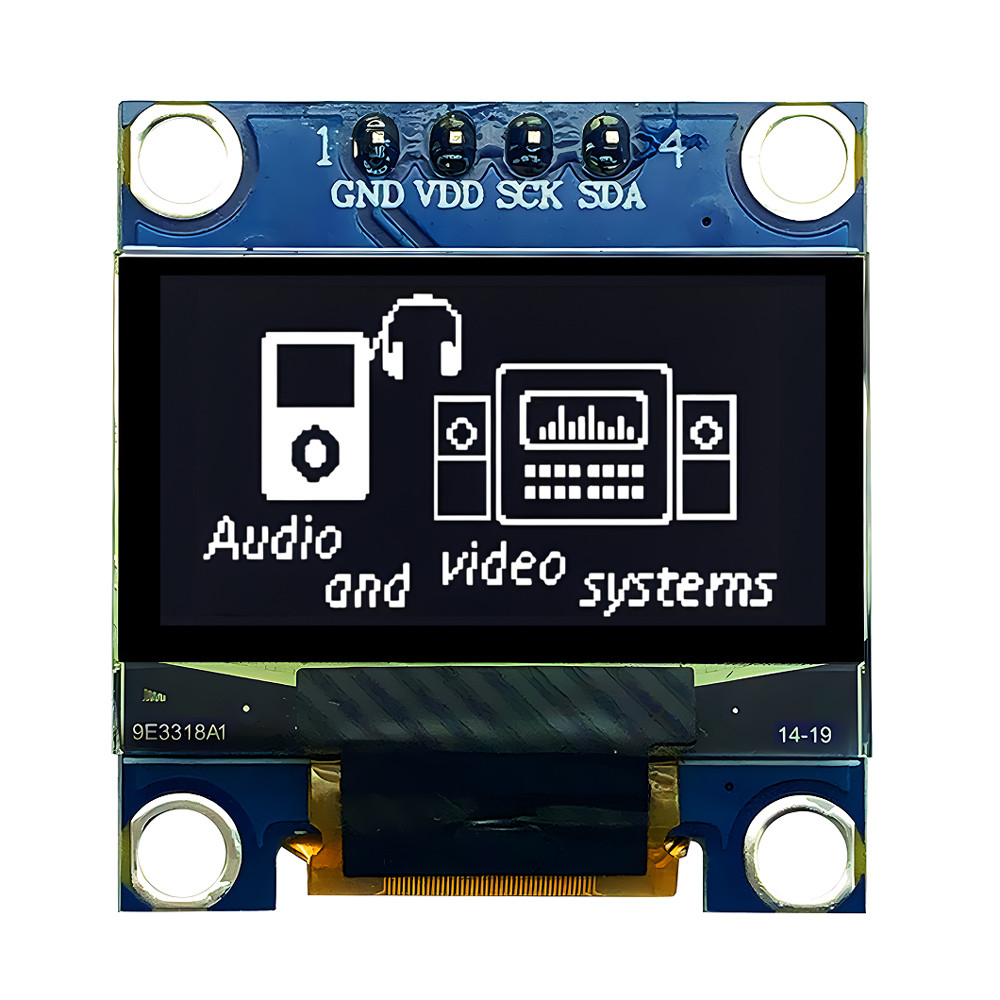

0.96 inch OLED I2C interface Product Images
Contents of Reliability Tests
| Item | Conditions | Criteria |
| High Temperature Operation | 70℃, 240 hrs | The operational functions work. |
| Low Temperature Operation | -40℃, 240 hrs |
| High Temperature Storage | 85℃, 240 hrs |
| Low Temperature Storage | -40℃, 240 hrs |
| High Temperature/Humidity Operation | 60℃, 90% RH, 120 hrs |
| Thermal Shock | -40℃ -> 85℃, 24 cycles 60 mins dwell |
