    1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SFTM130JY-7181AN
    Certification : ISO9001 / ISO14000
    Price : USD1.7 - USD2.0, Negotiable based on order lot quantity
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino


    1.3inch TFT LCD Module, 240x240 IPS 65K Full Color 3.3V with SPI Interface,

    51 STM32 Ar duino Routines for DIY


    SPI to serial chip is a multifunctional chip that can convert SPI interface signals into serial signals, which can be used to connect external devices and achieve communication with them. SPI to serial port chips have the advantages of high-speed transmission, low power consumption, and ease of use, and can be used in application scenarios such as computer hardware, household appliances, and industrial control.


    This 1.3-inch TFT LCD display module is a 7-pin display screen with SPI Serial connector. This TFT display provides a semiconductor switch for each pixel, which is directly controlled by pulses. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also enables precise control. The display point size is 240 * 240, and it has two display modes: horizontal display and vertical display. The display direction can be adjusted. The working voltage of this module is 3.3V; The IC driver is ST7789 with a display area size of 23.4 * 23.4mm; TFT module size: 27.5 * 39mm.


    Features


    Item

    Contents

    Part numberSFTM130JY-7181AN
    LCD Size1.3 inch(Diagonal)
    Display ModeNormally black
    Resolution240(H)RGB x 240(V)
    Dot pitch0.0975 (H) x 0.0975(V) mm
    Active area23.4(H) x 23.4 (V) mm
    Module size27.5(H) x 39.0(V) x 11.3(D) mm
    Color arrangementRGB Vertical stripe
    InterfaceSPI
    Drive ICST7789
    Luminance250 (TYP) cd/m2
    Viewing DirectionAll View, IPS
    Backlight2 White LED
    Operating Temp.-20℃~ + 70℃
    Storage Temp.-30℃~+ 80℃
    WeightTBD

    Outline Drawing



    Pin Definition


    No.NameI/ODescription
    1VCCPPower Supply for the chip, DC 3.3-5V
    2GNDPGround
    3SCLISerial Clock pin (SPI)
    4SDAI/OSerial Data pin (SPI)
    5RES#IReset signal input. Active Low.
    6DCIData /Command control pin,SPI Choice/ Command Choice
    7BLKIBacklight control, default floating, low level off

    Backlight Characteristics


    ItemSymbolMinTypMaxUnit
    Forward VoltageVf3.03.23.4V
    Forward CurrentIf

    --

    20

    --

    mA
    Operating Life Time----40000

    --

    Hrs

    Optical Characteristics


    ItemSymbolMeasuring ConditionsMin.Typ.Max.Unit
    Response TimeTr+Tfθ = 0o φ = 0o25 oC

    -

    3035

    ms


    Viewing Angle


    θ

    φ = 0o25 oC-80-

    Deg

    φ = 180o25 oC-80-

    θ

    φ = 90o25 oC-80-
    φ =270o25 oC-80-
    Contrast RatioCR-25 oC800--
    Color of CIE CoordinateWhiteX25 oC0.3000.3020.304-
    Y25 oC0.3230.3250.327
    RedX25 oC0.6220.6240.626
    Y25 oC0.3270.3290.331

    Green

    X25 oC0.2860.2880.290
    Y25 oC0.5200.5220.524

    Blue

    X25 oC0.1340.1360.138
    Y25 oC0.1350.1370.139
    Transmittance (with polarizer)4. 184.65%

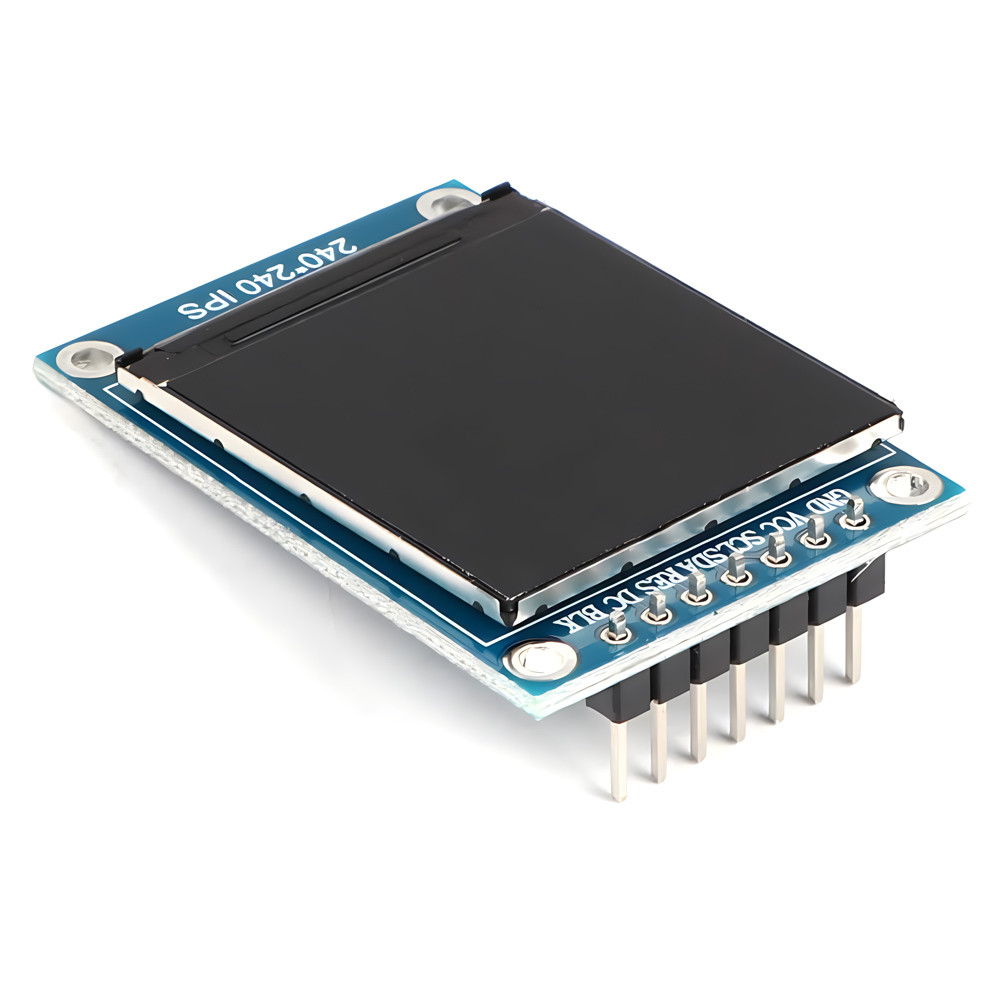

    Product Image

    1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino1.3" SPI TFT LCD Display Screen Module ST7789 240x240 3.3V 65K Full Color 51 STM32 For Arduino

    Reliability Tesing


    Test Item

    Test Condition

    Inspection after test
    High Temperature Operation85℃ for 96 hours

    After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects:
    1. Poor functionality, such as missing display, abnormal display, severe light explosion, etc. 2. There are no polarizing film bubbles, OCA bubbles, or other defects in the appearance.

    2. Each tested module can only be used for one of the testing projects

    Low Temperature Operation-30℃ for 96 hours
    High Temperature Storage85℃ for 96 hours
    Low Temperature Storage-30℃ for 96 hours
    High Temperature Operation Humidity Operation60℃, 90%RH for 72 hours
    Thermal Shock-10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles
    Vibration Test (No Operation)

    Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min

    Test Period: 6 Cycles for each direction of X, Y, Z

    Static electricity testTouch ±4KV,air touch ±8KV
