    6.2 Inch 1024*600 TFT LCD Display Module Automotive Industrial Grade IPS Screen Panel


    6.2 Inch 1024*600 IPS TFT LCD RGB Interface Product Introduction


    The 1024 * 600 arrangement is a common 16:9 display dot matrix. Due to its high resolution, 1024 * 600 dot matrix displays have unique advantages in various application scenarios.


    In different application scenarios, such as industrial automation and control systems, medical equipment, cockpits of transportation vehicles such as airplanes and trains, and some high-end consumer electronics products, the high-resolution feature of 1024 * 600 dot matrix displays can bring clearer visual output and meet the high requirements of professional fields for image quality. Meanwhile, with the advancement of technology and the reduction of costs, this dot matrix display technology is expected to be applied and promoted in more fields.


    This model SFTO620BH-7180AN has a 6.2-inch display screen, 1024 * 600 dot matrix, and uses IPS technology, allowing users to experience a perfect visual experience from different angles. Its operating voltage is only 3V-3.6V, with a typical voltage of 3.3V and a surface brightness of 1000nits. Users can add RTP or CTP on the display screen to enhance the human-computer interaction effect.


    Features

    Characteristics


    Size6.2 inch
    Resolution1024(horizontal)*600(Vertical)
    Interface24BIT RGB
    Connect typeConnector
    Color Depth16.7M
    Technology typea-Si
    Pixel pitch (mm)0.13425x0.12872
    Pixel ConfigurationR.G.B. Vertical Stripe
    Display ModeNormally Black
    LCD Driver IC-
    Viewing DirectionIPS, All viewing angles
    Gray Scale Inversion DirectionALL

    Mechanical


    LCM (W x H x D) (mm)143.37*87.13*2.56
    Active Area(mm)137.472 x 77.232
    With /Without TSPWithout TSP
    Weight (g)TBD
    LED Numbers20LED

    6.2 Inch 1024*600 IPS TFT LCD RGB Interface Product Drawing



    Interface Pin Description


    Pin.NoSymbolFunction
    1,2VLED+Power for LED backlight (Anode)
    3,4VLED-Power for LED backlight (Cathode)
    5GNDPower ground
    6NCNot connect
    7DVDDDigital Power
    8NCNot connect
    9:DEData Enable signal.
    10VSDVertical sync input. Negative polarity
    11HSDHorizontal sync input. Negative polarity
    12-19B7-R0Blue Data
    20-27G7-G0Green Data
    28-35R7-R0Red Data
    36GNDGround
    37DCLKColock signal
    38GNDDisplay on/off
    39SHLRLeft or Right Display Control
    40UPDNUp / Down Display Control
    41NCNot connect
    42NCNot connect
    43VPPOTP Power(+7.8V)
    44RSTBGlobal reset pin. Active low to enter reset state.OTP reset Suggest to connecting with an RC reset circuit for stability. Normally pull high. (R=10KΩ , C=1μF)
    45SCLOTP Serial clock input
    46NCNot connect
    47NCNot connect
    48GNDPower ground
    49SDAOTP Serial data input
    50CSOTP Chip select pin

    Absolute Maximum Ratings


    ItemSymbolMINMAXUnit
    Supply VoltageVDD-0.35.0V
    Input Signal VoltageVin-0.3VDD+0.3V
    Logic Output VoltageVOUT-0.3VDD+0.3V
    Operating TemperatureTOPR-3080
    Storage TemperatureTSTG-3080


    Driving Backlight


    ItemSymbolMINTYPMAXUnit
    LED currentIF-100-mA
    Power Consumption--mW
    LED VoltageVF-24-V
    LED Life TimeWBL25000-Hr

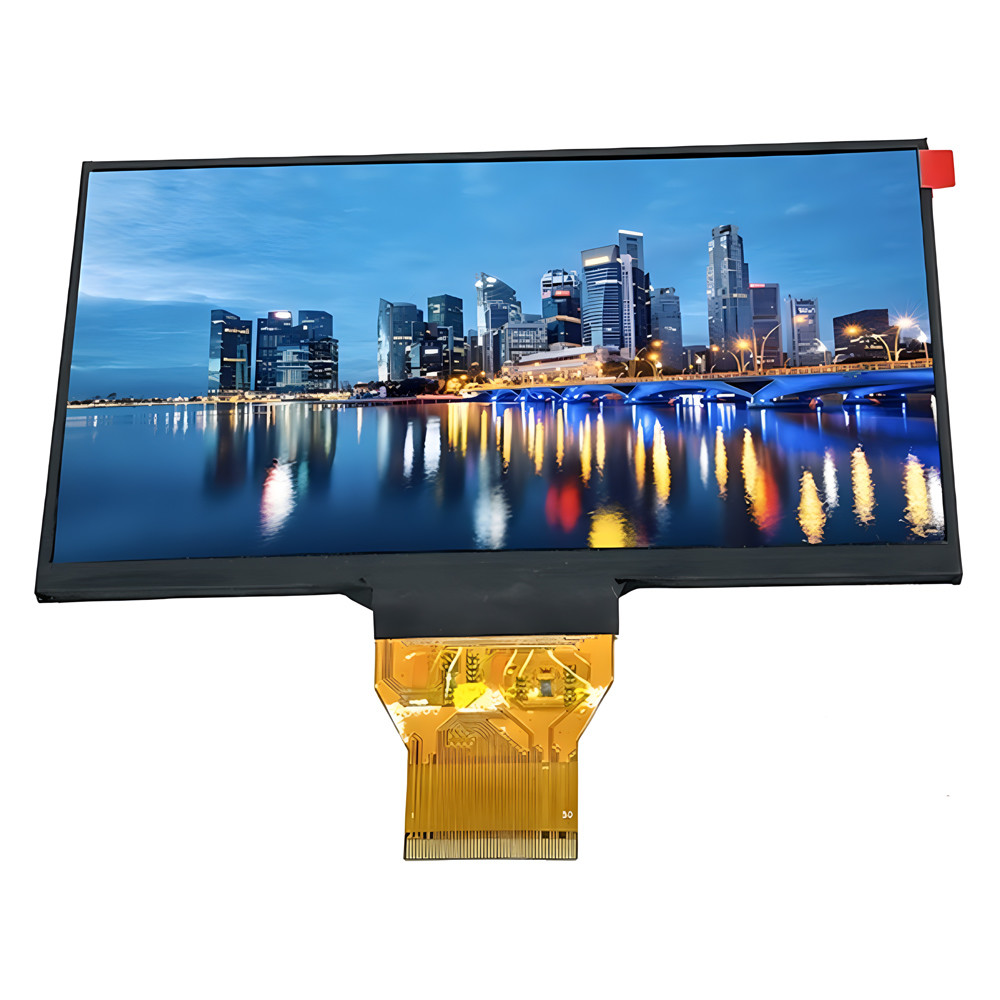

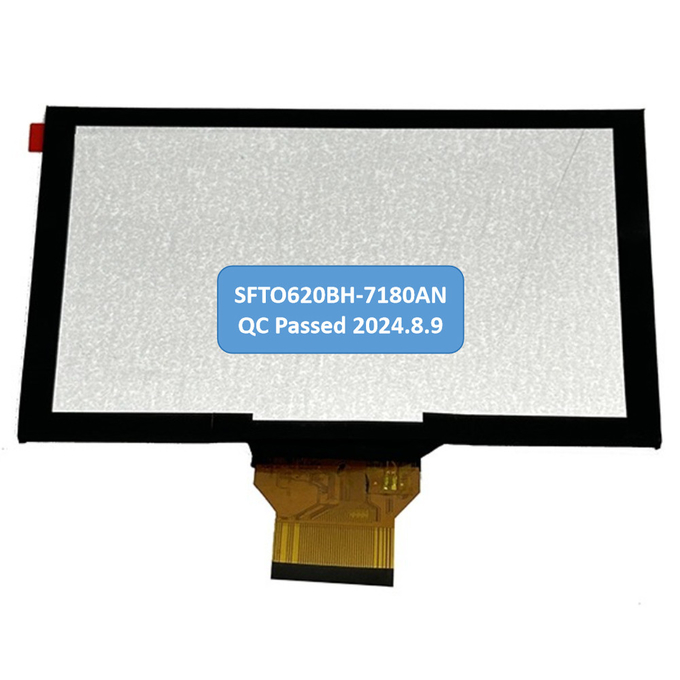

    6.2 Inch 1024*600 IPS TFT LCD RGB Interface Product Image

    6.2 Inch 1024*600 TFT LCD Display Module Automotive Industrial Grade IPS Screen Panel

    6.2 Inch 1024*600 TFT LCD Display Module Automotive Industrial Grade IPS Screen Panel

    Reliability Testing


    Test Item

    Test Condition

    Inspection after test
    High Temperature Operation85℃ for 96 hours

    After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects:
    1. Poor functionality, such as missing display, abnormal display, severe light explosion, etc. 2. There are no polarizing film bubbles, OCA bubbles, or other defects in the appearance.

    2. Each tested module can only be used for one of the testing projects

    Low Temperature Operation-30℃ for 96 hours
    High Temperature Storage85℃ for 96 hours
    Low Temperature Storage-30℃ for 96 hours
    High Temperature Operation Humidity Operation60℃, 90%RH for 72 hours
    Thermal Shock-10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles
    Vibration Test (No Operation)

    Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min

    Test Period: 6 Cycles for each direction of X, Y, Z

    Static electricity testTouch ±4KV,air touch ±8KV
