COG Module 128X64 Pixel FSTN Positive 3.3v Product Introduction

The 128x64 COG LCD is an extremely widely used low-cost graphic dot matrix module, thanks to its low cost, user friendliness, and ease of programming. SAEFDISPLAY offers over 1000 different sizes (VA) of standard products for customers to choose from, saving them high tooling costs. Please contact our sales team for specifications. The positive FSTN COG LCD can be equipped with backlights of different colors, such as yellow, green, white, orange, amber, and so on. On the negative display 128x64 COG LCD, white, blue and other color backlights can also be added, which can greatly enhance the contrast and viewing angle range of the display screen.

Features

• Dot Matrix: 128×64 Dots
• LCD Mode: FSTN/Positive/Transflective
• Controller IC:ST7565
• Driving Method: 1/65 Duty; 1/9 Bias
• Viewing Angie: 6 O’clock direction
• Interface: 6800-Series OR 8080 Series MPU
• Operating voltage: 3.0V
• Operating Temperature Range: -20 to +70℃
• Storage Temperature Range : -30 to +80℃
• Backlight Speciality : Led(3PCS) Vf=3.0±0.2V ,IF=45MA

Mechanical Specifications

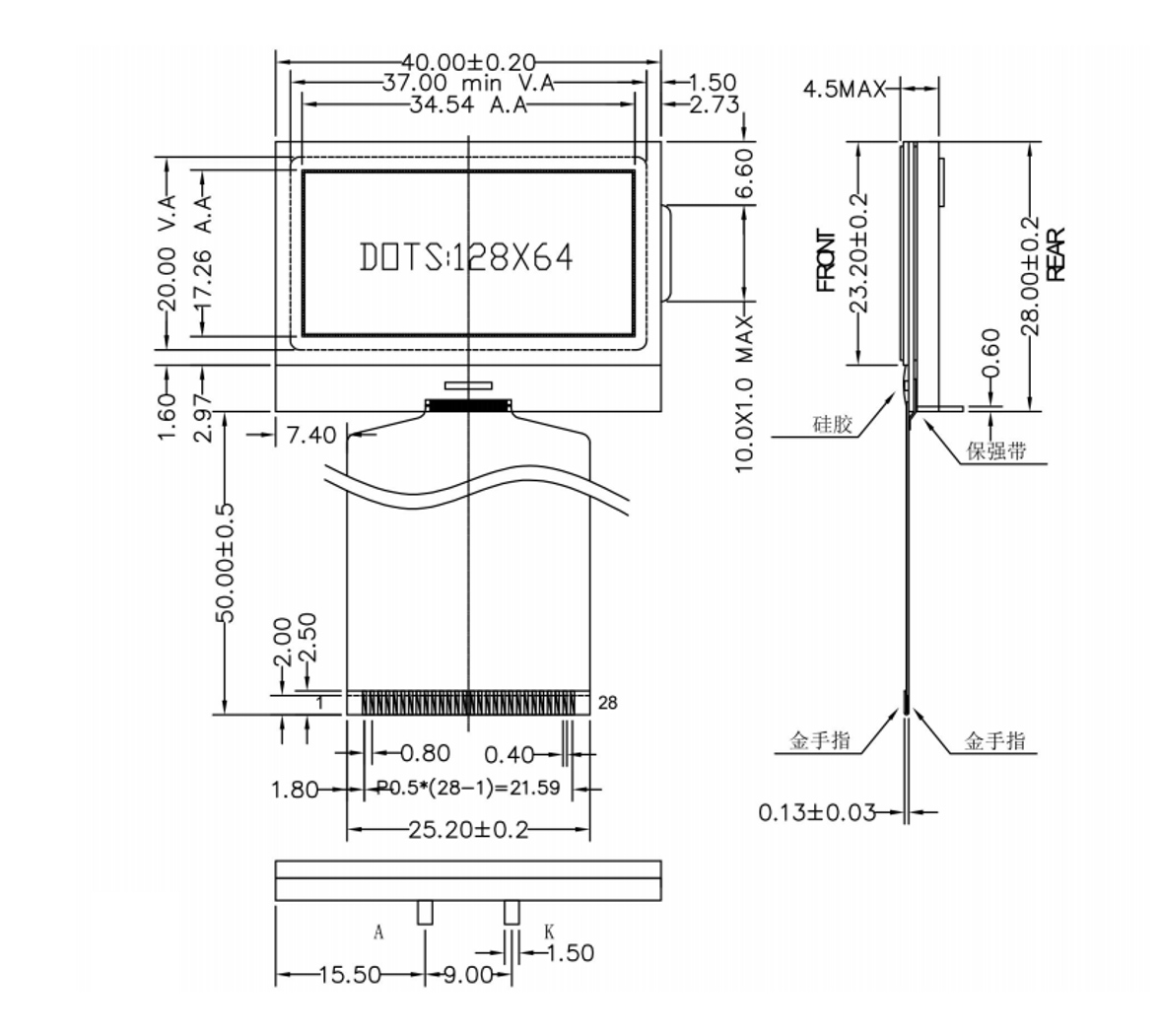

Drawing

Pin Definition

MAXIMUM ABSOLUTE LIMIT

BACKLIGHT CHARACTERISTICS (Color:White)
