    IPS TFT LCD 1.54 Inch Square Display 240*240 Dots Resolution SPI Interface

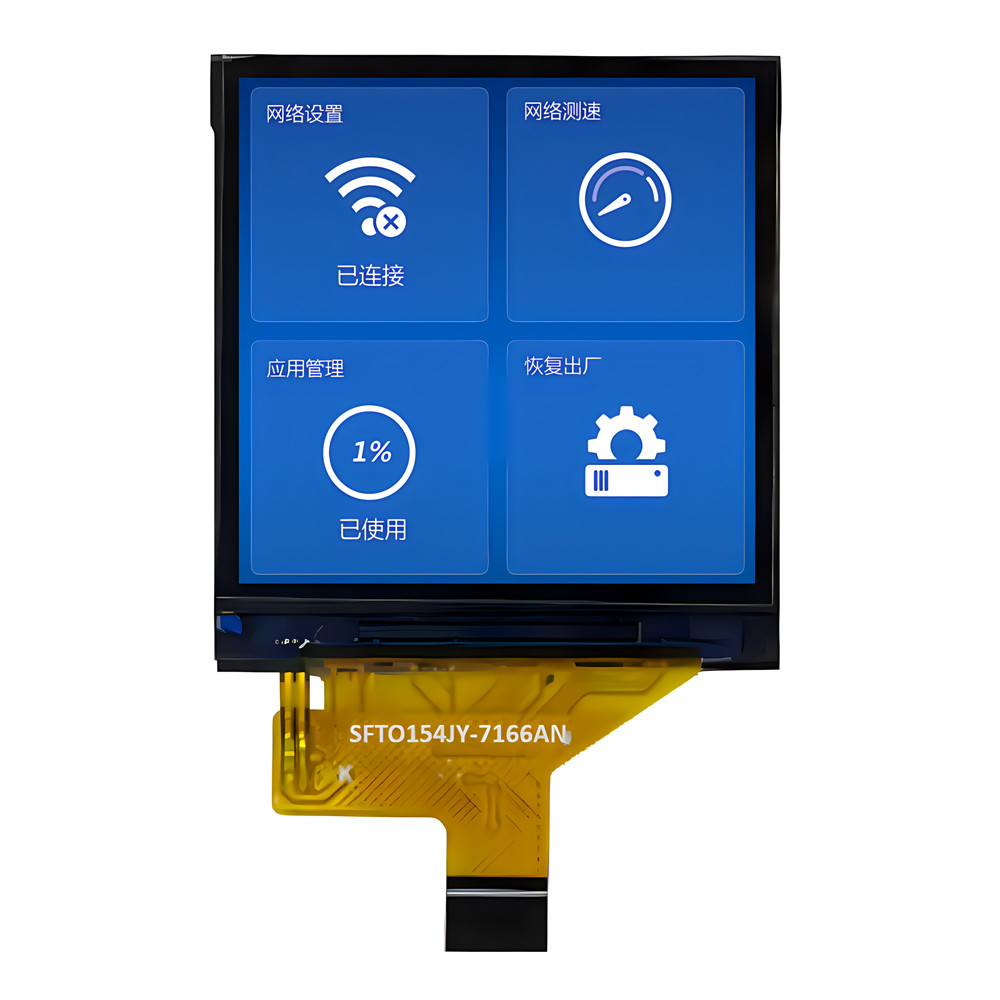

    IPS TFT 1.54 inch, SPI TFT LCD 1.54 inch Product Introduction


    Square display screen refers to a special LCD product with an aspect ratio of 1:1, which can be customized and cut according to the customer's design. Square screen displays are gradually attracting people's attention, with ultra-thin overall size, high brightness, long display life, and good heat dissipation. SAEFDISPLAY can provide square displays with sizes of 0.85 ", 1.3", 1.33 ", 1.4", 1.44 ", 1.54", 3.95 ", 4", and 7.6 ", which are more commonly used in handheld devices, smart home devices, and other special installation environments.


    SFTO154JY-7166AN is a full-color square TFT LCD display with a diagonal size of 1.54 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. The module size of SFTO154JY-7166AN is 31.52 x 33.72mm, and the active area size is 27.72 x 27.72mm. It is controlled by ST7789P3, with a logic power supply voltage range of 3.0V to 3.6V.


    This square TFT LCD can operate within a temperature range of -20 ℃ to+70 ℃, and its storage temperature range is -30 ℃ to+80 ℃. SFTO154JY-7166AN can be equipped with a newly designed resistive touch screen (RTP) or capacitive touch screen.


    Feature


    ItemSpecificationUnit
    Display ModeNormally Black, Transmissive/
    Viewing DirectionALL/
    Colors262K/
    Drive ICST7789/
    Interface Type4 Wire SPI/
    Dimensional Outline31.52(W) x 33.72(H) x 1.94(T)

    mm

    LCD Active Area27.72(W) x 27.72(H)

    mm

    Resolution240 RGB(H) x 240(V)pixels
    Pixel Pitch0.1155(W) x 0.1155(H)

    mm


    IPS TFT 1.54 inch, SPI TFT LCD 1.54 inch Product Drawing



    Pin Definition


    Pin.No

    SymbolDescription
    1GNDGround

    2

    D/C

    Register select pin

    D/C=’ 1’ : Display data.

    D/C=’0’ : Command data.

    3CS

    Chip select pin(“Low” enable)

    4SCLSerial clock pin
    5SDASerial data input / output
    6RESETLCM Reset pin
    7VCCPower supply for Analog(2.8V-3.3V)
    8GNDGround
    9LEDAAnode of Backlight
    10LEDKCathode of Backlight

    Maximum Ratings


    ParameterSymbolMinMaxUnit
    Logic Supply VoltageIOVCC-0.34.6V
    Analog Supply VoltageVCC-0.34.6V
    Operating temperatureTop-2070
    Storage temperatureTst-3080
    HumidityRH

    --

    90%(Max60C)RH

    Electrical Characteristics


    ParameterSymbolMinTypMaxUnit
    Logic Supply VoltageIOVCC1.651.8/2.83.3V
    Analog Supply VoltageVCC2.62.83.3

    --

    Input CurrentIdd

    --

    20

    --

    mA
    Luminance

    --

    250

    --

    Cd/m2

    Optical Specifications


    ParameterSymbolConditionMin.Typ.Max.Unit

    Viewing Angle Range

    HorizontalΘ3

    CR>10

    7580-Deg.
    Θ97580-Deg.
    VerticalΘ127580-Deg.
    Θ67580-Deg.
    Contrast ratio

    CR

    Θ = 0

    700

    900

    -

    -

    TransmittanceTr

    -

    4.65.4

    -

    %
    Color Gamut

    CG

    -

    45

    50

    -

    %

    Reproduction of color


    Red

    Rx

    Θ = 0

    0.6010.6310.661-
    Ry0.3000.2820.660-

    Green

    Gx0.2520.2820.312-
    Gy0.5140.5440.574-

    Blue

    Bx0.1080.1380.168-
    By0.1250.1550.185-
    White ChromaticityWx

    Θ = 0

    0.2610.2910.321-
    Wy0.3040.3340.364

    -

    Response TimeTr + Tf

    Ta= 25 C

    Θ = 0

    -

    30

    35

    ms


    IPS TFT 1.54 inch, SPI TFT LCD 1.54 inch Product Image

    IPS TFT LCD 1.54 Inch Square Display 240*240 Dots Resolution SPI InterfaceIPS TFT LCD 1.54 Inch Square Display 240*240 Dots Resolution SPI Interface

    IPS TFT LCD 1.54 Inch Square Display 240*240 Dots Resolution SPI Interface


    Reliability Test Condition


    No

    ITEM

    CONDITIONCRITERION

    1

    High Temperature (Non-Operating Test)

    80℃*240Hrs

    No Defect Of

    Operational Function In Room Temperature Are

    Allowable

    (.IDD of LCM in Pre-and Post-Test Should Follow Specification



    2

    Low Temperature (Non-Operating Test)

    -30℃*240Hrs


    3

    High Temperature/Humidity Non Operating Test

    60℃*90%RH*240Hrs

    4

    High Temperature Operating Test


    70℃*240Hrs


    5

    Low Temperature Operating Test

    -20℃*240Hrs

    6Thermal Shock Test-20 ℃(30Min)<>70 ℃(30Min) * 10CYCLES
