1.5 inch OLED, 128x128 Dots 1.5 inch OLED Display Product
Introduction
SAEF Technology SFOS150JY-7175AN is a 1.5 inch OLED (Organic Light
Emitting Diode) display with 128x128 dots resolution. This 1.5 oled
module is built in controller SH1107G oled IC; it supports 8-bit
6800 and 8080, 4-wire SPI and I2C interfaces. SAEF provides ZIF FPC
and Hotbar versions for customers to choose the suitable module for
your application.
SFOS150JY-7175AN is a COG structure OLED display this OLED module
is lightweight, low power and very thin, it is suitable for wall /
meter devices, home applications, POS system, Cloud/IoT system,
handheld instruments, intelligent technology devices, energy
systems, automotive, communication systems, medical instrument,
etc. The OLED module can be operating at temperatures from -30℃ to
+80℃; its storage temperatures range from -40℃ to +85℃.
SAEF Technology's graphic OLED display are available in three
mechanical structures include COB, COG and TAB passive matrix
technology. Available graphic monochrome OLED resolution in 50x16
OLED graphic display, 64x128 OLED, 100x16 OLED, 100x32 graphic
OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED
128x128, and 256x64 OLED Display. The graphic OLED display in the
SAEF product range have on-board controllers and interfaces include
parallel, serial, and I2C OLED, SPI OLED. These OLED display
modules have driven voltages of 3V, or 5V depending on
resolution/color.
SAEF offers a wide range of OLED display modules in sizes from
0.42" to 5.5" OLED, such as 0.42" micro OLED Display, 0.66" mini
OLED Display, 0.69" OLED, 0.91" OLED Display, 0.95" OLED, 0.96"
OLED Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED
Display, 5.5" OLED Display, and custom design solutions.
PHYSICAL DATA
| NO. | Items | Specification | Unit |
| 1 | Diagonal Size | 1.50 | Inch |
| 2 | Resolution | 128 * 128 | Dots |
| 3 | Active Area | 26.86(W) * 26.86(H) | mm |
| 4 | Outline Dimension | 33.90(W) * 37.30(H) | mm |
| 5 | Pixel Pitch | 0.210(W) * 0.210(H) | mm |
| 6 | Pixel Size | 0.185(W) * 0.185 (H) | mm |
| 7 | Driver IC | SH1107G-02 | - |
| 8 | Display Color | White | - |
| 9 | Gray Scale | 1 | Bit |
| 10 | Interface | Parallel / SPI / IIC | - |
| 11 | IC Package Type IC | COG | - |
| 12 | Module Connecting Type | ZIF | - |
| 13 | Thickness | 1.45±0.1 | mm |
| 14 | Weight | TBD | g |
| 15 | Duty | 1/128 | - |
1.5 inch OLED, 128x128 Dots 1.5 inch OLED Display Product Drawing
ABSOLUTE MAXIMUM RATINGS
| Items | Min. | Max. | Unit | Remark |
| Supply Voltage(VDD) (VDD) | -0.3 | +3.6 | V | IC maximum rating IC |
| Supply Voltage(VPP) (VPP) | -0.3 | +17 | V | IC maximum rating IC |
| Operating Temperature(TOP) | -30 | 80 | ℃ | - |
| Storage Temperature(TST) (TST) | -40 | 85 | ℃ | |
ELECTRICAL CHARACTERISTICS
| Items | Symbol | Min. | Typ. | Max. | Unit |
Supply Voltage | Logic Supply Voltage IC | VDD | 1.65 | 3.0 | 3.5 | V |
| Operating(for OLED panel) | VPP | 12.5 | 13.0 | 13.5 | V |
Input Voltage | High Voltage | VIH | 0.8 * VDD |
- | VDD | V |
| Low Voltage | VIL | VSS |
- | 0.2 * VDD | V |
Output Voltage | High Voltage | VOH | 0.8 * VDD |
- | VDD | V |
| Low Voltage | VOL | VSS |
- | 0.2 * VDD | V |
ELECTRO-OPTICAL CHARACTERISTICS
| Items | Symbol | Min. | Typ. | Max. | Unit | Remark |
| Operating Luminance | L | 80 | 100 | - | cd/m2 | 100% pixels on |
| Power Consumption | P | - | 120 | 150 | mW | 30% pixels on |
| Frame Frequency | Fr | - | 100 | - | Hz | - |
| Color Coordinate | Blue | CIE x | 0.25 | 0.29 | 0.33 |
CIE1931 |
Darkroom |
| CIE y | 0.29 | 0.33 | 0.37 |
| Response Time | Rise | Tr | - | 10 | - | us | - |
| Decay | Td | - | 10 | - | us | - |
| Contrast Ratio | Cr | 10000:1 | - | - | - | Darkroom |
| Viewing Angle | △θ | 160 | - | - | Degree | - |
| Operating Life Time | Top | 20,000 | - | - | Hours | L= 100 cd/m2 |

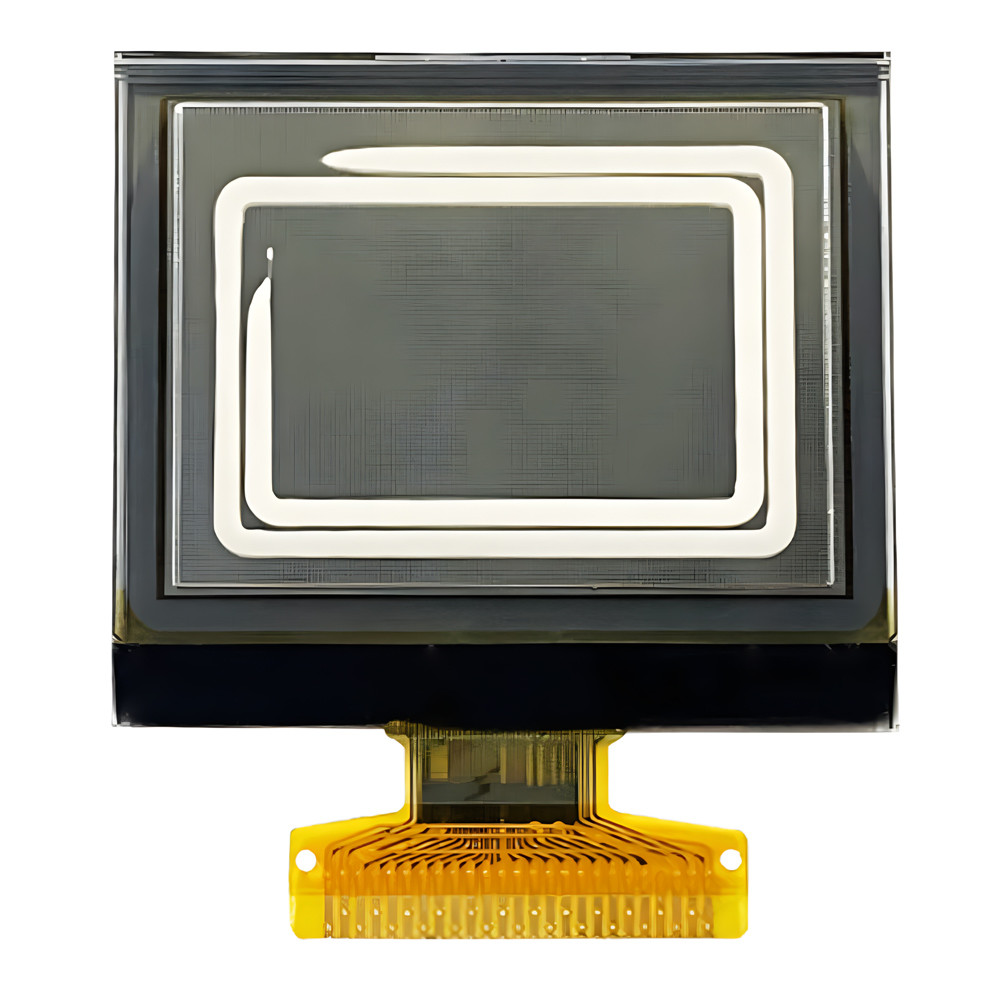

1.5 inch OLED, 128x128 Dots 1.5 inch OLED Display Product Image
