Automotive Grade 3.6-inch Circular TFT LCD Display Module
Description
Circular IPS LCD screens, as an emerging display technology, have
gradually attracted the attention of users due to their unique
advantages and wide application scenarios. The rounded corner
design makes the screen edges smoother and the visual effect more
comfortable. At the same time, this design also makes the screen
more ergonomic and convenient to use. Adopting high-definition IPS
LCD screen can present more detailed and realistic picture effects,
and also enhance the user's visual experience. The advantage of a
circular IPS LCD screen is low energy consumption, which means it
generates less heat during operation and does not require large
heat sinks, thereby reducing energy waste and environmental
pollution.
TS8036WV001-T is a 3.6-inch TFT module with 544x506 resolution IPS
technology. This round TFT LCD is equipped with IC ST72566 and
supports RGB 24 bit interface. Equipped with a 5-point PCAP touch
screen that supports I2C interface. Its multi touch functionality
and excellent visual performance make it an ideal choice for
demanding applications.
This display combines cutting-edge display technology, powerful
performance, and multi-functional compatibility, making it the best
solution for various automotive, industrial, medical, and smart
home applications.
Features
-Low Input Voltage: VDD: 2.7~3.6V;
-Display Colors of TFT LCD: 16.7M colors
-CPU Interface: -RGB 24BIT
-Internal Power Supply Circuit.
General Information Items
| Specification | Unit |
| Main Panel |
| Display area(AA) | 89.76(H) *83.49(V) (3.6inch ) | mm |
| Driver element | a-Si TFT active matrix | - |
| Display colors | 16.7M | colors |
| Number of pixels | 544(RGB) *506 | dots |
| Pixel arrangement | RGB vertical stripe | - |
| Pixel pitch | 0.165(H) *0.165(V) | mm |
| Viewing angle | ALL | o'clock |
| Drive IC | ST72566 | - |
| Color Pixel Arrangement | RGB vertical stripe | |
| Display mode | Transmissive/ Normally Black | - |
| Operating temperature | -30～+85 | ℃ |
| Storage temperature | -30～+85 | ℃ |
Mechanical Information
Item
| Min. | Typ. | Max. | Unit | Note |
| Module size | Horizontal(H) | - | 107.13 | - | mm | -0.1 |
| Vertical(V) | - | 107.13 | - | mm | -0.1 |
| Depth(D) | - | 9.76 | - | mm | ±0.4 |
| Weight | - | TBD | - | g | - |
Automotive Grade 3.6-inch Circular TFT LCD Display Module Drawing
PIN Description
PIN NO. | SYMBOL | LEVEL | DESCRIPTION |
| 1 | LEDK | L | Backlight- |
| 2 | LEDA | H | Backlight+ |
| 3 | GND | H | power ground |
| 4 | VCC | H | power supply(2.7-3.6V) |
| 5-12 | R0-R7 | H/L | Red data bus |
| 13-20 | G0-G7 | H/L | Green data bus |
| 21-28 | B0-B7 | H/L | Blue data bus |
| 29 | GND | L | power ground |
| 30 | DCLK | H/L | Pixel clock signal pin |
31 | DISP | H/L | connected to VDD in normal operation mode. connected to GND, the IC
is in standby mode. |
| 32 | HSYNC | H/L | Horizontal sync. |
| 33 | VSYNC | H/L | Vertical sync. |
| 34 | DE | H/L | Data enable signal |
35 | AUTODL | H/L | OPT function control pin |
| 36 | CS | H/L | Chip select input pin |
| 37 | SCL | H/L | Serial clock input. |
| 38 | SDA | H/L | Serial data input pin |
| 39 | NTC1 | / | Connect thermistor |
| 40 | NTC2 | / | Connect thermistor |
ABSOLUTE MAXIMUM RATINGS
Item | Symbol | Values | Unit |
| Min | Max. |
| Supply Voltage for Logic circuit | IOVCC | -0.3 | 4.6 | V |
| Supply Voltage for analog circuit | VCI | -0.3 | 4.6 | V |
DC ELECTRICAL CHARACTERISTICS
Item
|
Symbol | Values |
Unit |
Remark |
| Min | Typ | Max. |
| Power Supply | VCC | 2.7 | 2.8 | 3.3 | V | |
| Normal mode Current consumption | Icc | - | - | 55 | mA | VCC=3.3V |
| TFT Gate ON Voltage | VGH | 11.5 | 12 | 16 | V | |
| TFT Gate OFF Voltage | VGL | -8 | -12 | -12 | V | |
BACKLIGHT UNIT CHARACTERISTICS
Item
|
Symbol | Values |
Unit |
Remark |
| Min | Typ | Max. |
| Forward supply Voltage | Vf | 13.5 | - | 16 | V | |
| Forward supply Current | If | - | 180 | - | mA | |
| LCM Luminance | LV | 800 | 1000 | - | cd/m2 | IB=180mA |
| Uniformity | / | 80 | | | % | - |

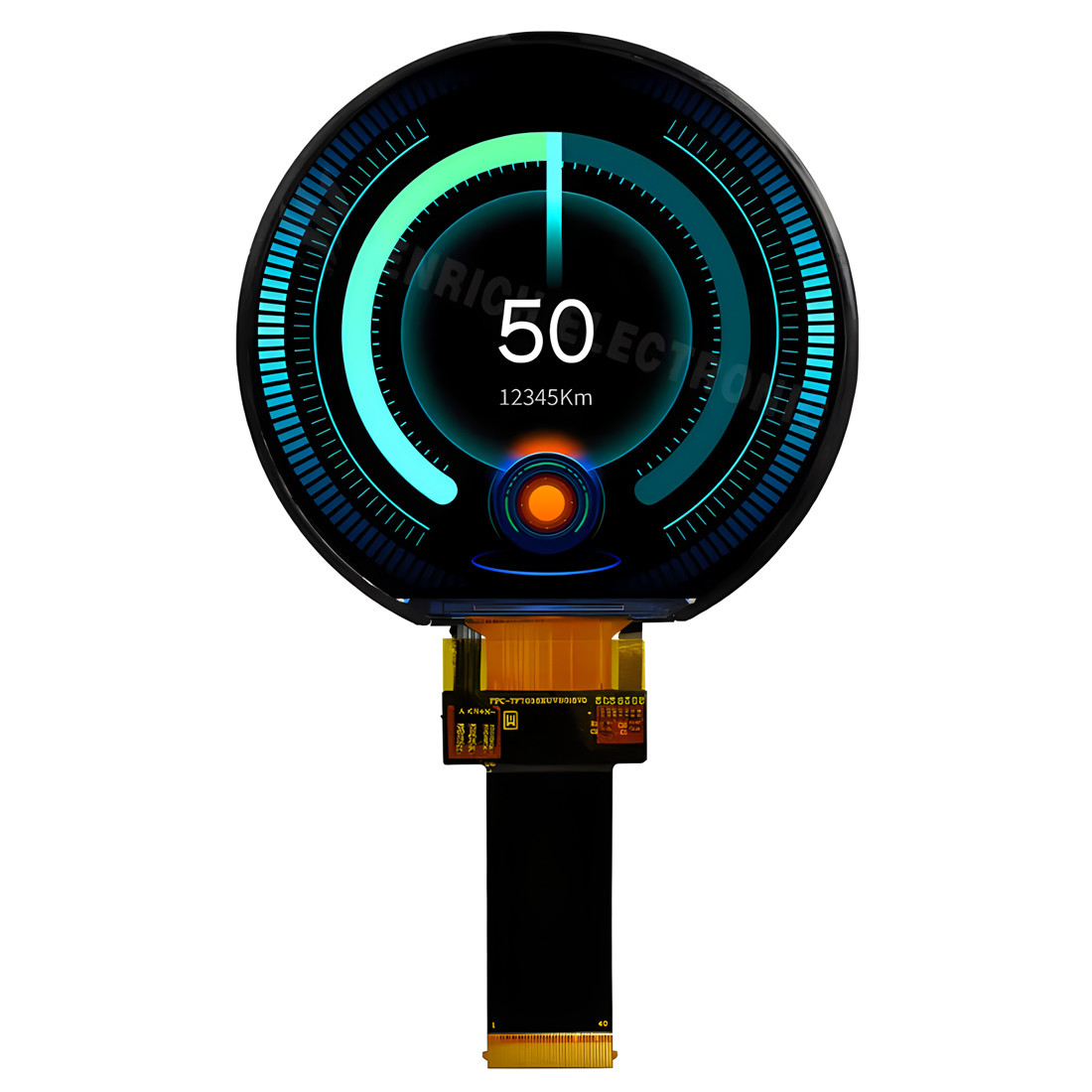

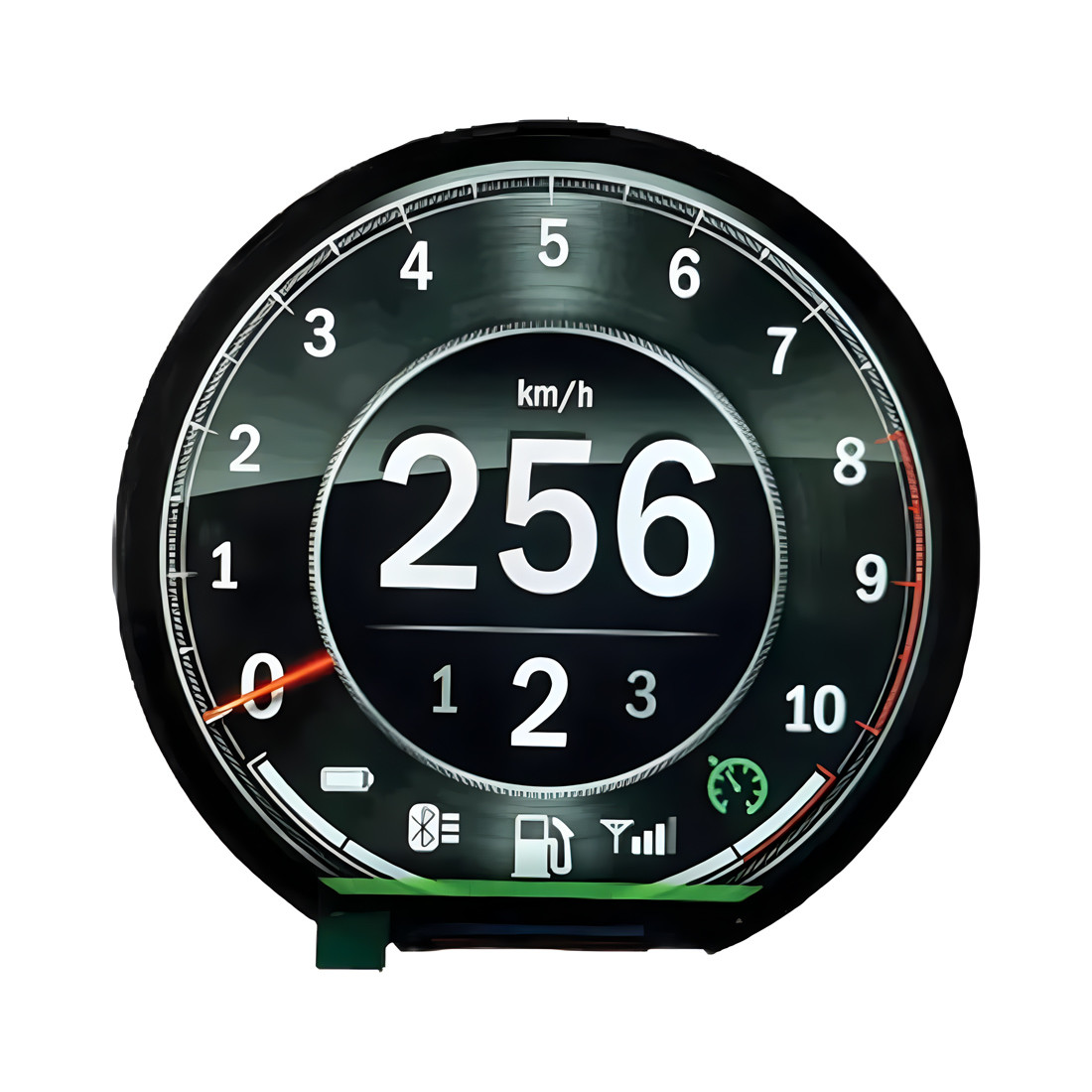

Automotive Grade 3.6-inch Circular TFT LCD Display Module Product Image
