SF-TC240H-8269B-T SPECIFICATION (2019-12-12) _20...

Description

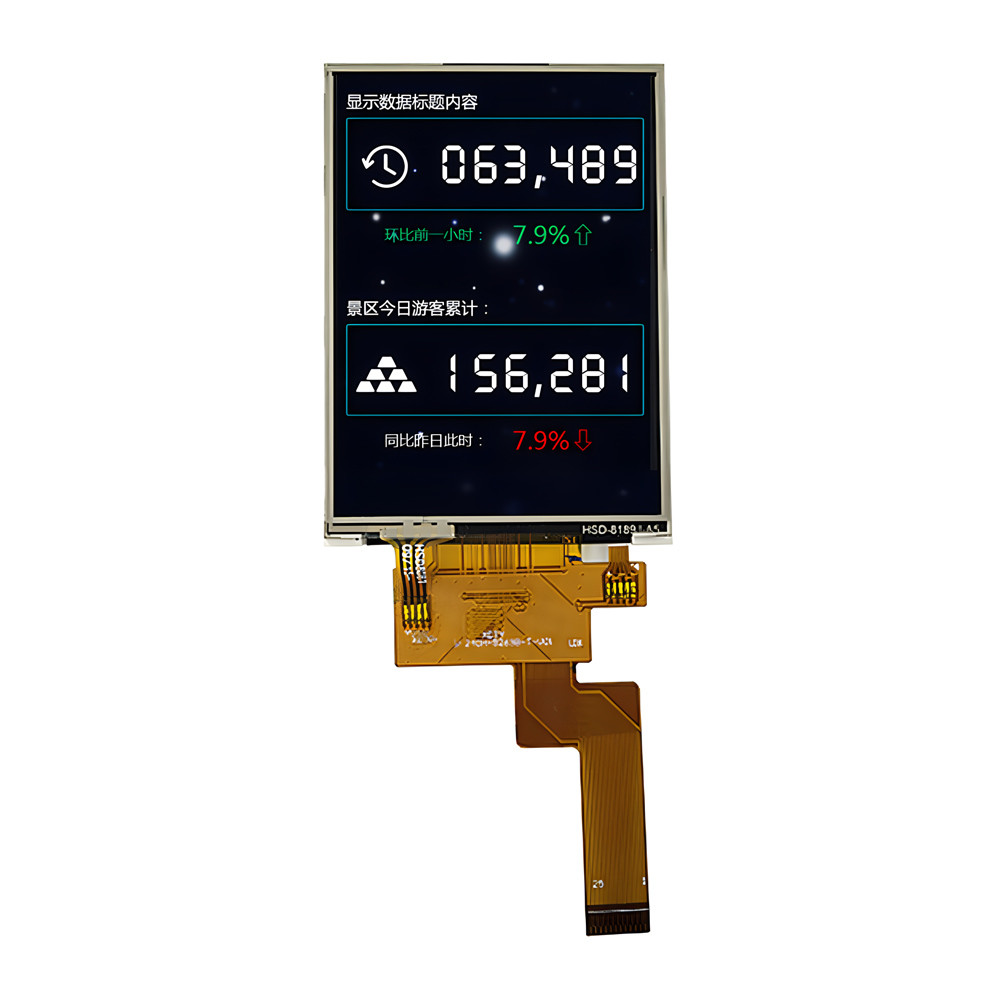

SAEF TECHNOLOGY SF-TC240H-8269B-T is a IPS type TFT LCD display with a diagonal size of 2.4 inches. Its display resolution is 240x320 QVGA, and due to the use of IPS technology, the product has an 80 degree viewing angle from any direction. The external dimensions of this product are 60.26 * 42.72 * 3mm, using ST7789V driver IC and MCU interface. The working temperature range of this product is -20 ° C to+70 ° C, which can meet the requirements of the vast majority of product applications. This product is equipped with a resistive touch screen (RTP), which is more convenient to use and provides a very good user experience.

Feature

Application
This 2.4” TFT LCD module is widely used in remote control, medical handheld device, small measuring instrument, analyzers, smart watch, wearable devices, etc.


Drawing


PIN Description

Maximun Absolute Limit

LED Backlight specifications

Resistive Touchscreen Specifications

Optical Characteristics

Product Photo

Factory Facilities and Certificates
