    10.1-Inch TFT LCD Display - High-Res Touchscreen, Best Price for USA Market | Industrial & Automotive Use

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SFTO1010YX-7239ACT
    Certification : ISO9001 / ISO14000
    Price : The lowest market price guaranteed
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    10.1-Inch TFT LCD Display - High-Res Touchscreen, Best Price for USA Market | Industrial & Automotive Use


    About this product: SFTO1010YX-7239ACT

    Upgrade your devices with the 10.1-Inch TFT LCD Display, a versatile and high-performance solution designed for a wide range of applications. Whether you're developing industrial panels, automotive displays, or interactive kiosks, this display delivers exceptional clarity, durability, and functionality.


    Key Features


    • High-Resolution Touchscreen: Enjoy crisp, vibrant visuals and seamless touch interaction, perfect for interactive devices and POS systems.
    • Industrial-Grade Durability: Built to withstand harsh environments, this display is ideal for industrial control panels and medical equipment.
    • Automotive-Ready Performance: With high brightness and wide temperature tolerance, it’s perfect for automotive dashboards and infotainment systems.
    • Best Price for USA Market: We offer competitive pricing without compromising on quality, making it an affordable choice for businesses across the USA.


    Applications


    • Industrial Panels: Reliable and customizable for factory automation and machinery.
    • Automotive Displays: High-resolution and durable for in-car entertainment and navigation.
    • Kiosks & POS Systems: Touchscreen functionality enhances user interaction in retail and hospitality.
    • Interactive Devices: Perfect for educational tools, smart home controls, and gaming systems.


    Why Choose Us?


    As a trusted TFT display manufacturer, we specialize in delivering high-quality, customizable solutions tailored to your needs. Our 10.1-Inch TFT LCD Display combines cutting-edge technology with affordability, making it the ideal choice for your next project.

    Explore Our Full Range


    From industrial displays to IoT solutions, we offer a wide range of products to meet your requirements. Visit our website to learn more and request a quote today!


    General Specifications


    ParameterSpecificationUnit
    LCD size10.1inch
    LCM Outline Dimension143.00(H)X228.6(V)X2.6(T)mm
    Active area135.36(H)X216.58(V)mm
    Number of pixel800RGB(H)X1280(V)pixels
    Pixel pitch H XV0.1692(H)X 0.1692(V)mm
    Pixel arrangementRGB Vertical stripecolors
    Display colors16.7M
    Display modeNormally Black
    Color GamutTyp. 56%, Min. 52%NTSC
    BrightnessTyp:300 , Min: 250cd/m2
    LED Q'ty32 (4Serial 8Paralle)
    Viewing angle (CR 10)Typ:80/80/80/80
    Contrast RatioTyp 1000:1,min 800:1
    Driver ICJD9365DA-H3
    Interface3/4 Lane MIPI (Default 4 Lane)
    Module WeightTBDg
    Touch ICGT9271
    Touch structureG+G

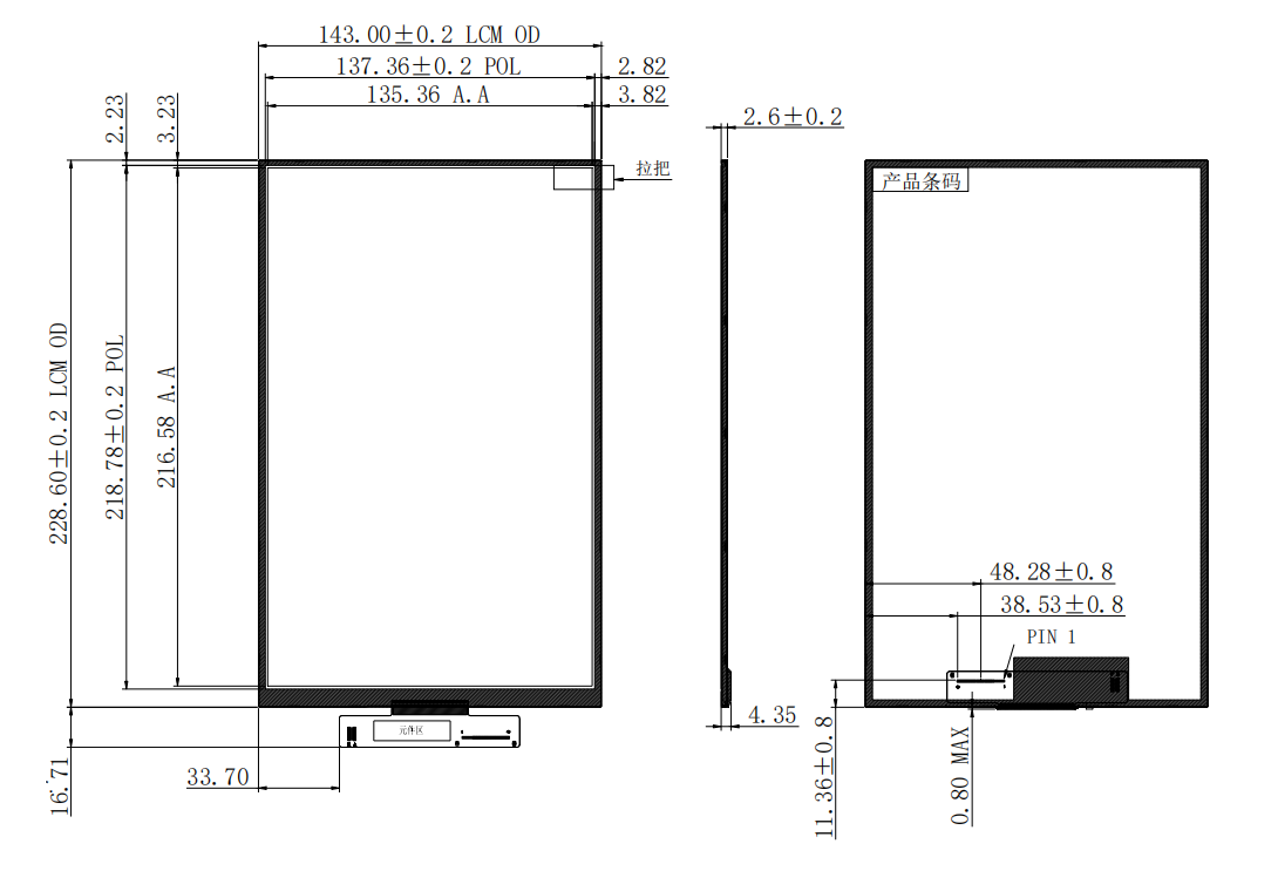

    Outline Drawing


    Touchscreen Outline Drawing



    Interface Pin Description


    Pin No.SymbolFunction
    1NCNo connect
    2VCCPower supply 3.3V
    3IOVCCPower supply 1.65~3.3V
    4GNDGround
    5RST(GRB)LCM Global reset(Reset :H= IOVCC)
    6NCNo connect
    7GNDGround
    8D0-MIPI differential data input (Negative)
    9D0+MIPI differential data input (Positive)
    10GNDGround
    11D1-MIPI differential data input (Negative)
    12D1+MIPI differential data input (Positive)
    13GNDGround
    14CLK-MIPI differential clock input (Negative)
    15CLK+MIPI differential clock input (Positive)
    16GNDGround
    17D2-MIPI differential data input (Negative)
    18D2+MIPI differential data input (Positive)
    19GNDGround
    20D3-MIPI differential data input (Negative)
    21D3+MIPI differential data input (Positive)
    22GNDGround
    23-24NCNo connect
    25GNDGround
    26-29NCNo connect
    30GNDGround
    31LEDKBacklight Cathode
    32LEDKBacklight Cathode
    33-38NCNo connect
    39LEDABacklight Anode
    40LEDABacklight Anode

    Absolute Maximum Ratings


    ItemSymbolValuesUnit
    Min.Max.

    Power Voltage

    		IOVCC-0.33.6V
    VCC-0.36.0V
    AVEE----V
    Input Signal VoltageVI-0.3IOVCCV
    Operation TemperatureTOP-2070℃
    Storage TemperatureTST-3080℃

    Backlight Characteristics


    CharacteristicsSymbolMin.TypeMax.Unit
    LED Forward currentIF--180225mA
    LED Forward Voltage of every LED StringVF-string11.6--13.6Volt
    LED life time

    N/A

    30000

    40000

    --

    Hr

    Optical Characteristics

    ItemSymbolConditionValues
    Min.Typ.Max.

    Viewing angle

    		Θu

    CR≧10

    		8085-
    ΘD8085-
    ΘL8085-
    ΘR8085-
    Response timeTON+TOFF

    θ=Φ =0 °

    Normal

    viewing angle

    -

    		3040
    Contrast ratioCR8001000

    -

    LuminanceL280300-
    Luminance uniformityYU7580-

    Color chromaticity

    (CIE1931)

    White

    		WX0.320
    WY0.346

    Red

    		RX0.644
    RY0.329

    Green

    		GX0.328
    GY0.565

    Blue

    		BX0.137
    BY
    NTSC57%

    Product Photo

    10.1-Inch TFT LCD Display - High-Res Touchscreen, Best Price for USA Market | Industrial & Automotive Use10.1-Inch TFT LCD Display - High-Res Touchscreen, Best Price for USA Market | Industrial & Automotive Use10.1-Inch TFT LCD Display - High-Res Touchscreen, Best Price for USA Market | Industrial & Automotive Use
    Environmental / Reliability Tests


    NoTest ItemConditionRemarks
    1High Temperature OperationTs= +70℃ , 240hrs

    Note 1

    IEC60068-2-2, GB2423. 2-89

    2Low Temperature OperationTa= -20℃ , 240hrsNote 2 IEC60068-2-1 GB2423.1-89
    3High Temperature StorageTa= +80℃ , 240hrsIEC60068-2-2 GB2423. 2-89
    4Low Temperature StorageTa= -30℃ , 240hrsIEC60068-2-1 GB/T2423.1-89
    5High Temperature & Humidity StorageTa= +60℃ , 90% RH max, 160 hours

    IEC60068-2-3

    GB/T2423.3-2006

    6Thermal Shock (Non-operation)-30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle

    Start with cold

    temperature, end with

    high temperature

    IEC60068-2-14,

    GB2423.22-87


    7

    		Electro Static Discharge (Operation)

    C=150pF, R=330 Ω , 5 points/panel

    Air:±8KV, 5 times; Contact: ±4KV, 5

    times; (Environment: 15℃ ~

    35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)

    IEC61000-4-2

    GB/T17626.2-1998


    8


    Vibration

    (Non-operation)

    Frequency range: 10~55Hz, Stroke:

    1.mm Sweep: 10Hz~55Hz~10Hz

    2 hours for each direction of X .Y. Z.

    (package condition)

    IEC60068-2-6

    GB/T2423.5-1995

    9Shock (Non-operation)

    60G 6ms, ± X, ±Y , ± Z

    3 times for each direction

    		IEC60068-2-27 GB/T2423.5-1995
    10Package Drop Test

    Height: 80 cm, 1 corner, 3 edges,

    6 surfaces

    		IEC60068-2-32 GB/T2423.8-1995
