Landscape 3.9 inch 480*128 TFT display, TFT LCD RGB 3.9 inch
Product Features:
1. SF-TO390YH-8960A-CT TFT LCD module is a 3.9 inch diagonal
480xRGBx128 full color bar type TFT Module..
2. This module supports RGB 24 bits Interface. it is having module
dimension of 105.5x40.64x5.28 mm and Active area size of
95.04x25.34 mm;
3. SF-TO390YH-8960A-CT is integrated with ST7282A controller on
module, and its logic supply voltage ranges from 2.6V to 3.3V. The
module is with 500cd/m2 (nits) surface brightness, this LCD Display
Module can be operating at temperatures from–20℃ to +70℃.
4. This 3.9" TFT LCD can be custom design with Resistive touch
screen and capacitive touch screen.
| Item of general information | Contents |
| LCD Display Size (Diagonal) | 3.9 inch TN |
| Module Structure | TFT Display + PCAP |
| LCD Display Type | TFT/TRANSMISSIVE |
| LCD Display Mode | Normally Black |
| Recommended Viewing Direction | 12 o’clock |
| Module size (W×H×T) | 105.5x40.64x5.28 mm |
| Active area (W×H) | 95.04×25.34 mm |
| Number of pixels (Resolution) | 480RGB×128 pixel |
| Pixel pitch (W×H) | 0.135×0.135 mm |
| Module Interface Type | 24 bit RGB interface |
| Driver IC | ST7282A |
| Color Numbers | 16.7M |
| Backlight Type | White LED |
Product Advantages:
1.The mainstream aspect ratio of the TFT LCD panel in the market is
4:3 or 16:9. But for some applications, bar type shape of display
panel would be much better than the current mainstream 4:3 or 16:9
to display the required information.
2.We offer different sizes Bar Type TFT (Stretched Bar LCD Display)
including sizes of 3.9 inch, 4.6 inch and 5.2 inch. In order to
meet with customers requirement especially for industrial
applications.
3.We develop more derivative solution from these Bar type TFT as
below: 1- With screw hole on frame version option. 2- With
Capacitive Touch Panel or Resistive Touch Panel option. 3- High
Brightness version option.
4. Excellent display performance of background color, luminance,
viewing angle, and intensity, etc.
5. Wide Temperature of Top of -20℃ to +70℃ and high quality level for industrial applications.
6. Price competitive solution with good quality among the same
kinds in the LCD industry.
7. Easy to install and easy to maintain.
Applications:
This LCD module can be used in embedded systems, industrial device,
security and hand-held equipment which require display in high
quality and colorful image. SAEF Bar Type TFT-LCD displays are
perfect for industrial equipment, automotive application, server
system, POS system, dynamic information displays and advertising
display.
Landscape 3.9 inch 480*128 TFT display, TFT LCD RGB 3.9 inch Product Drawing

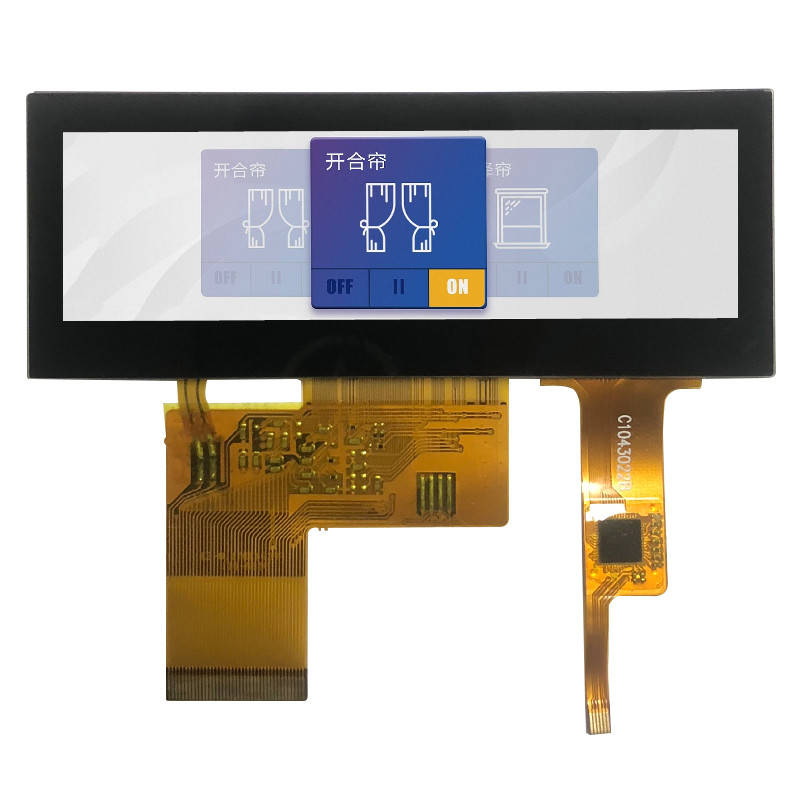

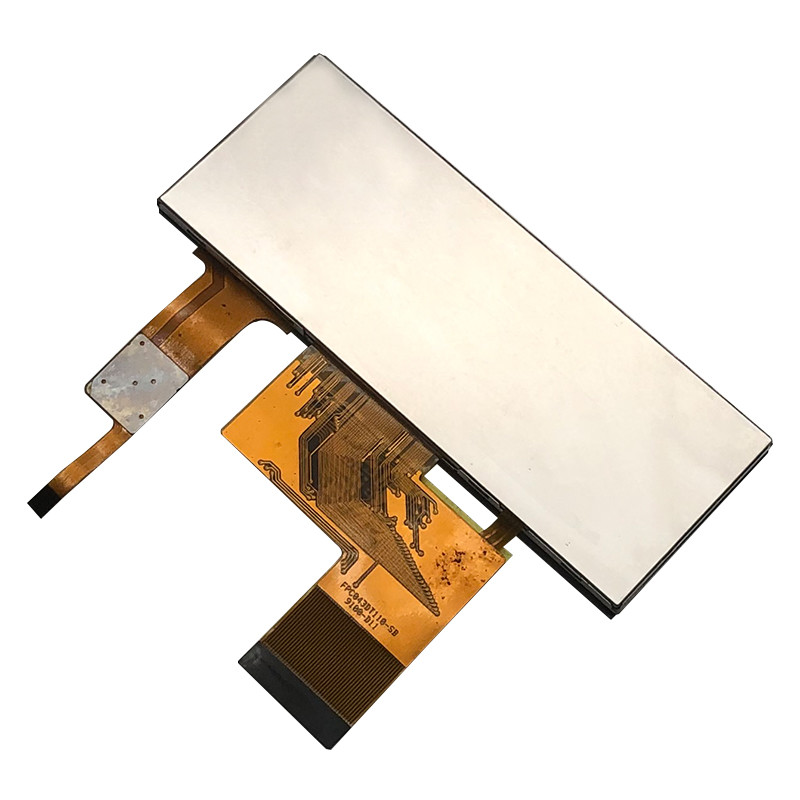

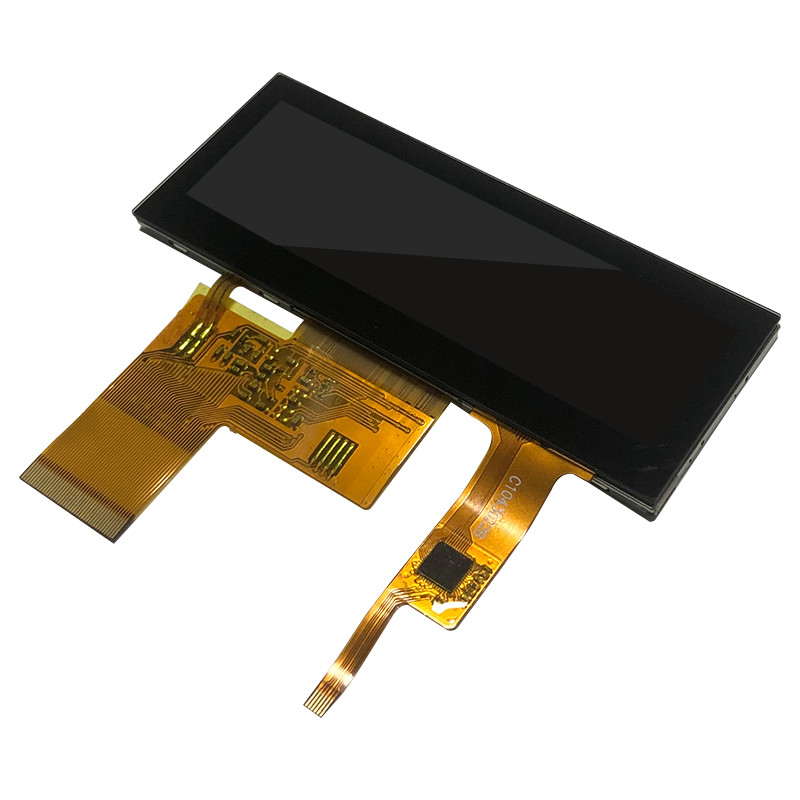

Landscape 3.9 inch 480*128 TFT display, TFT LCD RGB 3.9 inch Product Image
Input/Output Terminals
Pin1, VBL- Backlight LED Cathode
Pin2, VBL+ Backlight LED Anode.
Pin3, GND System Ground
Pin4, VCC Power supply for logic operation
Pin5~12, R0~R7 Data bus
Pin13~20, G0~G7 Data bus
Pin21~28, B0~B7 Data bus
Pin29, GND System Ground
Pin30, CLK Pixel clock signal
Pin31, DISP Display on/off control
Pin32, HSYNC Horizontal Sync signal
Pin33, VSYNC Vertical Sync signal
Pin34, DEN Data Enable Remark: internal pulled weak low
Pin35, NC No connection
Pin36, GND System Ground
Pin37, XR(NC) The right side signal of TP
Pin38, YD(NC) The down side signal of TP
Pin39, XL(NC) The left side signal of TP
Pin40, YU(NC) The up side signal of TP
