128x64 LCD Display SPI Interface ST7567 COG STN LCM Yellow Green Background Color

COG LCD 128x64, 128x64 SPI LCD Display Description

SAEF Technology 128x64 Monochrome Displays COG LCD SF12864-207B is built in with ST7567 IC which supports SPI interface. The display is having the outline dimension 65.8 x 36.8 x 6.2 mm and VA size of 53.0 x 24.6 mm. This Monochrome Display can be operating at temperatures from -0℃ to +50℃; its storage temperatures range from -10℃ to +60℃. This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.

Pin Definition:

Pin1, /CS, Chip Select , When /CS= “L”, chip is selected

Pin2, /RST, When /RST= “L”, the settings are initialized

Pin3, A0, Select register data when A0= “H”, and instruction when A0= “L”

Pin4, SCL Serial clock input terminal

Pin5, SDA Serial data input terminal

Pin6, VDD Supply voltage for logic circuit +3.3V

Pin7, GND Ground

Pin8, V0 LCD driving voltage for common circuits at negative frame.

Pin9, XV0 LCD driving voltage for common circuits at positive frame.

Pin10, VG LCD driving voltage for segment circuits

SAEF’s Graphic Display Modules are in the range of COB/COG structures. The Monochrome Graphic LCD display are included 122x32 LCD, 128x64 LCD, 128x128 LCD, 160x32 LCD, 160x80 LCD, 160x128 LCD, 160x160 LCD, 192x32 LCD, 192x64 LCD, 240x64 LCD, 240x128 LCD, 240x160 LCD, 320x240 LCD. SAEF's monochrome Graphic LCD Display Module are available in STN/FSTN with LED backlight with different interfaces in 6800,SPI,8080,I2C. Character font options are English, Japanese, Europe, Cyrillic, Hebrew, Chinese Traditional, Chinese Simplified, Korean etc.

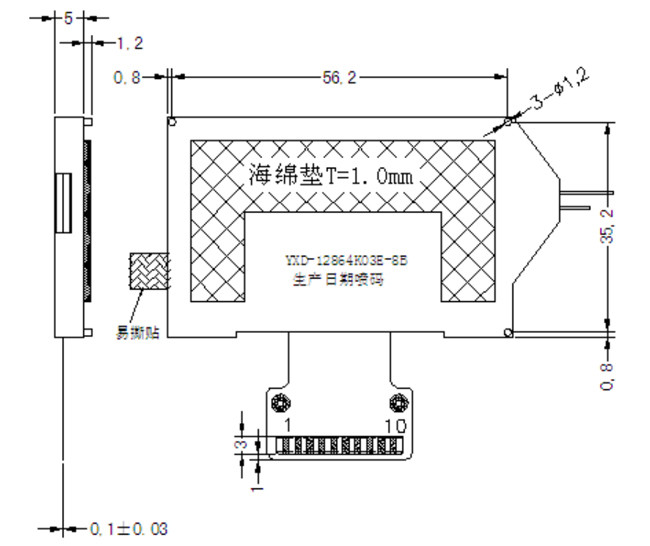

COG LCD 128x64, 128x64 SPI LCD Display Drawing

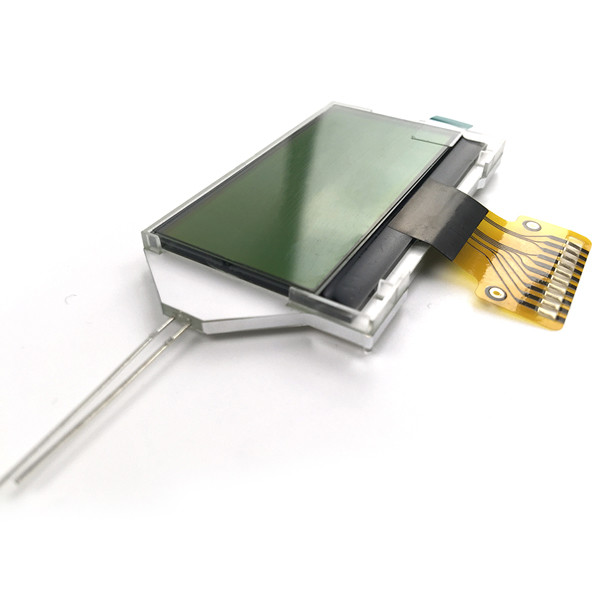

COG LCD 128x64, 128x64 SPI LCD Display Real Product Image
