0.69 Inch OLED Display Module 96x16 Graphic SSD1306 OLED

OLED Display 0.69” inch Description
SF-OS069-9616-01 model is a consumer-grade COG OLED display, diagonal size 0.69 inch, made of resolution 96x16 pixels. This 0.69 inch OLED Display module is built-in with SSD1306 IC; it supports the I2C interface, the supply voltage for logic 3V (VDD), the supply voltage for display 7.25V (VCC), driving duty 1/16.
SF-OS069-9616-01 model is a small-size 0.69 inch COG OLED display that is ultra-thin, lightweight, and has low power consumption. It is very suitable for smart home applications, medical devices, portable devices, wearable devices, etc. It can be operated at temperatures from -40℃ to +85℃.

SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages:

• Faster response time “At +25 ℃ 10 μsec.”
• Unlimited viewing angle “Up to 175 degree”
• Thin – No need of backlight, self emitting
• High Brightness
• High contrast ratio “Up to 10,000:1”
• Wide Operation Temperature “-40 ℃ ~ 80 ℃”
• Lower power consumption

OLED Display 0.69 inch Drawing

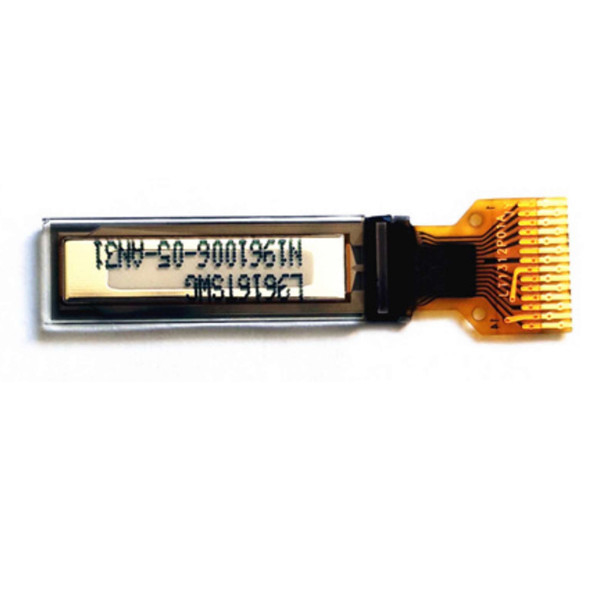

OLED Display 0.69 inch Product Image


Factory Facilities and Certificates


Why Choose us
1．We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2．Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3．Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4．Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
