OLED 2.8 inch 256x64 Display, Grey Scale OLED 2.8 inch Description
The Organic Light-Emitting Diode (OLED) is a new generation
technology, brighter and clearer images with more agile responding
speed. This OLED 2.8" inch model no. SFOM280YZ16-25664WB-01 OLED display is made of 256 x 64 dots individual mono color. This
OLED module is lightweight, low power and small, there are
different interfaces optional; it is default 3 and 4 lines SPI,
available options 6800,8080 interface. The module is made of COB
OLEDs have the advantages of easily fixed modules on customers’
applications because of having PCB board on it.

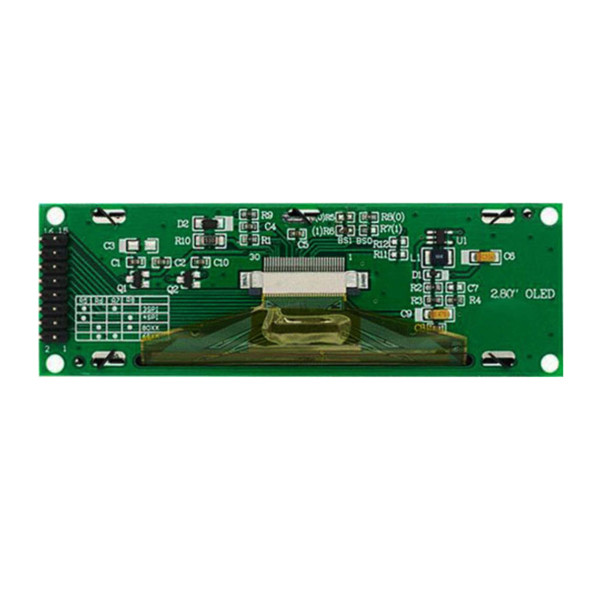

SFOM280YZ16-25664WB-01 is a dot matrix 256x64 COF graphic type passive matrix OLED display
module. The size of the active area is 2.8” diagonal with module
dimension 97 x 32.5 mm. This 2.8 inches OLED display has built-in
IC SSD1322U, and boasts high contrast ratio 20,000 : 1. There are
many interface options to choose from, including 6800, 8080 and SPI
interface. Logic supply voltage ranges from 2.8V-3.3V, the typical
value is 3V. The available emitting colors are yellow, sky blue and
support grayscale. It is great for the application such as medical
device, POS system, white goods, home applications, industrial instrument,
automation, audio/visual display systems, personal care appliances,
household goods, automobile displays, Dynamic information displays
etc.
Features
| Product: | 2.8" Inch Graphic OLED Screen | Resolution: | 256x64 Pixels |
|---|
| Display Mode: | Passive Matrix | Interface: | 3/4 SPI, 6800 8080 Interface |
|---|
| Optics: | All Viewing Angles | Outline Dim.: | 97.0(L) X 32.5(W) X 6.4(T) mm |
|---|
| Active Area: | 69.1(L) X 17..26(W) mm | Pixel Pitch: | 0.27 X 0.27 Mm |
|---|
| Driving Method: | 1/64 Duty Cycle | Operating Temp: | -40°C To +85°C |
|---|
| Storage Temp.: | -45°C To +90°C | Driver IC: | COF SSD1322 |
|---|
| Supply Voltage: | 3V | Grey Scale: | 16 Grey Scale |
|---|
| Pin Number: | 7 Header Pins, 4 Pins Optional | Compliance: | REACH & RoHS Compliant |
|---|
OLED 2.8 inch 256x64 Display, Grey Scale OLED 2.8 inch Drawing
Pin Definition
| Pin No. | Symbol |
| 1 | VSS |
| 2 | VCC_IN |
| 3 | NC |
| 4 | D0/CLK |
| 5 | D1/DIN |
| 6 | D2 |
| 7 | D3 |
| 8 | D4 |
| 9 | D5 |
| 10 | D6 |
| 11 | D7 |
| 12 | E/RD# |
| 13 | R/W# |
| 14 | D/C# |
| 15 | RES# |
| 16 | CS# |
Optics Characteristics
 Characteristics
| Symbol | Conditions | Min | Typ | Max | Unit |
| Brightness | Lbr | With Polarizer | 60 | 80 | - | cd/m2 |
| C.I.E. (White) | (x) (y) | Without Polarizer | 0.28 0.29 | 0.32 0.33 | 0.36 0.37 | |
| Dark Room Contrast | CR | | - | >2000:1 | - | |
| View Angle | | | >160 | - | - | degree- |
