3.5" Inch TFT LCD Display Module 320x480 HVGA IPS full viewing
angle
Saef Tech SF-TC350B-8941A-T is a diagonal size 3.5 inch TFT-LCD
module with resolution HVGA 320x480 pixels. This module is built in
with ILI9488 IC; it supports RGB/MCU/SPI multi-interface, supply
voltage (Vdd) range from 2.6V to 3.3V. This module is IPS type with
full View Angle 80/80/80/80.
SF-TC350B-8941A-T TFT-LCD module is portrait mode with brightness
300 nits. The module also is available for with or without
Resistive Touch Screen. SF-TC350B-8941A-T can be operating at
temperatures from -20℃ to +70℃; its storage temperatures range from
-30℃ to +80℃.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks
for sample remaking. 4-6 wks for mass production. For design-in
products, 2-3 days for counter drawing proposal; 2 wks for sample
making at drawing approval; 5-6 wks for trial-run/mass production
at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass
production MOQ is normally 1K/lot. We support qty lower than MP MOQ
for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make
samples with your logo for your sample test and approval. At sample
approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
| Product: | 3.5" Inch TFT LCD Display Module | Touch Screen: | Resistive Touch Panel ( With Or Without Optional) |
|---|
| Resolution: | 320x480 | Cover Glass Dimension: | Customizable |
|---|
| Viewing Direction: | All Viewing Angle(80/80/80/80) | Interface: | RGB/MCU/SPI |
|---|
| Pin Number: | 45 Pins | Connection: | FPC Plugging |
|---|
| Surface Luminance: | 300 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
|---|

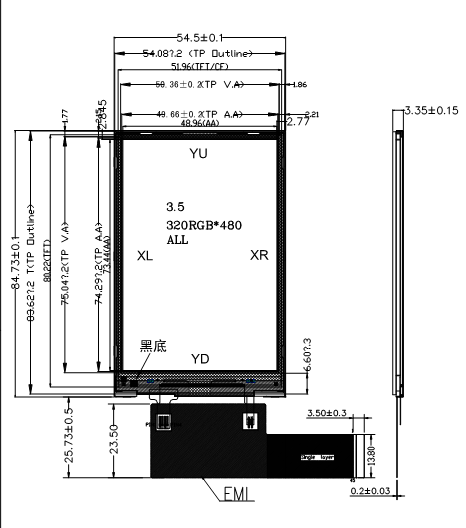

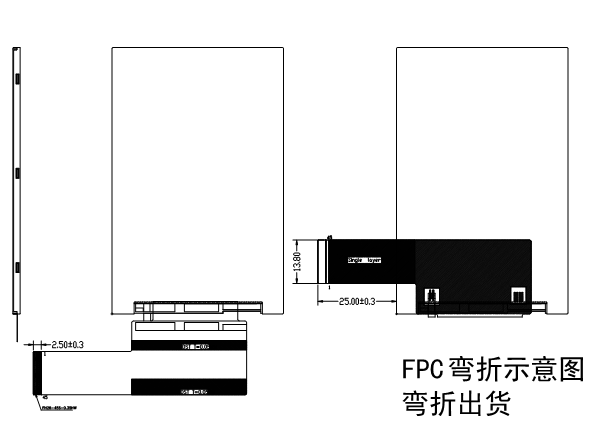

3.5 inch TFT screen Drawing
3.5 inch TFT screen REAL PRODUCT DEMOSTRATION
