1.77" inch TFT LCD display MPU 8 bit 128x160 Product Description
SF-TS177H-8784A-N is a 1.77 inch portrait mode TFT LCD module with 128x160 dot resolution. It supports mpu 8 bit
interface, widely use in handheld devices, medical devices, and
some other small size consumer electronics. This TFT LCD module is built-in with ILI9163V IC ( compitable with
ST7735 IC). supply voltage for analog (Vcc) range from 2.6V to
3.3V, typical value 2.8V. This module is having anti-glare surface
panel, view direction 12 o'clock, gray scale inversion 6 o'clock.
SF-TS177H-8784A-N module is a Portrait mode TFT-LCD and it's available as well for
resistive touch screen option whose part no. SF-TS177H-8784A-T. The working temperatures is from -20°C to +70°C; its storage
temperatures range from -30°C to +80°C.
| Product: | 1.77 Inch TFT Display | Touch Screen: | Optioinal |
|---|
| Resolution: | 128x160 | Cover Glass Dimension: | Customizable |
|---|
| Viewing Direction: | 12:00 | Interface: | Mpu 8 Bit |
|---|
| Pin Number: | 20 Pins | Connection: | Soldering |
|---|
| Surface Luminance: | 250 Cd/m2 | LED Lifetime: | 40,000 Hours |
|---|
| Operating Temp.: | -20°C To +70°C | Compliance: | REACH & RoHS Compliant |
|---|

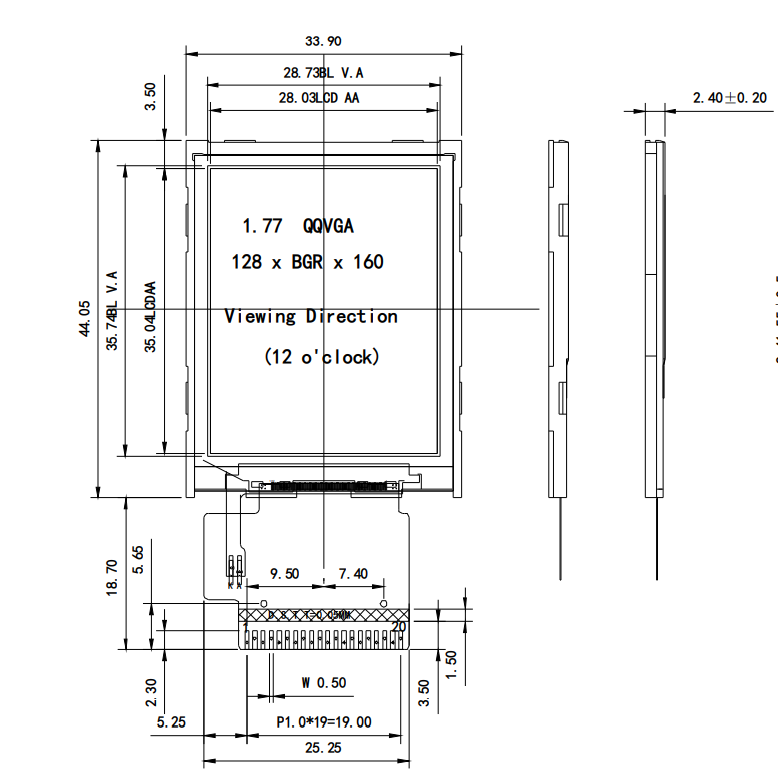

TFT lcd display 1.77 inch Drawing
PIN Description
| NO. | PIN NAME | I/O | Description |
| 1 | LED- | O | LED Cathode |
| 2 | LED+ | O | LED Anode |
| 3 | GND | I | Ground |
| 4 | VDD | I | Power Supply 2.8V Voltage |
| 5 | NC | - | LEAVE OPEN |
| 6 | NC | - | LEAVE OPEN |
| 7 | CS | I | Input pin for chip selection signal |
| 8 | RESET | I | LCM Reset input signal |
| 9 | RS | I | Register select signal |
| 10 | /WR | I | Write strobe signal input pin |
| 11 | /RD | I | Read strobe signal input pin |
| 12-19 | DB7-DBO | I/O | Display Data I/O |
| 20 | GND | I | Ground |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | - |
| Supply current | IDD | - | - | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | - | VDD | V | - |
| VIL | 0 | - | 0.2VDD | V |
| Input leakage current | IIL | -1.0 | - | 1.0 | mA | VIN=VDD or VSS
|

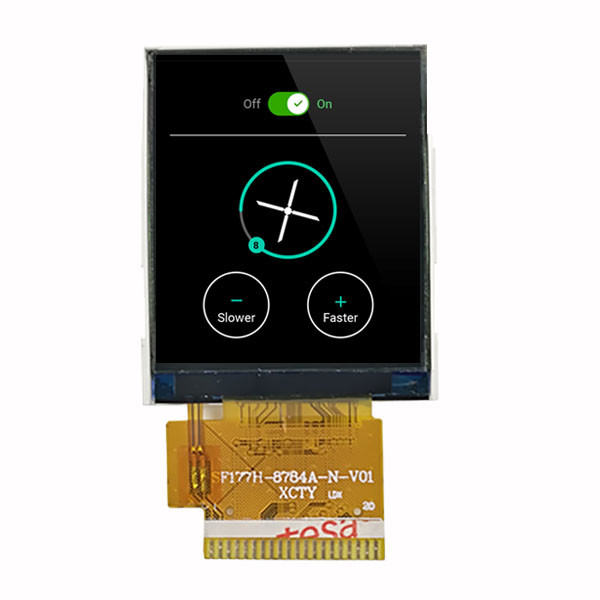

TFT lcd display 1.77 inch Product Image
