Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface Product Description

Product Quick Details:

►Size : 7 inch TFT
►Resolution : 1024x600 dots
►View Direction : 85/85/85/85 (IPS)
►Interface : LVDS
►Outline Dimension: 190*138*5.78 mm

►Interface: MIPI
►Control-Board : No
►Brightness(cd/m²) : 300
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP)
►Detect Point : 5 Fingers

Description

SAEF Technology SF-TO700B-8857A-CT is a 7”inch IPS type full viewing angle TFT LCD Display with resolution of 1024x600 pixels. It is with Capacitive Touch Screen(CTP), and the Gorilla cover glass is customizable.

This LCD module is has outline dimension of 190*138*5.78 mm, and AA size of 154.21x85.92 mm. This 7" TFT LCD is with PCAP(Capacitive Touch Screen). SF-TO700B-8857A-CT LCM interface is with MIPI interface, 30 pins. The CTP interface is I2C. SF-TO700B-8857A-CT is with 300cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from –20℃ to +70℃.

This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.

Product Information

7" PCAP TFT, MIPI 7 inch LCD Product Drawing

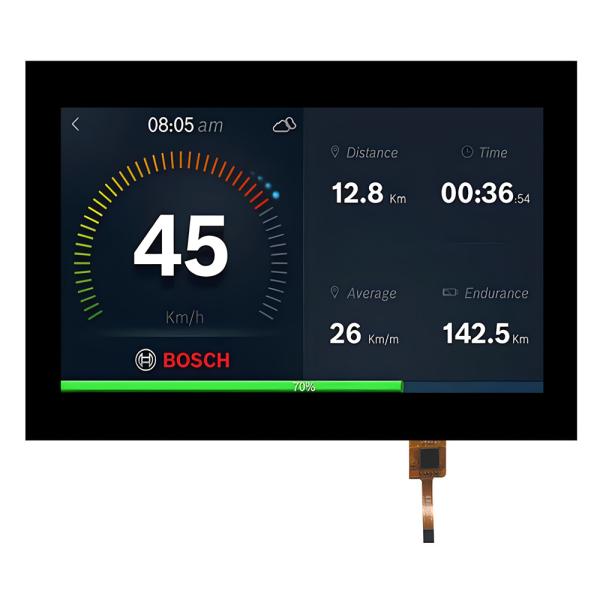

7" PCAP TFT, MIPI 7 inch LCD Real Product Image

Projected Capacitive (PCAP) Touch Screen

Projected capacitive (PCAP) touch technology provides fast and responsive response and professional-grade reliability. Saef Technology's projected capacitive touchscreens are designed for rigorous industrial, medical, and automotive applications. We can also combine PCAP touchscreens with liquid crystal displays (LCDs), an integrated embedded solution that helps streamline supply chains and assembly.

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA

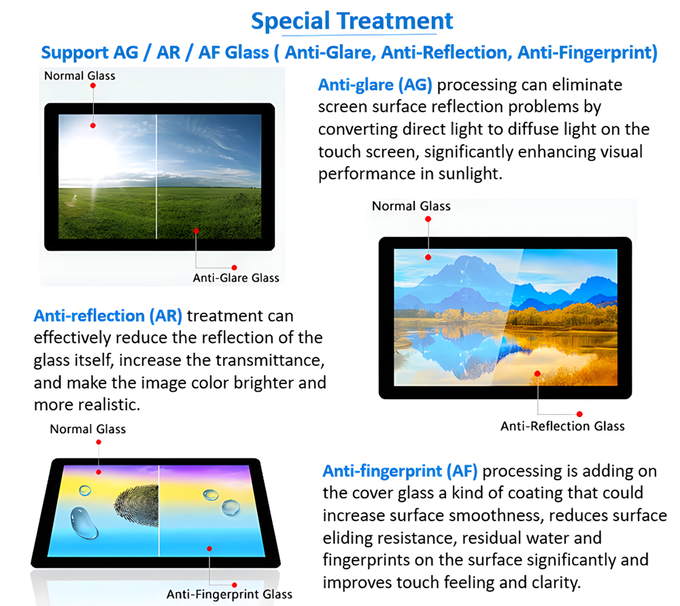

4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232

Search keyword: tft 7", 7 tft lcd, 7" tft lcd,7 inch tft lcd, tft lcd 7, 7 tft display, 7" tft display, 7 inch tft display, tft display 7 inch, tft display 7", 7 inch tft lcd display, 7 inch touch TFT, 7" tft touch lcd display, TFT 7" with CTP, 7" inch CTP touch TFT, 7" TFT CTP touch lcd.
