TFT Touch LCD Screen 3.5" inch 320X480 HVGA TN type Touch TFT with
ILI9488 IC
SAEF Technology SF-TC350H-8812A-T is a 3.5”inch TN type normal
viewing angle TFT LCD Display with resolution of HVGA 320x480
pixels.
Product Quick Details:
1. LCD Size: 3.5” TFT
2. Resolution: 320x480
3. Viewing Angle: 12 O’clock
4. Outline Dimension: 54.48*84.71*3. 25 mm
5. Driver IC: ILI9488
6. Interface Type: MCU 16bit
7. Touch Panel: With Resistive Touch Panel (Optional)
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
Product Features:
1. SF-TC350H-8812A-T is built in with ILI9488 controller or
equivalent IC; it supports MCU 16bit interface.
2. This SF-TC350H-8812A-T LCD module is 2.8V(typical value) for
operating voltage. Vdd is from 2.6V to 3.0V.
3. SF-TC350H-8812A-T is TN normal viewing angle TFT, with
resistance touch panel. If you need capacitance touch panel, it is
customizable.
4. This LCD display can be operating at temperatures from -20℃ to
+70℃; its storage temperatures range from -30℃ to +80℃.
5. SF-TC350H-8812A-T is portrait mode LCD module, with 200cd/m2
luminance. If you would like to use it as landscape mode or
increase the luminance, please contact with us for more technical
support.
Application:
Widely used in meter and instruments, GPS device, POS terminal,
cash reader, scanner, home automation, conference phone, analyzers,
home appliance, home automation, security system, etc.
| Product: | 3.5 Inch TFT Touch LCD | Resolution: | 320x480 HVGA |
|---|
| Pin Number: | 44 Pins ( Customizable ) | Interface: | MCU 16bit |
|---|
| Outline Dim.: | 54.48*84.71*3. 25 Mm | Viewing Direction: | 12 O'clock |
|---|
| Touch Screen: | With Resistive Touch Panel (Optional) | Driver IC: | ILI9488 |
|---|
| Connection: | FPC Connector Type | Surface Luminance: | 200 Cd/m2(nits) ( Customizable ) |
|---|
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
|---|
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control
pollution;
To try to reduce emission and conserve and make full use of
resources;
To improve environmental protection awareness and continuously
improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’
awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production
spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover
all rounds affecting qualities of products and services before
incorporating them to regulated and procedural management and
control;
Under the premise that quality is guaranteed, it will reduce
production costs including reduction of costs of raw materials and
improvement of production and managerial efficiency.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks
for sample remaking. 4-6 wks for mass production. For design-in
products, 2-3 days for counter drawing proposal; 2 wks for sample
making at drawing approval; 5-6 wks for trial-run/mass production
at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass
production MOQ is normally 1K/lot. We support qty lower than MP MOQ
for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make
samples with your logo for your sample test and approval. At sample
approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.

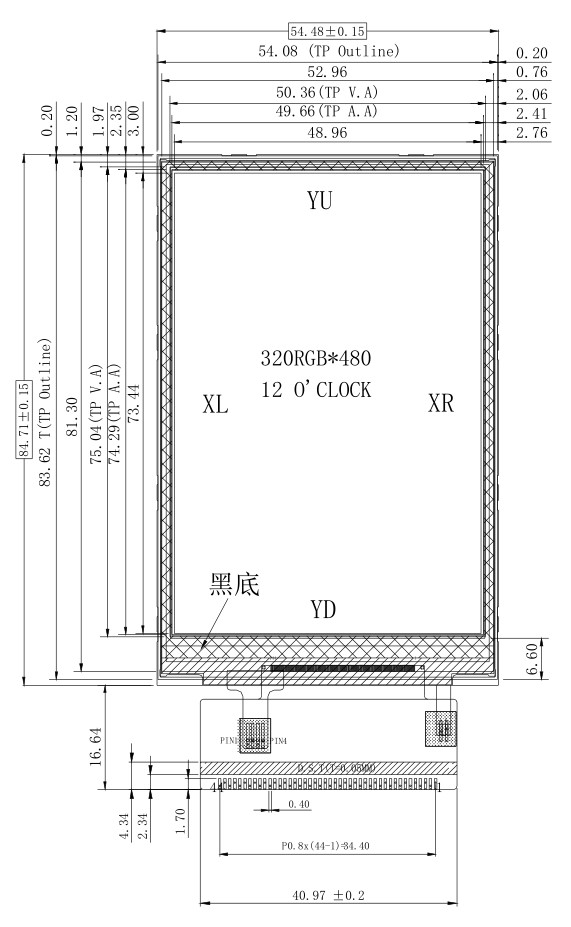

3.5 inch TFT tocuh LCD Drawing
3.5 inch TFT touch LCD Product Image
