3.51" Inch Portrait TFT LCD Display Screen 340x800 IPS ST7701S MIPI
Interface
Portrait 3.51 inch TFT Display 340x800 Resolution Description
SF-TO351AS-8993A-N display module is a transmissive type color
active matrix TFT(Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This
LCD module is composed of a TFT LCD module, a driver circuit, and a
back-light unit.The resolution of a 3.51” contains 340(RGB)X800
dots and can display up to 16.7M colors.
| Product: | 3.51" TFT Portrait | Touch Screen: | Capacitive Touch Panel (CTP) Optional |
|---|
| Resolution: | 340x800 | Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
|---|
| Driver IC: | ST77001S or Equivalent | Pin Number: | 31 Pins |
|---|
| Outline Dimension: | 36.67(H) X 88.45(V) X 1.61(T) mm | Connection: | Plugging ( Can Be Customized ) |
|---|
| Surface Luminance: | 580 Cd/m2 (nits) | Interface: | MIPI |
|---|
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
|---|
Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle.
Perfect for different kinds of applications, regardless of putting
on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance,
viewing angle, and intensity, etc.
3.High quality level for industrial and medical applications.
4.Flexible to have with or without resistive touch screen. We can
support to design customized CTP(capacitive touch panel) for
customers as well. FPC is customizable too.
5.Price competitive solution with good quality among the same kinds
in the LCD industry.
6.Easy to install and easy to maintain.
Portrait 3.51 inch TFT Display 340x800 Resolution Drawing

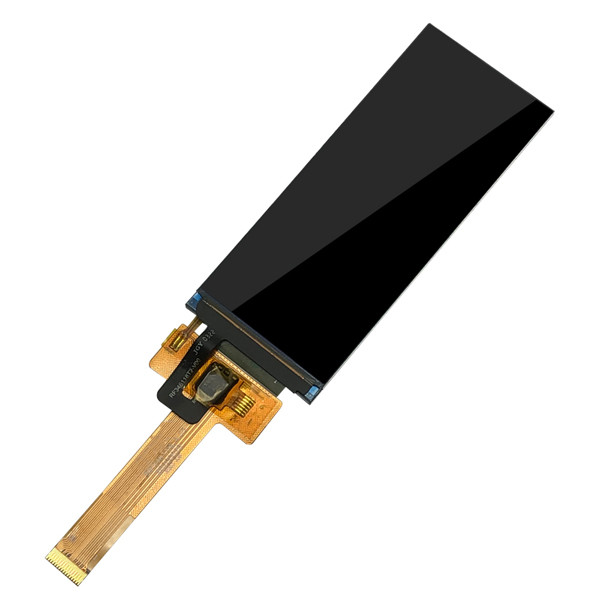

Portrait 3.51 inch TFT Display 340x800 Resolution Real Product Image
