2 Inch IPS TFT Screen QVGA 240x320 SPI MCU RGB Interface LCD Display

IPS 2 inch TFT Display,TFT LCD 2" Description

Saef SF-TC200H-8844A-N is a 2 inch diagonal full color 240x320 QVGA TFT LCD screen module. This 2 inch TFT LCD module is built in with ST7789V IC; it supports SPI, RGB and MCU Interface. SF-TC200H-8844A-N model is having module dimension of 38.5x52.05x2.6 mm and Active area size of 30.6x40.8 mm; it integrated ST7789V controller on module.

This 2” TFT LCD module is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 2" TFT scrren module is featured with brightness up to 300 cd/m2 nits (typical value), it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

SF-TC200H-8844A-N is a TFT screen 2inch without Touch Screen TFT LCD module, but it is customizable under customer's demand to design resistive touch or capacititve touch screen. This lcd module is having anti-glare surface panel, all viewing direction IPS display.

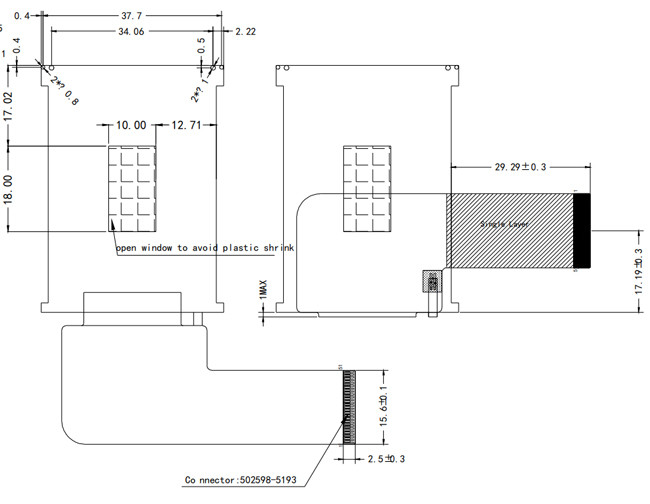

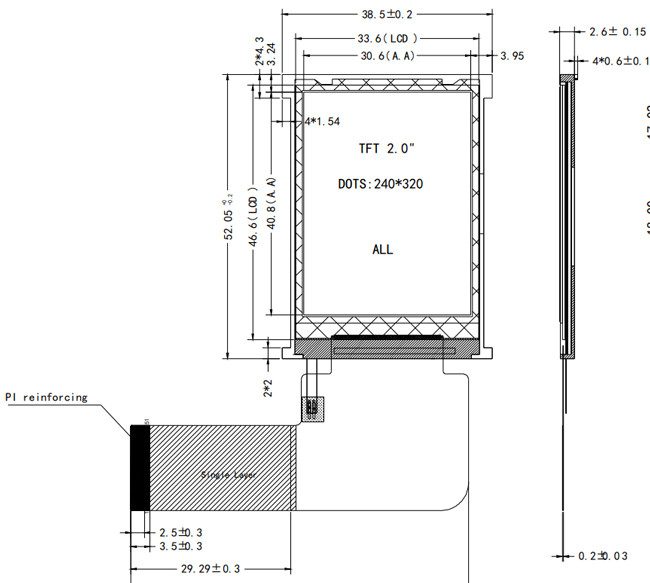

IPS 2 inch TFT Display,TFT LCD 2" Drawing

IPS 2 inch TFT Display,TFT LCD 2" Real Product Image

Search keyword: tft 2, tft 2", 2 tft lcd, 2" tft lcd, 2 inch tft lcd, tft lcd 2, 2 tft display, 2" tft display, 2 inch tft display, tft display 2, tft display 2", 2 inch tft screen, 2" tft screen, 2 inch tft screen, tft screen 2, TFT screen 2 inch, TFT screen 2", SPI 2 inch, RGB 2 inch TFT, MUC 2 inch screen, 2 inch IPS TFT screen, IPS TFT 2inch
