TFT LCD Display 3.5 Inch 320x480 portrait TN Type ILI9488 MCU 16
Bits 3.2V white LED backlight
3.5" TFT 320x480, TFT LCD 3.5 inch Description
SF-TC350H-9934A-N TFT LCD module is a 3.5” inch diagonal size HVGA
portrait mode 320x480 full color display, SF-TC350H-9934A-N have
another version which is with Resistive touch screen, model number
is SF-TC350H-9934A-T, and it can be designed to be with PCAP whose
part Number is SF-TC350H-9934A-CT. This module supports MCU 16 bits
Interface. SF-TC350H-9934A-N model is having module dimension of
55.26(W) x 84.69(L) x 2.1(T) mm and active area size of 48.96 x
73.44 mm.
SF-TC350H-9496G-T is integrated with ILI9488 controller on module,
and its logic supply voltage ranges from 2.6V to 3.4V. typical
value is 3.2V.
The surface luminance is 200 cd/m2 (Nits). If you would like to use
it as portrait mode or adjust the luminance, please contact with us
for more technical support. the surface brightness can be achieved
to be 1000 cd/m2 (nits). The model has been widely used in embedded systems, automation, GPS, medical equipment,
industrial device, security equipment which requires TFT display in
high quality and colorful image.
| Product: | TFT LCD Display 3.5" | Resolution: | 320x480 Dots |
|---|
| Driver IC: | ILI9488 Or Equivalent | Touch Screen: | With Resistive Touch Optional |
|---|
| Cover Glass Dimension: | Customizable | Viewing Direction: | 12 O'clock |
|---|
| Outline Dim.: | 55.26(W) X 84.69(L) X 2.1(T) mm | Active Area: | 48.96 X 73.44 mm |
|---|
| Interface: | MCU 16 Bits (customizable) | Connection: | Soldering (can Be Customized) |
|---|
| Pin Number: | 44 Pins (can Be Customized) | Surface Luminance: | 200 Cd/m2(nits) |
|---|
| Supply Voltage: | 3.2 V | Backlight Type: | White LED |
|---|
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
|---|
Pin Definition
Pin1, LED A, LED Anode.
Pin2, LED6K, LED Cathode.
Pin3, LED5K, LED Cathode.
Pin4, LED4K, LED Cathode.
Pin5, LED3K, LED Cathode.
Pin6, LED2K, LED Cathode.
Pin7, LED1K, LED Cathode.
Pin8, GND, Ground.
Pin9, LED7K(NC), Set open.
Pin10, VCI, Power Supply 2.8V Voltage.
Pin11, IOVCC, Power Supply 2.8V/1.8V Voltage.
Pin12, /CS, Input pin for chip selection signal.
Pin13, /WR, Write strobe signal input pin.
Pin14, RS, Register select signal.
Pin15, RD, Read strobe signal input pin.
Pin16, /RESET, LCM Reset input signal.
Pin17, NC, Set open.
Pin18, NC, Set open.
Pin19~Pin34, D15-D0, Display Data I/O
Pin35, IM0/NC, Set open.
Pin36, IM1/NC, Set open.
Pin37, FMARK, Tearing effect output pin to synchronies MCU to frame
writing, activated by S/W command.
Pin38, LED8K(NC), Set open.
Pin39, GND, Ground
Pin40, XL(NC), Set open.
Pin41, YD(NC), Set open.
Pin42, XR(NC), Set open.
Pin43, YU(NC), Set open.
Pin44, GND, Ground

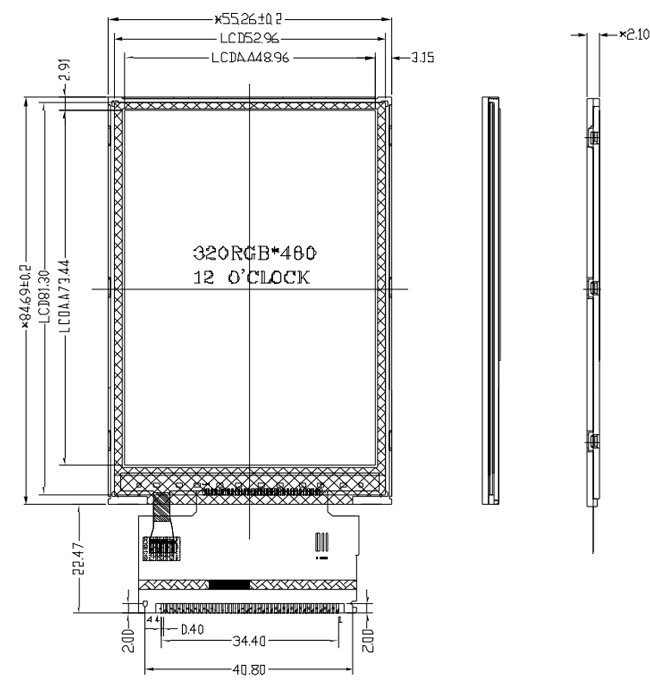

3.5" TFT 320x480, TFT LCD 3.5 inch Drawing
3.5" TFT 320x480, TFT LCD 3.5 inch Product Image
