4" Inch TFT DSI MIPI 480x800 IPS LCD Display Module NT35512SH 2.8V

3.97" Inch 480x800 TFT LCD Description

SF-TC397B-8275A-N TFT LCD module is a 3.97” inch diagonal size portrait mode 480x800 full color display. This module is integrated with NT35512 controller on module and it supports MIPI interface. SF-TC397B-8275A-N model is having module dimension of 57.14 x 96.85 x 1.95 mm and active area size of 51.84 x 86.4 mm. SF-TC397B-8275A-N the model has been widely used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

Pin Definition

Pin1, MIPI_TCN, DSI-CLK- clock signals.

Pin2, MIPI_TCP, MIPI_TCP.

Pin3, GND, GROUND.

Pin4, MIPI_TDN0, DSI-D0- data signals.

Pin5, MIPI_TDP0, DSI-D0+ data signals

Pin6, GND , GROUND.

Pin7, MIPI_TDP1, DSI-D1+ data signals.

Pin8, MIPI_TDN1, DSI-D1- data signals.

Pin9, GND, GROUND.

Pin10, NC

Pin11, NC

Pin12, GND, GROUND.

Pin13, NC

Pin14, NC

Pin15, GND, GROUND.

Pin16, VDD18_PMU, Power Supply 1.8V-2.8V

Pin17, NC

Pin18, LRSTB, LCM reset input

Pin19, NC

Pin20, LPTE, Tearing effect output

Pin21, VDD28_PMU, Power Supply 2.8V.

Pin22, GND, GROUND

Pin23, VLED_P, LED Anode.

Pin24, VLED_N, LED Cathode

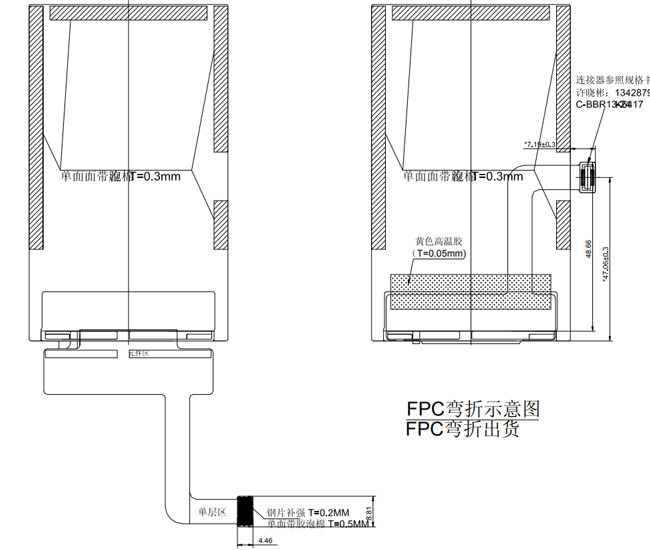

4" Inch 480x800 TFT LCD Drawing

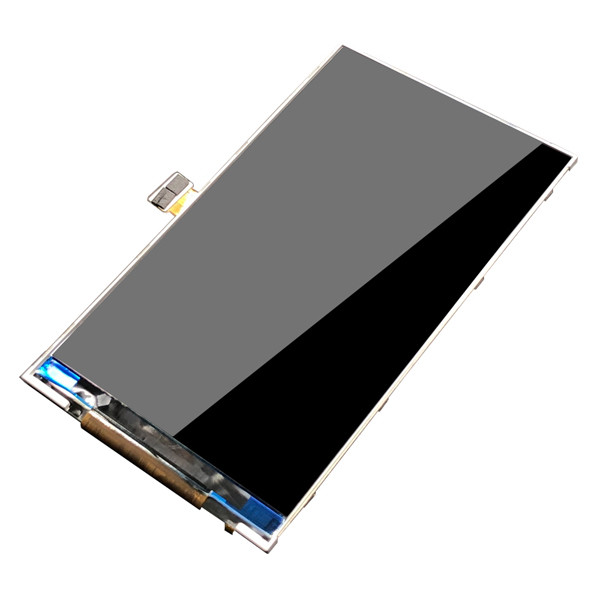

4" Inch 480x800 TFT LCD Real Product Image
