About this item SF-TC240H-8944B-T
Introducing the 2.4" Inch TFT LCD Display with a resolution of
240x320 QVGA, designed to provide a vibrant visual experience in a
compact form factor. This display features an MCU/RGB interface,
offering versatile connectivity options for various
microcontrollers and systems.
Key Features:
- Size and Resolution: With a 2.4-inch screen and a 240x320 QVGA
resolution, the display provides clear and crisp visuals, making it
ideal for a range of applications, from handheld devices to
embedded systems.
- Touch Capability: The integrated resistive touch screen allows for
intuitive user interaction, making it easy for users to navigate
and interact with on-screen content.
- Versatile Interface: The MCU/RGB interface ensures compatibility
with a wide variety of microcontrollers, allowing for seamless
integration into your projects.
- High Color Depth: Capable of displaying a rich palette of colors,
the display ensures that graphics, images, and text are vivid and
detailed.
- Compact Design: The small size of the display makes it perfect for
portable devices and space-constrained applications.
Applications:
- Ideal for a range of applications including handheld devices,
robotics, consumer electronics, and automated systems.
- Perfect for developers and hobbyists looking to enhance their
projects with a user-friendly interface.
Experience the convenience and utility of the TFT LCD Display 2.4"
Inch 240x320 QVGA with Resistive Touch Screen, and take your
projects to the next level with its visually appealing and
functional design. Whether you’re developing a prototype or a
commercial product, this display offers the performance and
reliability you need.
Features
| Product: | 2.4 Inch TFT | Touch Screen: | Resistive Touch Panel (RTP) |
|---|
| Resolution: | 240x320 QVGA | Cover Glass | Without(Customizable) |
|---|
| Viewing Direction: | 12 O'clock | Interface: | MCU/RGB |
|---|
| Pin Number: | 48pins | Connection: | FPC Type Connection |
|---|
| Surface Luminance: | 250 Cd/m2 | LED Lifetime: | 40,000 Hours |
|---|
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks
for sample remaking. 4-6 wks for mass production. For design-in
products, 2-3 days for counter drawing proposal; 2 wks for sample
making at drawing approval; 5-6 wks for trial-run/mass production
at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass
production MOQ is normally 1K/lot. We support qty lower than MP MOQ
for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make
samples with your logo for your sample test and approval. At sample
approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
External Dimension
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | YU | I | Touch Panel Pin |
| 2 | XL | I | Touch Panel Pin |
| 3 | YD | I | Touch Panel Pin |
| 4 | XR | I | Touch Panel Pin |
| 5 | GND | I | Ground |
| 6 | VCI | I | Power Supply 2.8V Voltage |
| 7 | VDD3 | I | Power Supply 2.8V/ 1.8V Voltage |
| 8 | VDD3_P(NC) | - | Set Open |
| 9 | BC_CTRL(NC) | - | Set Open |
| 10 | BC(NC) | - | Set Open |
11 | TE | O | Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. |
| 12-29 | DB17-DB0 | I/O | Display Data I/O |
| 30 | SDA | I/O | Serial input signal |
| 31 | DOTLCK | I | Dot Clock Signal for RGB Interface Operation |
| 32 | ENABLE | I | Data Enable Signal for RGB Interface Operation |
| 33 | HSYNC | I | Line Horizontal Synchronizing Signal |
| 34 | VSYNC | I | Frame Vertical Synchronizing Signal |
| 35 | RDX | I | Read strobe signal input pin |
| 36 | WRX | I | Write strobe signal input pin |
| 37 | DCX | I | Register select signal |
| 38 | CSX | I | Input pin for chip selection signal |
| 39 | RESET | I | LCM Reset input signal |
| 40 | IM0 | I | Please refer to the fourth page, Select the MCU interface mode |
| 41 | IM1 |
| 42 | IM2 |
| 43 | IM3 |
| 44 | LED_A | I | LED Anode |
| 45 | LED_K1 | I | LED Cathode |
| 46 | LED_K2 | I | LED Cathode |
| 47 | LED_K3 | I | LED Cathode |
| 48 | LED_K4 | I | LED Cathode |
LED Backlight Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=80mA |
| Supply Current | If | - | 80 | - | mA | - |
| Reverse Voltage | Vr | - | - | 5 | V | - |
| Power dissipation | Pd | - | 288 | - | mW | - |
| Luminous Intensity for LCM | - | - | 350 | - | Cd/m2 | If=80mA |
| Uniformity for LCM | - | 80 | - | - | % | If=80 mA |
| Backlight Color | White |

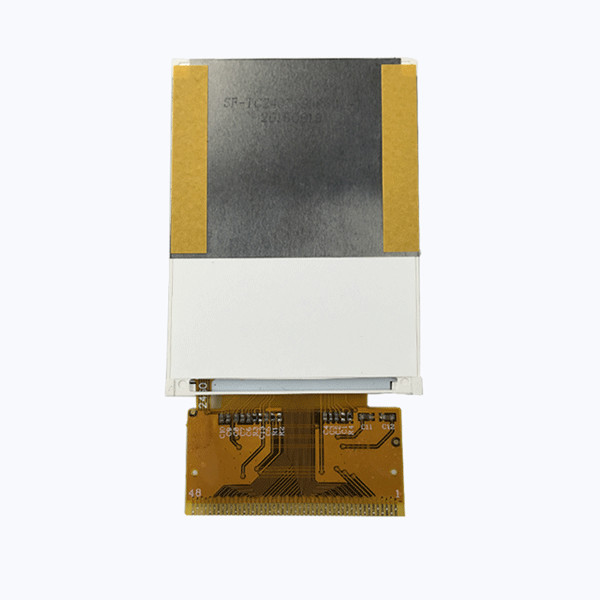

Product Image
