TFT Lcd Display 1.54" Inch 240x240 Square Resolution MCU IPS
ST7789V With Custom Touch Screen Optional
Product Quick Details:
1. LCD Size: 1.54” inch TFT
2. Resolution: 240x240
3. Viewing Angle: All
4. Outline Dimension: 31.52x33.72x1.8 mm
5. LCD Driver IC: ST7789V
6. LCD Interface Type: MCU
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: custom or standard capacitive touch screen(CTP)
opational
Saef SF-TC154B-8945B-N is a diagonal size 1.54” inch square TFT LCD
Module with resolution 240x240 pixels. This module supports MCU
interface. SF-TC154B-8945B-N model is having module dimension of
31.52x33.72mm and Active area size of 27.74x27.74mm; it is
integrated with ST7789V controller on module, and its logic supply
voltage ranges from 2.6V to 3.3V.
Saef SF-TC154B-8945B-N can be operating at temperatures from -20℃
to +70℃; its storage temperatures range from -30℃ to +80℃.
this TFT module is a square type LCD module, with 500 cd/m2
luminance. If you would like to adjust the luminance, please
contact with us for more technical support.
Product Quick Details:
1. LCD Size: 1.54” inch TFT
2. Resolution: 320x320
3. Viewing Angle: All
4. Outline Dimension: 31.52x33.72x1.15 mm
5. LCD Driver IC: ST7789V
6. LCD Interface Type: MIPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: capacitive touch screen(CTP)
| Product: | 1.54" TFT Screen | Resolution: | 240x240 |
|---|
| Viewing Direction: | Full Viewing Angle(80/80/80/80) | Touch Screen: | Without Capacitive Touch Screen( Optional) |
|---|
| Interface: | MCU ( Customizable ) | Pin Number: | 24 Pins |
|---|
| Surface Luminance: | 500 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
|---|
| Cover Glass: | Customizable | Compliance: | REACH & RoHS Compliant |
|---|
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. Then you
can place us the order.
For designing or further discussion, it is better to contact us by
email / phone for more clear and accurate LCD solution proposal for
you. .
2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED
lcd module, lcd module with digital frame, Android Tablet, etc. We
support both indoor and outdoor applications, industrial and
commercial applications.
We also support standard solutions and customized design solutions.
We have off-shelf and design-in products to provide customer with
one-stop solutions.
3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and
replaced.
4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the
most convenient or cost effective for you.
1.54” TFT LCD Display Drawing

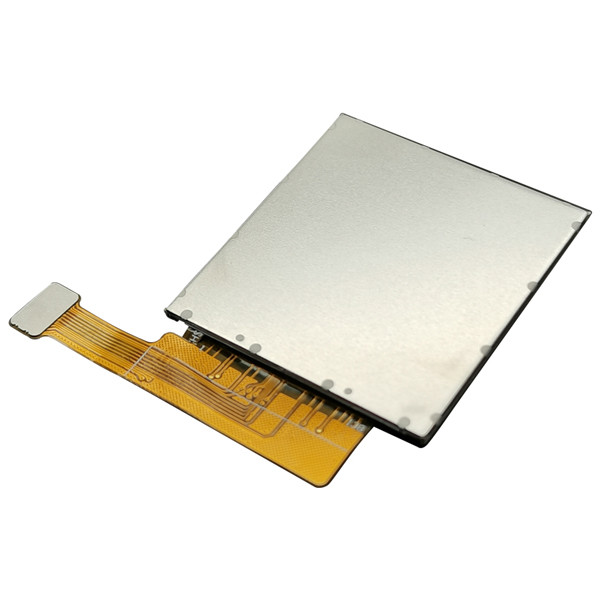

1.54” TFT LCD Display Real Product Pictures
SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN
SIZE
| DETAILS | OUR P/N |
1.54 inch
| same lcd display but wihtout CTP touch | SF-TC154B-8483A-N |
1.54 inch
| different FPC tail, SPI interface | SF-TC154B-8321A-N |
1.54 inch
| different FPC tail, MUC interface | SF-TC154B-8591A-CT |
1.54 inch
| 320x320 resolution, different FPC tail, MIPI interface,with CTP | SF-TC154B-8873A-CT |
| 1.54 inch | 320x320 resolution, different FPC tail, MIPI interface, without TP |
SF-TC154B-8429A-N
|
