Square Small LCD Display Screen, TFT LCD 1.44 Inch128x128 With MUC
8bit Interface Product Introduction
SAEF TECHNOLOGY SF-TC144L-9168A-N is a diagonal size 1.44” inch
spuare shape TN type TFT LCD Display with resolution 128x128
pixels.
1. LCD Size: 1.44” inch TFT
2. Resolution: 128x128
3. Viewing Angle: 12:00
4. Outline Dimension: 30.05*33.82*2.3 mm
5. LCD Driver IC: ILI9163
6. LCD Interface Type: MCU 8bit
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Without Touch Screen(Customizable)
9. Application: This 1.44” TFT LCD module is widely used in remote
control, medical handheld device, small measuring instrument,
analyzers, smart watch, wearable devices, etc.
| Product: | 1.44" Inch TFT LCD | Touch Screen: | Without TP(Customizable) |
|---|
| Resolution: | 128x128 Dots | Cover Glass Dimension: | Without(Customizable) |
|---|
| Viewing Direction: | 12 O'clock | Interface: | SPI |
|---|
| Pin Number: | 27 Pins | Connection: | Soldering ( Can Be Customizable ) |
|---|
| Surface Luminance: | 100 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
|---|
| Driver IC: | ILI9163 Or Equivalent | Compliance: | REACH & RoHS Compliant |
|---|
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks
for sample remaking. 4-6 wks for mass production. For design-in
products, 2-3 days for counter drawing proposal; 2 wks for sample
making at drawing approval; 5-6 wks for trial-run/mass production
at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass
production MOQ is normally 1K/lot. We support qty lower than MP MOQ
for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make
samples with your logo for your sample test and approval. At sample
approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.

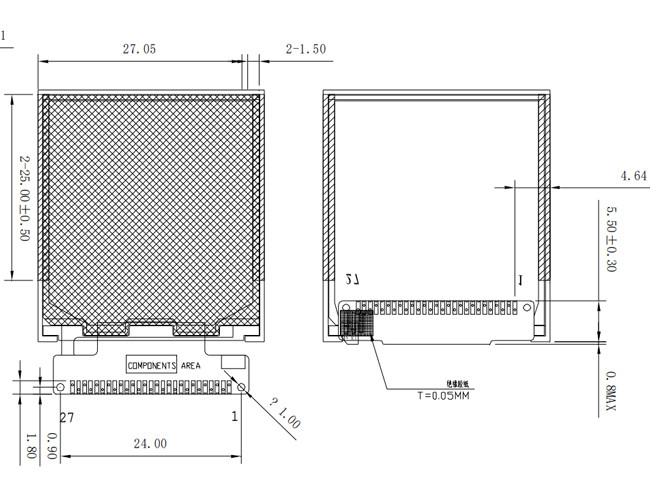

Square Small LCD Display Screen, TFT LCD 1.44 Inch128x128 With MUC
8bit Interface Product Drawing
Square Small LCD Display Screen, TFT LCD 1.44 Inch128x128 With MUC
8bit Interface Product Image
Factory Facilities and Certifications
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and
sensitive response and professional-grade reliability combined. The
SAEF
technology projected capacitive touch screen is designed for strict
industrial, medical, and automotive applications. We can also
combine PCAP touch screens with liquid crystal displays (LCDs),
which is an integrated embedded solution that helps simplify the
supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
