5.8" inch 800x320 dots long strip bar type tft lcd RGB vehicle advertising display screen

SF-TO580-8963A-N is a 5.8 inch strip bar type TFT display. it carries High Brightness 400 nits and 800 x 320 IPS TFT-LCD module. projected capacitive touch panel (PCAP) is customizable. This TFT module is featured with wide view angles of Left: 70 / Right: 70 / Up: 65 / Down: 65 degree (typical) and high brightness of 400 nits (typical value). SF-TO580-8963A-N module is built-in with HX8264 and HX8678 driver ICs; it supports 24 bits RGB interface. it can be operated at temperatures from -30℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

The strip bar type LCD screen is a customized LCD screen. It realizes the customer's special size demand by cutting the original color LCD screen and supported by the higher brightness backlighting which brightness can reaches 2000 nits. Nowaday, the strip bar type lcd widely used for outdoor advertising devices, medical devices, vehicle advertising and other portable devices. Common strip-type displays include 2:1, 3:1, 7:3, etc.

DRAWING

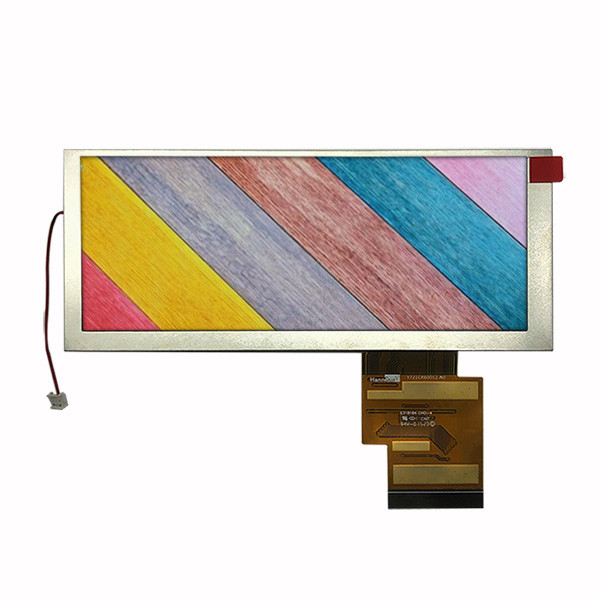

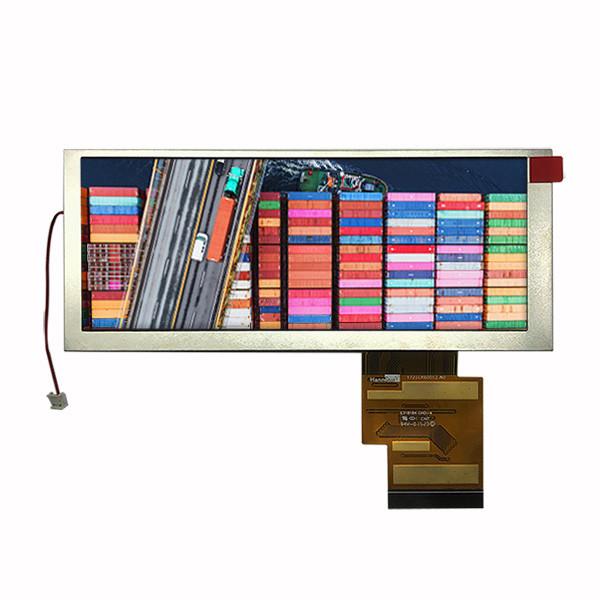

REAL PRODUCT DEMONSTRATING
