Bar Type TFT screen 4.6 Inch LCD Module 800x320 ILI5960 ILI6122
with PCAP Capacitive Touch option 40 Pin RGB Interface
4.6" 800x320 Bar Type TFT Display Description
SAEF SF-TO460B-8959A-N TFT LCD module is a 4.6 inch diagonal
800xRGBx320 full color bar type TFT Module.
This LCD module can be used in embedded systems, industrial device,
security and hand-held equipment which require display in high
quality and colorful image. SAEF Bar Type TFT-LCD displays are
perfect for industrial equipment, automotive application, server
system, POS system, dynamic information displays and advertising
display.
Product Quick Details:
1. LCD Size: 4.6” inch TFT
2. Resolution: 800x320
3. Viewing Angle: 12 O'clock
4. Outline Dimension: 105.5x40.64x2.95 mm
5. LCD Shape: Bar Type
6. LCD Interface Type: RGB
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: RTP or CTP customizable
| Keywords: | Bar Type 4.6 Inch TFT LCD Display | Touch Screen: | Capacitive Touch Screen Optional |
| Resolution: | 800x320 | Cover Glass Dimension: | Customizable |
| Interface: | RGB | Surface Luminance: | 400 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours | Pins: | 40 Pins |
| Viewing Direction: | 12 O'clock | Connection: | ZIF / Plugging |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Product Advantages:
1.The mainstream aspect ratio of the TFT LCD panel in the market is
4:3 or 16:9. But for some applications, bar type shape of display
panel would be much better than the current mainstream 4:3 or 16:9
to display the required information.
2.We offer different sizes Bar Type TFT (Stretched Bar LCD Display)
including sizes of 3.9 inch, 4.6 inch and 5.2 inch. In order to
meet with customers requirement especially for industrial
applications.
3.We develop more derivative solution from these Bar type TFT as
below: 1- With screw hole on frame version option. 2- With
Capacitive Touch Panel or Resistive Touch Panel option. 3- High
Brightness version option.
4. Excellent display performance of background color, luminance,
viewing angle, and intensity, etc.
5. Wide Temperature of Top of -20℃ to +70℃ and high quality level
for industrial applications.
6. Price competitive solution with good quality among the same
kinds in the LCD industry.
Product Features:
This LCD module is has outline dimension of 120x56.25x2.85 mm, and
AA size of 108x44.5 mm. This 4.6" TFT LCD can be custom design with
Resistive touch screen and capacitive touch screen. it can be used
in embedded systems, industrial device, security and hand-held
equipment which require display in high quality and colorful image.
SAEF SF-TO460B-8959A-N is with 400cd/m2 (nits) surface brightness,
this LCD Display Module can be operating at temperatures from–20℃
to +70℃.
Customer Service
1.Before signing an official contract with our customer we will
help to analyze and provide professional solution based on customer
project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in
24hrs.
3. Keep informing our customer production process and help arrange
quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the
defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training
before delivery.
6. We’re focusing on creating values for customers. For essential
technical or commercial support, we will arrange con-call meeting,
online technical service, or at-site local help, etc to meet
customer different needs.
4.6" 800x320 Bar Type TFT Display Drawing

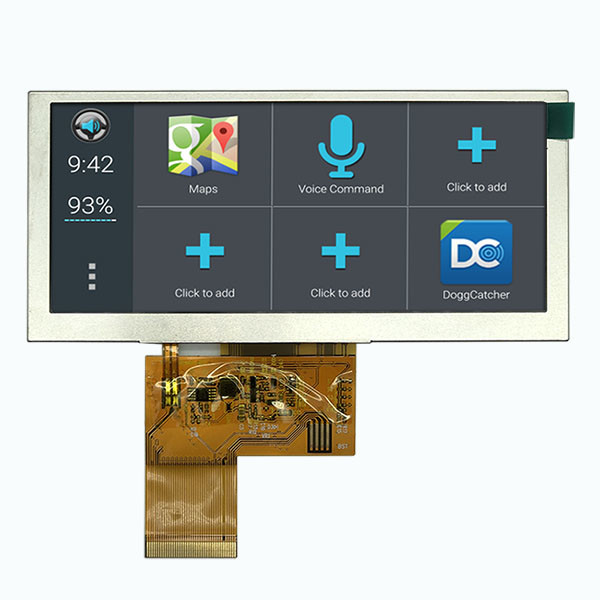

4.6" 800x320 Bar Type TFT Display Real Product Image
