SF-TC122B-8175A-N SPECIFICATION.pdf
1.22 inch round LCD, Circular TFT LCD 1.22"


SF-TC122B-8175A-N is a 1.22 inch diagonal 240x204 full color round TFT LCD screen display. it supports SPI interface, widely used for Wearable devices, Round Display, MP3 player, Handheld devices etc. For easy connection to your host, the FFC/FPC tail mates with easy-to-find ZIF sockets.

SF-TC122B-8175A-N is circular mode TFT-LCD featured with brightness 200 nits (typical value). it can be operated at temperatures from -20°C to +70°C, its storage temperatures range from -30°C to +80°C. as 1.22 inch round TFT display module widely used in various application, we customize spi mcu RGB interface with different length of tail. drawings as below for your detailed checking.

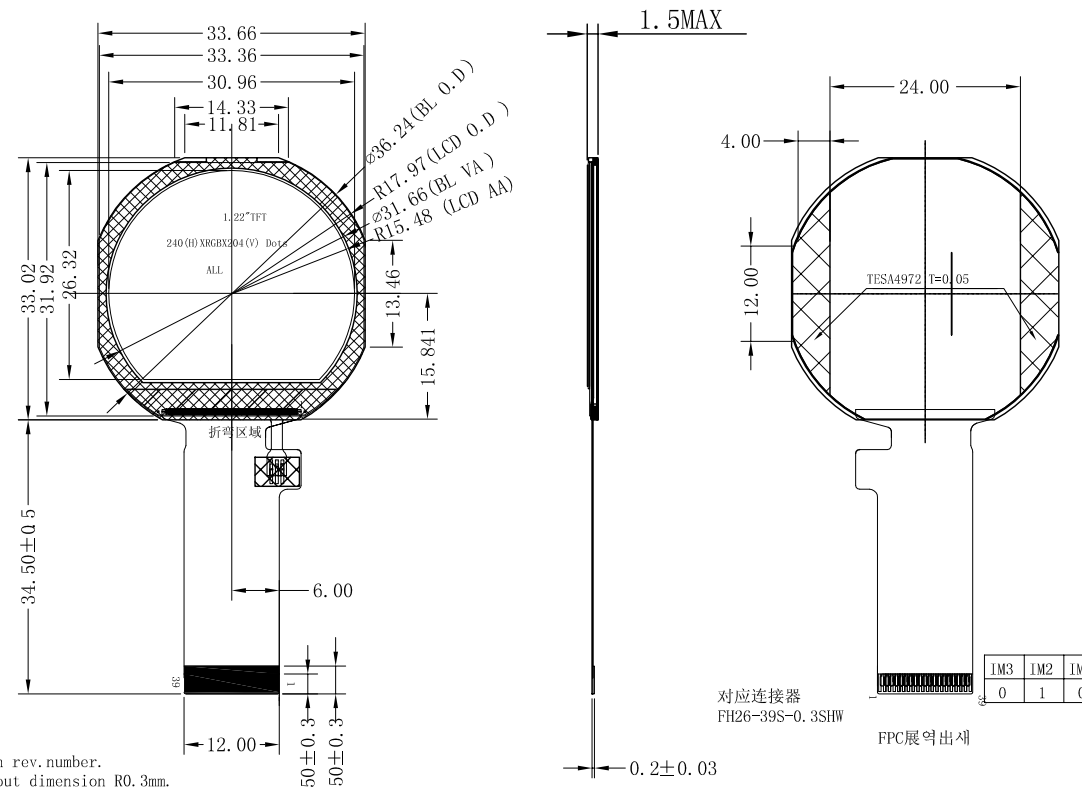

1.22 inch round LCD, Circular TFT LCD 1.22" Drawing


as to above drawing, whose part number is SF-TC122B-8532A-N, it supports SPI interface.


as to above drawing, whose part number is SF-TC122B-8807A1-N, it supports SPI interface.


as to above drawing, whose part number is SF-TC122B-8266-N, it supports MCU interface.


as to above drawing, whose part number is SF-TC122B-8811A-N, it supports RGB interface.


1.22 inch round LCD, Circular TFT LCD 1.22" Real Product Image






SF-TC122B-8175A-N has been designed with Capacitive touch screen, 1.22 inch TFT with ctp, its part number is SF-TC122B-8175A-CT.

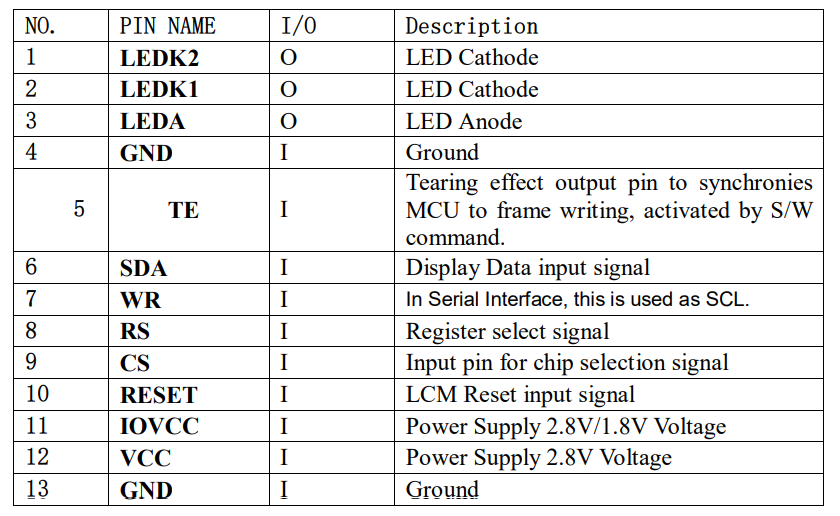

PIN DESCRIPTION
