    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle

    SF-TC122B-8807A1-N SPECIFICATION 2023-09-10.pdf

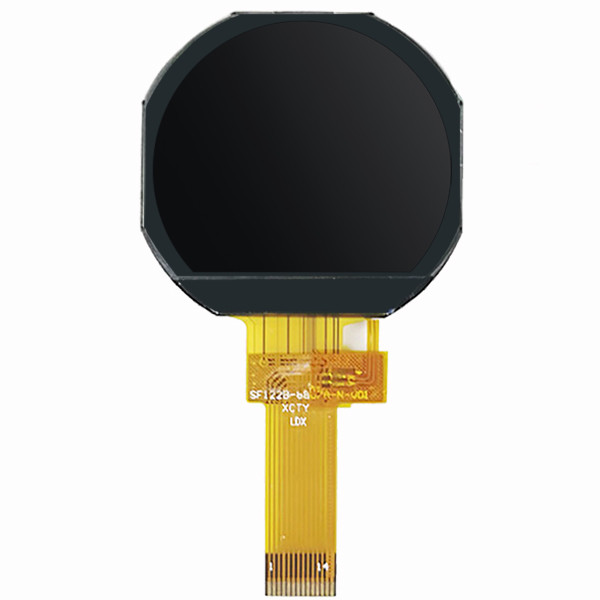

    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle Product Introduction

    SAEF TECHNOLOGY SF-TC122B-8807A1-N is a diagonal size 1.22”inch round shape IPS type TFT LCD Display with resolution 240x204 pixels.

    Product Quick Details:
    1. LCD Size: 1.22” inch TFT
    2. Resolution: 240x204
    3. Viewing Angle: All
    4. Outline Dimension: 33.66x33.02x1.5 mm
    5. LCD Driver IC: ST7789V
    6. LCD Interface Type: SPI
    7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
    8. Touch Panel: Without Touch Screen(Customizable)


    Product:1.22"inch TFT LCD ScreenTouch Screen:Without Touch Screen(Customizable)
    Resolution:240x204Viewing Direction:IPS Full Viewing Angle(80/80/80/80)
    Driver IC:ST7789VPin Number:14 Pins
    Connection:FPC Connector TypeSurface Luminance:300 Cd/m2 (nits)
    Interface:SPILED Lifetime:40,000 Hours

    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Product Drawing
    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle

    PIN Description


    NO.PIN NAMEI/ODescription
    1LEDK2OLED Cathode
    2LEDK1OLED Cathode
    3LEDAOLED Anode
    4GNDIGround
    5FMARKITearing effect output pin to synchronies MCU to frame writing, activated by S/W command.
    6SDIIDisplay Data input signal
    7SCLKIIn Serial Interface, this is used as SCL.
    8RSIRegister select signal
    9CSIInput pin for chip selection signal
    10RESETILCM Reset input signal
    11IOVCCIPower Supply 2.8V/1.8V Voltage
    12VCCIPower Supply 2.8V Voltage
    13GNDIGround
    14GNDIGround

    Maximum Absolute Limit


    ItemSymbolValueUnit
    Power supply voltage for logicVDD3.0-3.6V
    Input voltageVinVDD+0.3V
    Operating temperatureTopr-20 to 70°C
    Storage temperatureTstg-30 to 80°C

    DC Characteristics (VDD=3.3V,Ta=25°C)


    ItemSymbolMinTypeMaxUnitTest condition
    Operating voltageVDD3.03.33.6V-
    Supply currentIDD-TBD-mAVDD=3.3V,Ta=25°C
    Input voltageVIH0.7VDD-VDDV-
    VIL0-0.3VDDV
    Input leakage currentIIL-TBD-mAVIN=VDD or VSS

    Backlight Electrical-optical Characteristics


    ItemSymbolMINTYPMAXUNIT

    Test

    Condition

    Note
    Supply VoltageVf-3.2VIf=40mA-
    Supply CurrentIf-40-mA--
    Reverse VoltageVr--5V-
    Power dissipationPd-128-mW-
    Luminous Intensity for LCM

    -

    -150-Cd/m2If=40mA-
    Uniformity for LCM-7075-If=40mA-
    Backlight ColorWhite

    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Product Image


    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle

    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle

    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle

    Factory Facilities and Certificates
    1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle1.22 inch Round Circular LCD Display Screen TFT 240x204 Dots IPS Full Viewing Angle

    FAQ:
    Q1. Can I have a sample order?
    A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
    Q2. What about the lead time?
    A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
    Q3. Do you have any MOQ limit for sample and production order?
    A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
    Q4. How do you ship the goods and how long does it take to arrive?
    A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
    Q5. How to proceed an order for LCD module?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
    Q6. Is it OK to print my logo on the LCD product?
    A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 1 year warranty to our products.
    Q8: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
    Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
