TFT LCD 2.8" Inch All Viewing Angle 240x320 IPS Type TFT LCD With MCU/SPI/RGB Interface

2.8" Inch IPS TFT Display LCD screen DESCRIPTION

SF-TC280B-9750B-N TFT LCD is a 2.8 inch diagonal size, IPS full viewing angle 240xRGBx320, full color TFT LCD display. This module is built in with ILI9341V IC; it supports MCU/SPI/RGB Interface. SF-TC280B-9750B-N model is having module dimension of 50.0 x 69.2 mm and Active area size of 43.2 x 57.6 mm; it integrated ILI9341V controller on module, logic supply voltage range from 1.6V to 3.3V.

SF-TC280B-9750B-N is portrait mode LCD module, if you would like to use it as landscape mode, please contact with us for more technical support. This 2.8”TFT LCD module is featured with 280-350 cd/m2; it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This 2.8" TFT LCD Module works well for signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices.

Quality Management

1. Quality policy

Provide sound quality and deliver goods on time;

To satisfy requirements of customers with continuous improvement

2. EHS policy

To observe laws and regulations and to prevent and control pollution;

To try to reduce emission and conserve and make full use of resources;

To improve environmental protection awareness and continuously improve the environment;

3. Measures adopted

It will make transparent its quality policy and improve employees’ awareness on quality via training and education;

By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;

It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;

Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.

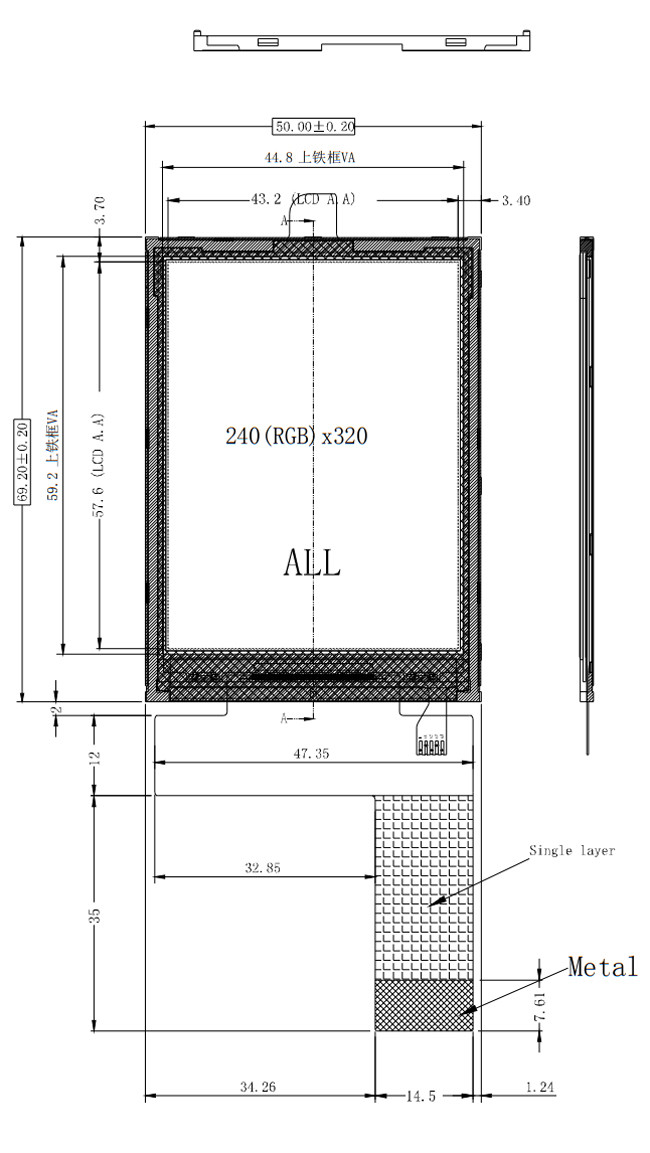

2.8" Inch IPS TFT Display LCD Screen Drawing

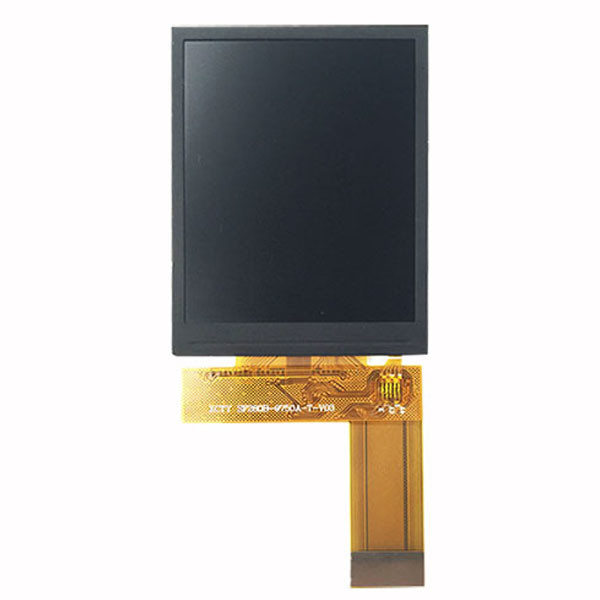

2.8" Inch IPS TFT Display LCD Screen Real Product Image
