Tft Touch Display Module tft Lcd 5" Inch 800*480 RGB Interface With
Pcap
Tft Touch Display Moduletft Description
SAEF 5 inch standard higher resolution TFT LCD model is SF-TC500C-8295A-CT. This TFT LCD display module is a 5 inch diagonal, 800xRGBx480,
full color TN TFT-LCD module. The dimension is between our standard
4.3 inches and standard 5.7 inches TFT modules, but the 8295A-CT is with a better resolution. The resolution of our existing
standard 4.3" is with 480x272 resolution and 5.7" TFT is with
320x240, as to the 8295A-CT is with 800x480 resolution. It is a good option for customers while
designing a new project which request a better resolution or
competitive price.
SF-TC500C-8295A-CT is supporting RBG interface, it is a landscape TFT lcd display
module with capacitive Touch Panel, whose cover glass dimension is
customizable based on customers' various demands.
SF-TC500C-8295A-CT is with 450 cd/m2 (nits) surface brightness,
it's surface luminance can be customized up to 1000 cd/m2 (nits).
| Keywords: | 5 Inch TFT LCD | Outline Dimension: | 120.7(L) X 76.3(W) X 2.8(T) mm |
|---|
| Touch Screen: | Capacitive Touch | Resolution: | 800*480 |
|---|
| Cover Glass: | ODM | Interface: | RGB |
|---|
| Connection: | Plugging / ZIF | Surface Luminance: | 450 Cd/m2 |
|---|
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
|---|
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks
for sample remaking. 4-6 wks for mass production. For design-in
products, 2-3 days for counter drawing proposal; 2 wks for sample
making at drawing approval; 5-6 wks for trial-run/mass production
at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass
production MOQ is normally 1K/lot. We support qty lower than MP MOQ
for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make
samples with your logo for your sample test and approval. At sample
approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
5 inch TFT Touch Display Module Drawing

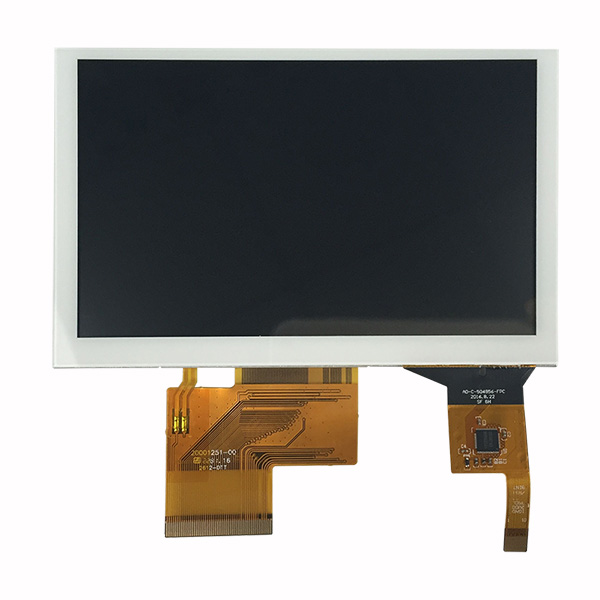

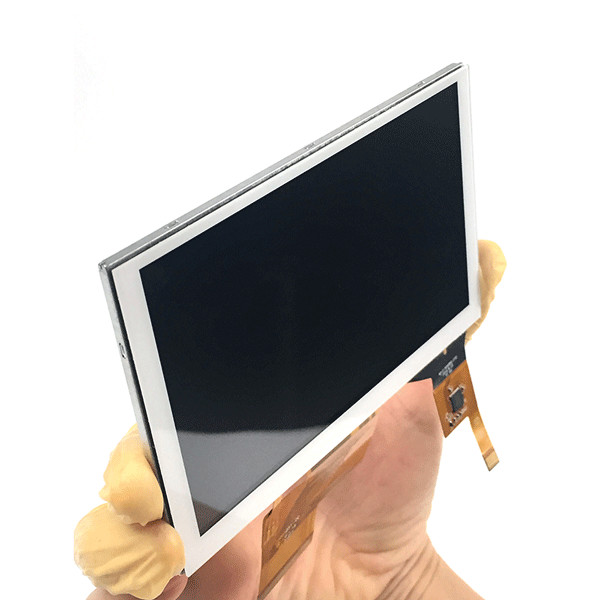

5 inch TFT Touch Display Module Real Product Image
