Passive OLED Display 0.96" Inch 128x64 Graphics SSD1306 White Front Screen

0.96" Inch OLED Graphic Screen Product Introduction

SF-OS96-12864-03 model is a 0.96 inch 128x64 COG OLED display module. This graphic display is built-in with SSD1306 IC; it can communicate via 6800/8080 interface, 4 wire serial interface, I2C interface. the power supply voltage for logic 2.8V (typical value), driving duty 1/64. SF-OS96-12864-03 OLED display is based on a chip-on-glass COG technology; therefore it is very thin, only 1.40 mm in depth. This module is lightweight, low power, and very thin which is suitable for wall/meter devices, home applications, POS systems, Cloud/IoT systems, handheld instruments, intelligent technology devices, energy systems, communication systems, medical devices, etc. SF-OS96-12864-03 module can be operated at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

This 0.96-inch OLED display has a faster response time of "10 microseconds at +25 °C".

This OLED 0.96 inch product has an infinite viewing angle "up to 175 degrees"
This 0.96" IIC OLED product features very thin thickness

This 0.96 inch white OLED product does not need to be backlit when displayed, and it is self-illuminating
This 0.96 inch mono OLED product has high brightness and this product has a contrast ratio of up to 2000:1.
This 0.96 OLED product has an ultra-wide operating temperature range "-40 °C ~ 85 °C"
This SPI 0.96 inch OLEDproduct has lower power consumption - reducing CO2 emissions

0.96" Inch OLED Graphics Screen Product Drawing

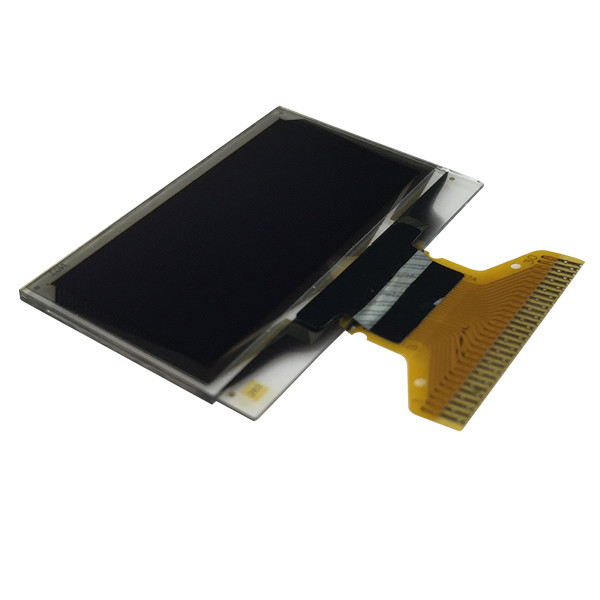

0.96" Inch OLED Graphics Screen Product Image

Factory Facilities and Certificates

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.

Q2. What about the lead time?

A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.

Q3. Do you have any MOQ limit for sample and production order?

A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LCD module?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the LCD product?

A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
