SFOM091YZ4-12832WB-01Specification .pdf

0.91" OLED 4pin, 128x32 OLED Display COG+PCB Description

SFOM091YZ4-12832WB-01 has a PCB board on module; it's diagonal size 0.91 inch, made of 128x32 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications.

1. 0.91 inch mini OLED display with 128X64 resolution and SSD1306 chipset
2. Ultra-low power consumption: full screen lighting 0.08w
3. Four mounting holes for easy installation
4. Interface type: SPI (can be changed to IIC)
5. Support a variety of control chips: fully compatible with Arduino 51 series, msp430 series, stm32/2 CSR IC, etc
6. Power Voltage: DC 3V - 5V

7. The module is great for smart home application, medical device, smart control, meter, etc

Features

Why Choose us

1．We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2．Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3．Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4．Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

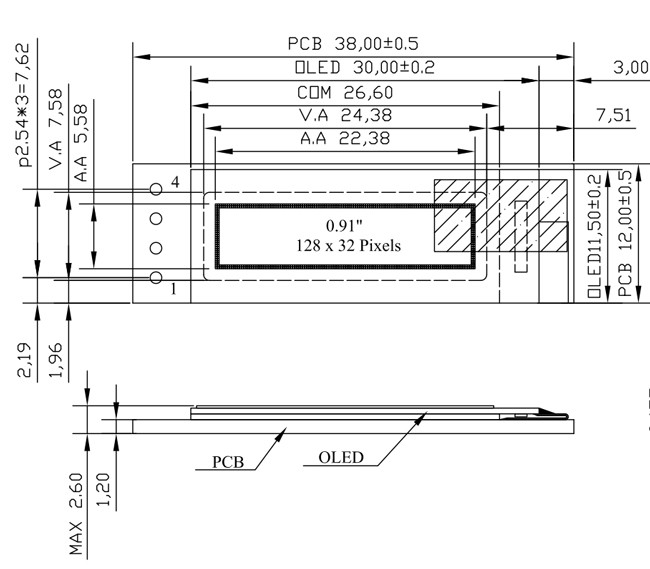

0.91" OLED 4pin, 128x32 OLED Display COG+PCB Drawing

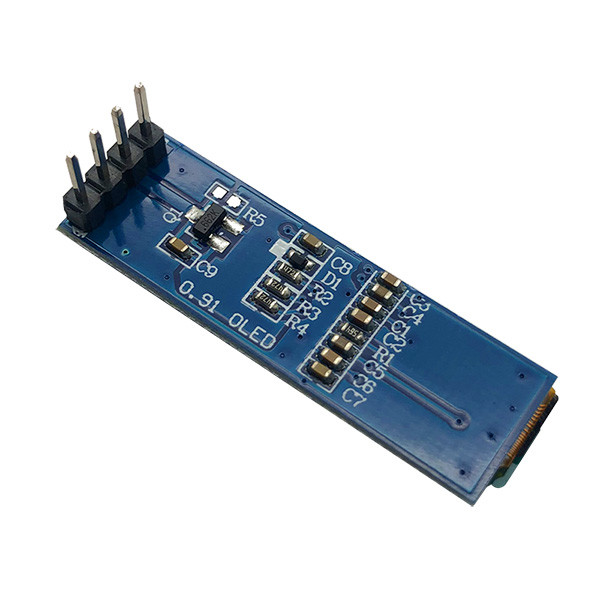

0.91" OLED 4pin, 128x32 OLED Display COG+PCB Real Product Image
