2.29" Inch TFT LCD 344x476 High PPI IPS Display ST77903 8bits RGB Interface

High PPI 2.29 TFT, 2.29 inch IPS LCD Description

SAEF TECHNOLOGY SF-TO229AS-8982A-N TFT LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. PPI refers to Pixel Per Inch, the resolution of a 2.29”contains 344(RGB)X476 dots (244 horizontal by 476 vertical pixels array). and can display up to 262k color. SF-TO229AS-8982A-N the TFT LCD model supports 8 bits RGB interface; the supply voltage (VCC) of driving LCD panel is from is 2.4V to 3.3V. Typical value is 2.8V. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

SF-TO229AS-8982A-N is an IPS-LCD type TFT with brightness 750 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Why Choose us

1. We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2. Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3. Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4. Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

Quality Management

1. Quality policy

Provide sound quality and deliver goods on time;

To satisfy requirements of customers with continuous improvement

2. EHS policy

To observe laws and regulations and to prevent and control pollution;

To try to reduce emission and conserve and make full use of resources;

To improve environmental protection awareness and continuously improve the environment;

3. Measures adopted

It will make transparent its quality policy and improve employees’ awareness on quality via training and education;

By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;

It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;

Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.

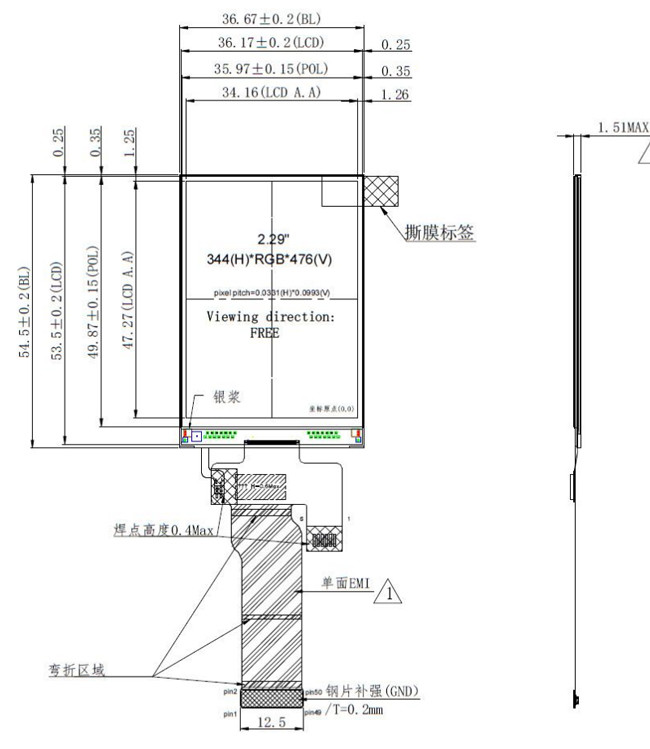

High PPI 2.29 TFT, 2.29 inch IPS LCD Drawing

High PPI 2.29 TFT, 2.29 inch IPS LCD Real Product Image
