3.5 Inch Medical/Industrial LCD Touch Screen HVGA MCU Interface
Product Introduction
The SF-TC350H-9496G-T LCD touch screen module is a 3.5 inch
diagonal size HVGA portrait mode 320x480 full color display, this
3.5 inch LCD touch screen uses resistive touch screen and can be
designed as PCAP, the part number is SF-TC350H-9496G-CT. This
3.5-inch TFT display module supports MCU 16-bit and 18-bit
interfaces. The module size of the SF-TC350H-9496G-T LCD touch
monitor is 53.76x84.18 mm, and the active area size is 48.96x73.44
mm.
The SF-TC350H-9496G-T LCD touch screen monitor integrates a ILI9488
controller on the module with a logic supply voltage range of 2.6V
to 3.3V. The surface brightness of the SF-TC350H-9496G-T is 420
cd/m2 (nits). If you want to use it as a portrait mode or adjust
the brightness, please contact us for more technical support. The
surface brightness can reach 1000 cd/m2 (nits). This 3.5-inch
medical/industrial grade LCD model has been widely used in embedded
systems, automation, GPS, medical devices, industrial equipment,
security equipment, which require TFT to display high-quality and
color images.
| Product: | 3.5" TFT Touch Screen |
| Resolution: | 320x480 HVGA |
| Touch Screen: | With Resistive Touch ( PCAP Optional) |
| Driver IC: | ILI9488 Or Equivalent |
| Active area: | 48.96x73.44 (mm) |
| Outline Dim.: | 53.76x84.18x3.35 (mm) |
| Cover Glass Dimension: | Customizable |
| Interface: | MCU 18 / 16 Bits (customizable) |
| Pin Number: | 39 Pins (can Be Customized) |
| Backlight Type: | White LED |
| Viewing Direction: | 12 O'clock |
| Connection: | Plugging (can Be Customized) |
| Surface Luminance: | 420 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
3.5 Inch Medical/Industrial Grade LCD Touch Screen HVGA MCU
Interface Product Drawing
(with RTP Version)
with PCAP Version ( SF-TC350H-9496G-CT )

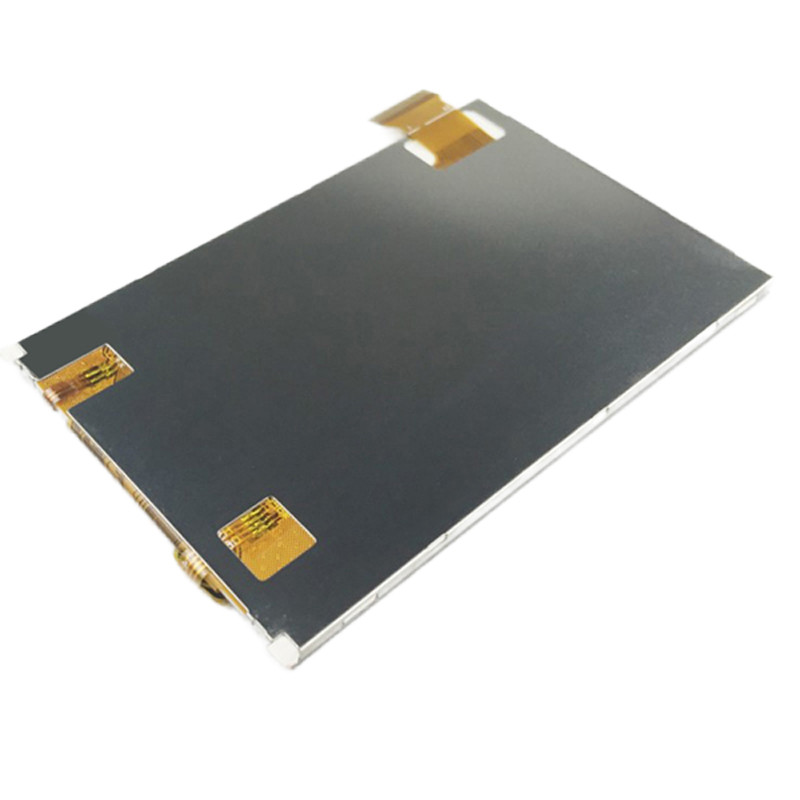

3.5 Inch Medical/Industrial Grade LCD Touch Screen HVGA MCU
Interface Product Image
