4.3 Inch 480x800 IPS TFT Display Screen HX8369-A01 Mipi Interface
45 Pins with Resistive Touch Panel

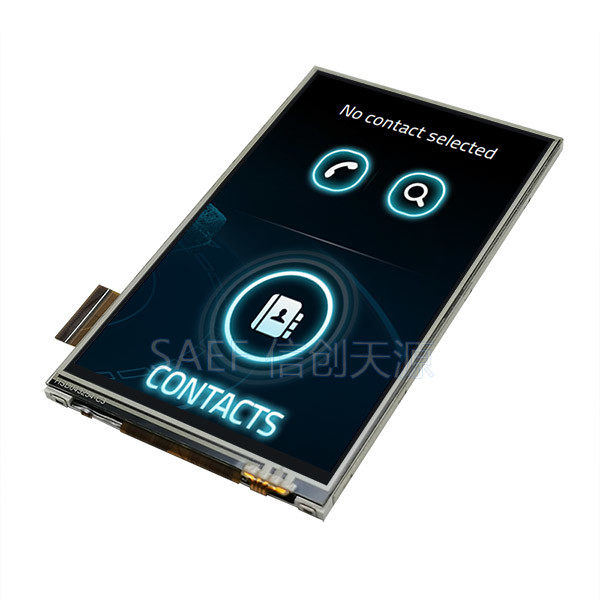

4.3 inch MIPI TFT Screen 480x800 IPS LCD Display Product
Description
SAEF TECHNOLOGY SF-TC430S-8671A-T is a 4.3 inch full TFT-LCD
display with 480x800 resolution (480 horizontal by 800 vertical
pixels array). The supply voltage (VCC) of driving LCD panel is
from is 2.6V to 3.3V, typical voltage is 2.8V. and supporting MIPI
interface. It can be used in embedded systems, automation, GPS,
medical equipment, industrial device, security equipment which
requires TFT display in high quality and colorful image.
SF-TC430S-8671A-T is a IPS-LCD type TFT with brightness 200 cd/m2
(typical value) for the application requiring brighter
backlighting, pls contact our sales. the surface brightness can be
customized to be 1000 cd/m2.
SF-TC430S-8671A-T can be operating at temperatures from -20℃ to
+70℃; its storage temperatures range from -30℃ to +80℃.
| Product: | 4.3 Inch IPS TFT LCD | Resolution: | 480x800 Pixels |
|---|
| Viewing Direction: | All Viewing Angles (IPS) | Touch Screen: | With Resistive Touch Screen (Optional) |
|---|
| Interface: | MIPI Interface ( Customizable ) | Pin Number: | 45 Pins ( Customizable ) |
|---|
| Connection: | Plugging ( Customizable ) | Surface Luminance: | 200 Cd/m2 ( Customizable ) |
|---|
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
|---|

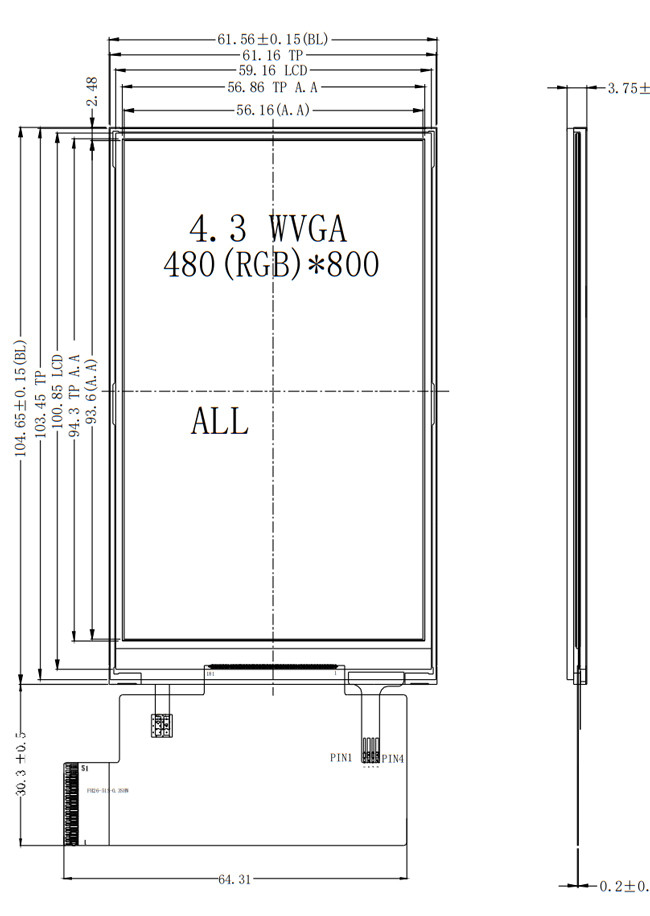

4.3 inch MIPI TFT Screen 480x800 IPS LCD Display Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | CN | I/O | DSI-CLK-clock signals |
| 3 | CP | I/O | DSI-CLK+clock signals |
| 4 | GND | I | Ground |
| 5 | D0N | I/O | DSI-D0-clock signals |
| 6 | D0P | I/O | DSI-D0+clock signals |
| 7 | GND | I | Ground |
| 8 | D1P | I/O | DSI-D1+clock signals |
| 9 | D1N | I/O | DSI-D1-clock signals |
| 10 | GND | I | Ground |
| 11 | RESET | I | LCM Reset input signal |
| 12 | TE | I | Tearing effect output |
| 13 | VCI | I | Power Supply 2.8V |
| 14 | IOVCC | I | Power Supply 1.8V-2.8V |
| 15 | GND | I | Ground |
| 16 | A | O | LED + |
| 17 | K | O | LED – |
| 18 | GND | I | Ground |
| 19 | YU | I | Touch Panel Pin |
| 20 | XL | I | Touch Panel Pin |
| 21 | YD | I | Touch Panel Pin |
| 22 | XR | I | Touch Panel Pin |
| 23 | GND | I | Ground |
| 24-51 | NC | I | – |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V |
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Condition | Note |
| Supply Voltage | Vf | – | 25.6 | – | V | If=20 mA | – |
| Supply Current | If | – | 20 | – | mA | – | – |
| Reverse Voltage | Vr | – | – | 5 | V | – | |
| Power dissipation | Pd | – | – | – | mW | – | |
| Luminous Intensity for LCM |
– | – | 200 | – | Cd/m2 | If=20mA | – |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA | – |
| LED life time | Hr | 50000 | – | – | Hour | – | – |
| Backlight Color | White |

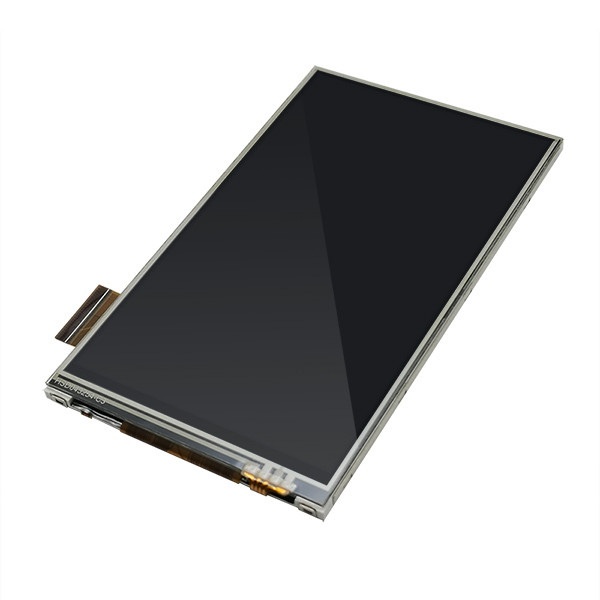

4.3 inch MIPI TFT Screen 480x800 IPS LCD Display Real Product Image
